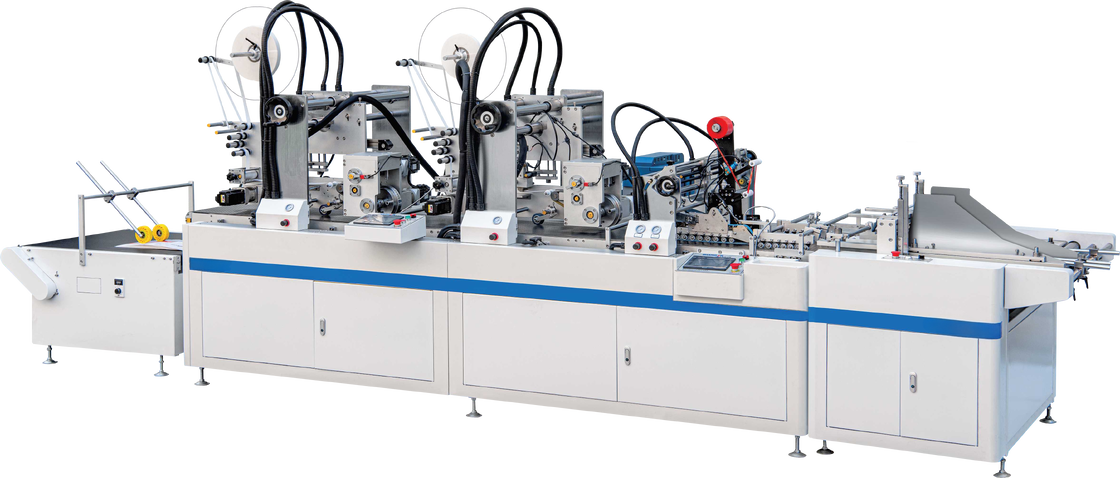

LY-900GJ Automatic Scraping Glue Sticking
Release Paper Machine
For envelope bags, document bags, zipper boxes, aircraft boxes andother products, scraping and sticking release paper, easy to tear tape.
Advantages:
1. The cost of scraping pressure-sensitive adhesive is saved.
2. The new squeegee technology solves the problem of uneven squeegee caused by traditional squeegee
to the product due to product deformation and other factors.
3. The speed is fast, and the line speed can be stabilized up to 60 m/min.
4. It can be pasted with easy-tear tape and scraping at one time.

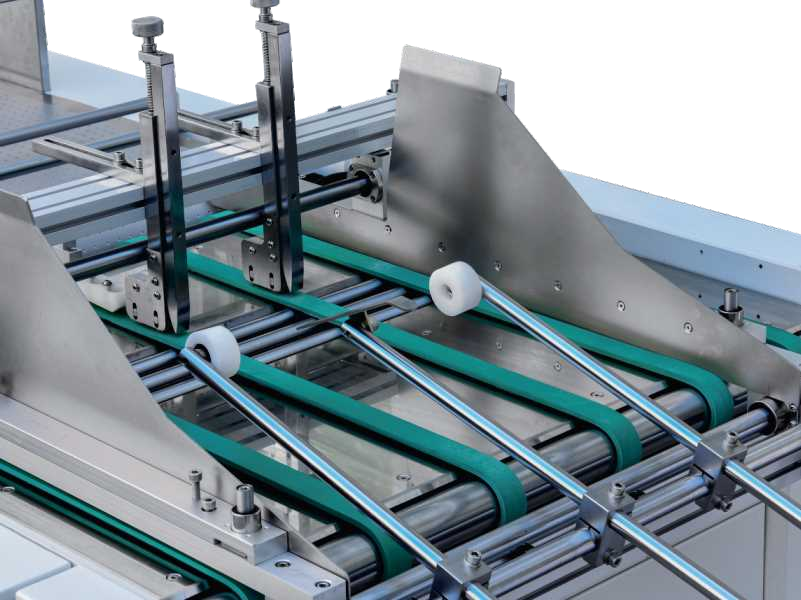

5. Automatic feeding, the paper feeding part adopts friction feeding method to prevent scratches.
6. Optical fiber electric eye and servo positioning, accurate positioning.
7. A new type of scraping process, scraping the pressure-sensitive adhesive on the release paper, and applying the wind wheel to transfer the release paper with the pressure-sensitive adhesive to the product.
8. PLC control, man-machine interface, parameter touch screen setting.
9. The delivery part adopts the continuous box accumulation method.

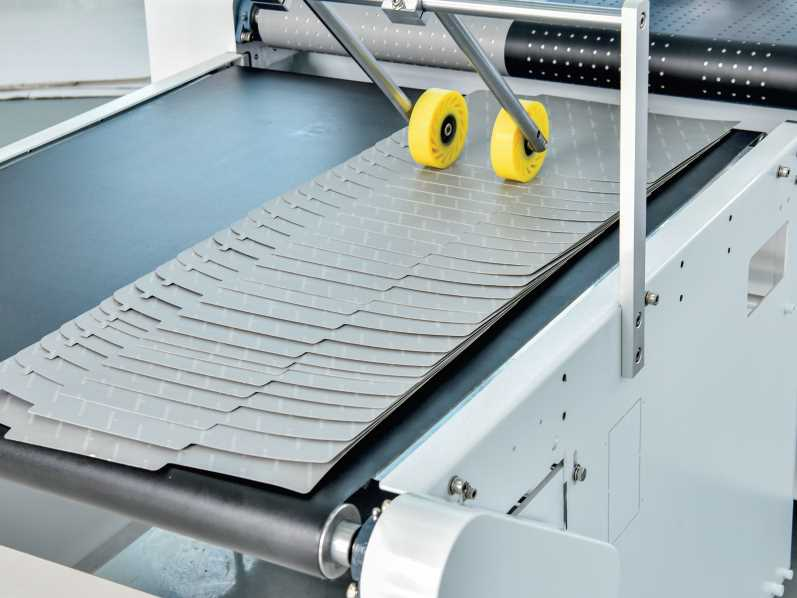

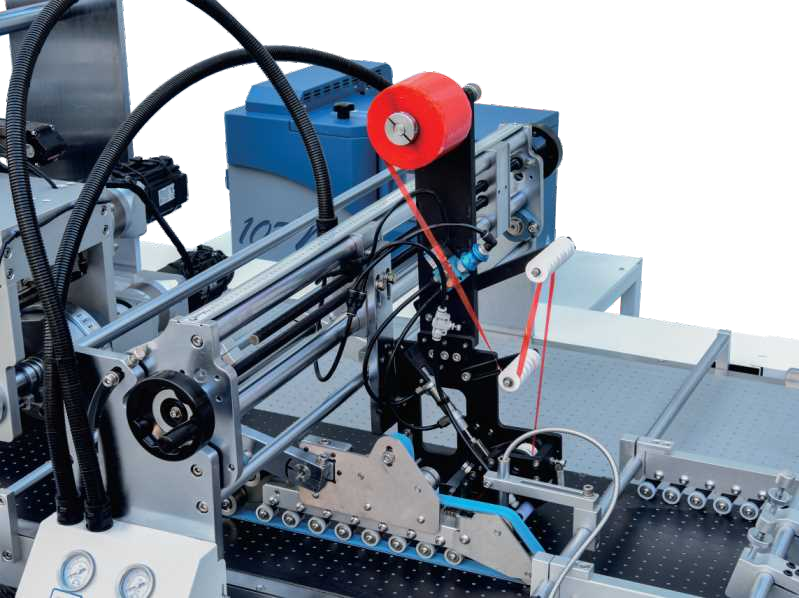

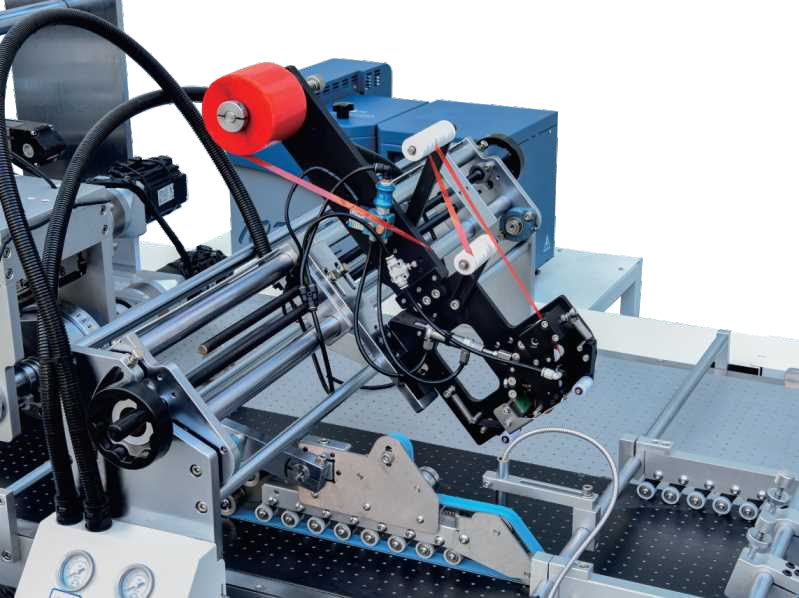

Details:
Technical Parameters:
| Model |
LY-900GJ |
| Max sheet size |
900*860mm |
| Min sheet size |
200*200mm |
| Squeegee width |
8-40mm |
| Shortest squeegee length |
100mm |
| Speed: |
40-90Pcs/min |
| Power/Voltage |
10Kw/AC380V |
| Accuracy |
±1mm |
| Machine dimension |
5920*1370*1900mm |
| Weight |
1200kg |
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Workshop
Packing and Shipping
FAQ:
1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.What is the production time while placing order?---- Within 7-30 workdays.
3.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
