Advantages:
1. Top-Suction Flyer Feeder for Material Supply: Utilizes a top-suction flyer feeder to solve issues with feeding thin paper and prevent surface scratches.
2. Skew Correction Function: Ensures that paper feeding remains straight without skewing.
3. Rotary Material Replacement for Sticker Heads: Enables quick double-sided tape replacement within 30 seconds,enhancing efficiency.
4. Servo Motor with Planetary Gearbox for Main Drive: Provides higher precision in adhesive application and easy size adjustment.
5. Precise Adjustment of Sticker Head Offset:Screw rods,handles,and scales allow for accurate and easy adjustment of the sticker head's position.
6. Human-Machine Interface(HMI)with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface,simplifying operation.
7. Strong Suction on Main Conveyor Belt: The main conveyor belt features strong suction,ensuring smoother and more stable paper handling during the adhesive application process.
8. Multi-Segment Adhesive Application Capability: Supports segmented adhesive application.
9.PLC, Weinview touch screen, Leisai servo motor, Zhuolan planetary reducer, Omron amplifier fiber,Festo cylinder, MAC solenoid valve.

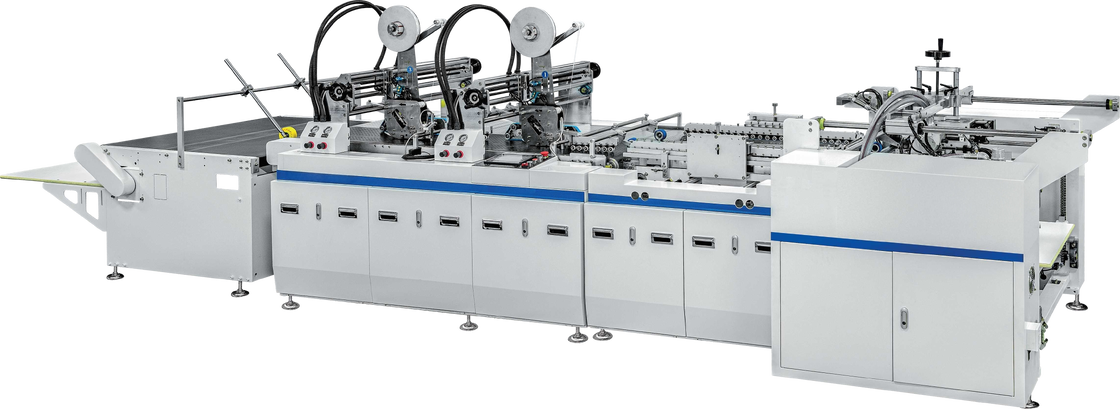

This machine is used for applying long strips of double-sided tape to the surfaces of large sheets of cardstock, coated paper, posters, etc.
Details:

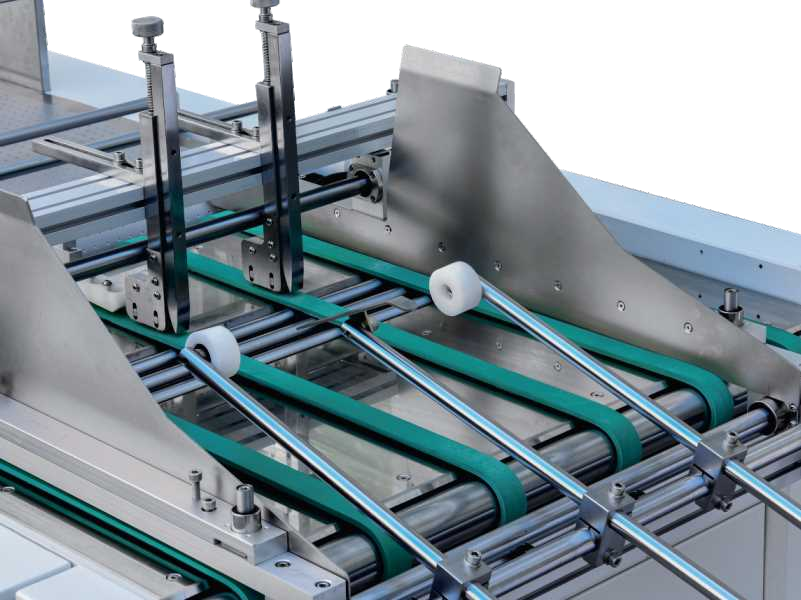

Top-Suction Feeder Bead Guiding Device For stable material pickup For precise web alignment

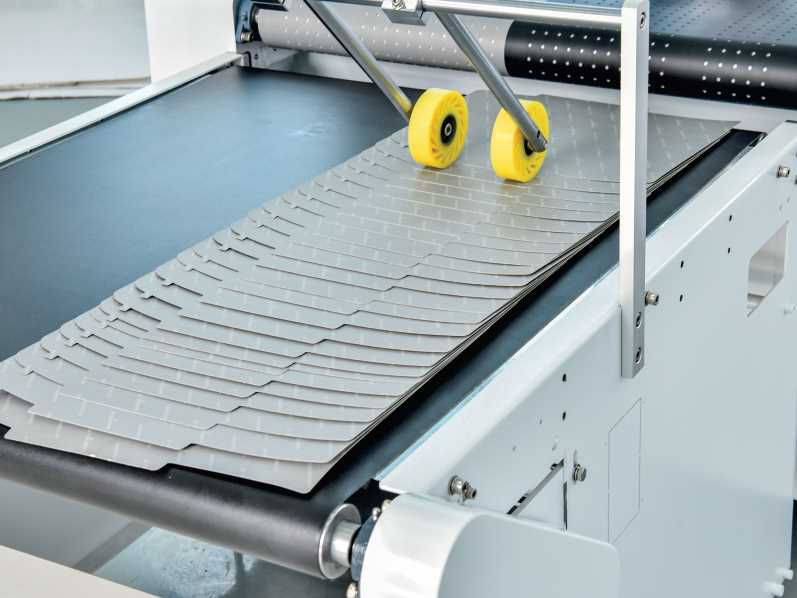

45° One-Key Swivel Unloading Device Shingle-Style Stacking Unit
For quick and efficient changeover For neat overlapping output
Technical Parameters:
| Model |
LY-900FD |
| Max.sheet size |
900*860mm |
| Min. sheet size |
300*300mm |
| Width of Tape size |
5-35mm (Optional: 8-70mm) |
| Pasting head |
2pcs (More options available) |
| Product thickness |
≥100GSM-2mm |
| Switch Double-sided Tape Time |
≤ 30 seconds |
| Speed |
40-90m/min |
| Accuracy |
±1mm |
| Power/Voltage |
8KW / AC380V |
| Machine Dimension |
5500*1540*1650mm |
| Weight |
1500kg |
