Name: LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Automatic Paper Feeding System Two Tape RollsHigh Running Speed for Mass Packaging
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-900FD
Price: 135,006.00 USD
Availability: InStock

Home > products > Tape Applicator Machine >

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Automatic Paper Feeding System Two Tape RollsHigh Running Speed for Mass Packaging

fully automatic feeder tape machine

double-sided tape applicator machine

high-speed paper feeding system

Place of Origin:

China

Brand Name:

Lishunyuan

Model Number:

LY-900FD

Document:

LY-900FD Fully Automatic Fe...ne.pdf

Request A Quote

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Automatic Paper Feeding System Two Tape RollsHigh Running Speed for Mass Packaging

Product Details

Model:

LY-900FD

Max.sheet Size:

900*860mm

Min. Sheet Size:

300*300mm

Width Of Tape Size:

5-35mm (Optionally Available: 8-70mm)

Pasting Head:

2pcs (optional Extra Heads Available)

Product Thickness:

≥100GSM-2mm

Switch Double-sided Tape Time:

≤ 30 Seconds

Speed:

40-90m/min

Accuracy:

±1mm

Power/Voltage:

8KW / AC380V

Machine Dimension:

5500*1540*1650mm

Weight:

1500kg

Highlight:

fully automatic feeder tape machine

double-sided tape applicator machine

high-speed paper feeding system

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiate

Packaging Details

Film and plywood crate

Delivery Time

15-20days

Payment Terms

T/T

Supply Ability

15sets/month

LY 800ACT T Fully Automatic Double Sided Tape Application Machine With Alignment Adjustment

Get Best Price

LY-900HCT Semi-automatic Double-side Adhesive Tape Pasting Machine Tape Applicator Tape Pasting Machine

Get Best Price

LY-900GJ Automatic Scraping Glue Sticking Release Paper Machine Scraping Glue Machine Gift Box Making Machine

Get Best Price

LY-1500TMJ Automatic Carton Transparent Tape Pasting Machine Box Taping Machine Automatic Tape Pasting Machine

Get Best Price

13798714062

vanessa@dglyjx.com

86-769-23174590

Contact Now

Product Description

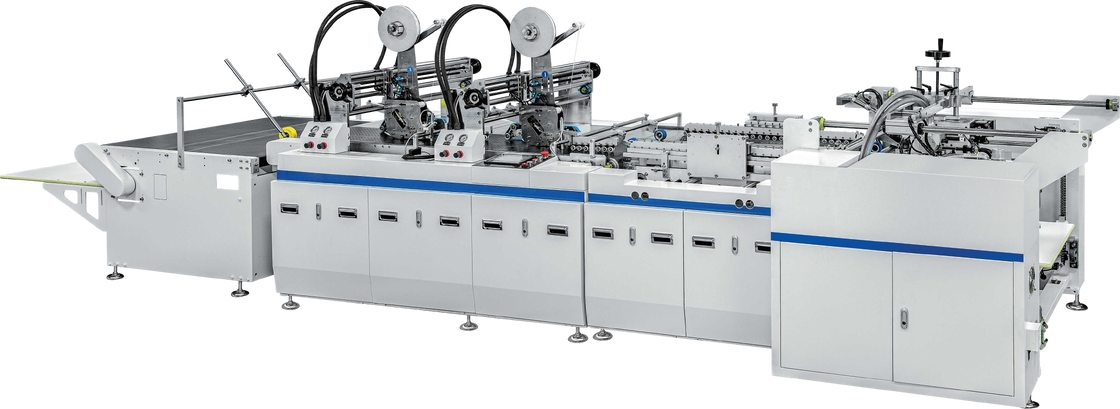

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine

For applying long strips of double-sided tape to the surfaces of large sheets of cardstock, coated paper, posters, etc.

Key Advantages

Top-Suction Flyer Feeder for Material Supply: Utilizes a top-suction flyer feeder to solve issues with feeding thin paper and prevent surface scratches.
Skew Correction Function: Ensures that paper feeding remains straight without skewing.

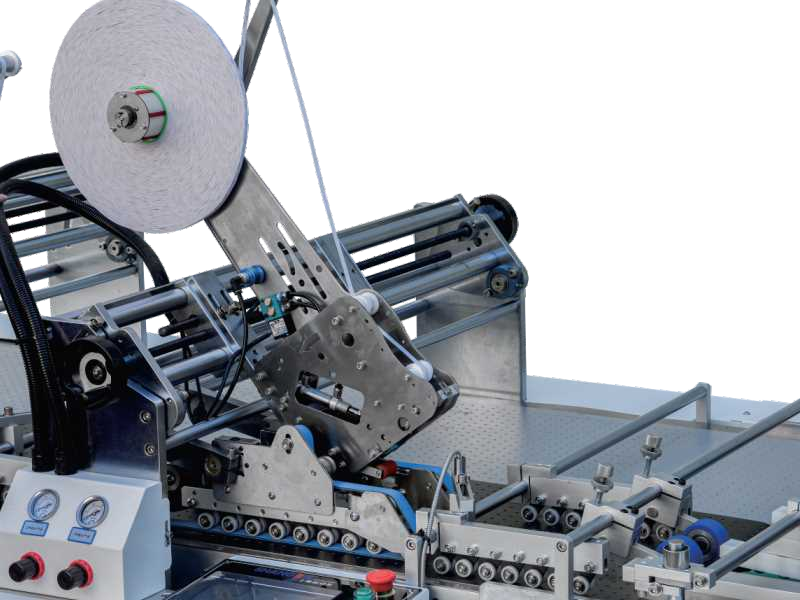

Rotary Material Replacement for Sticker Heads: Enables quick double-sided tape replacement within 30 seconds, enhancing efficiency.
Servo Motor with Planetary Gearbox for Main Drive: Provides higher precision in adhesive application and easy size adjustment.

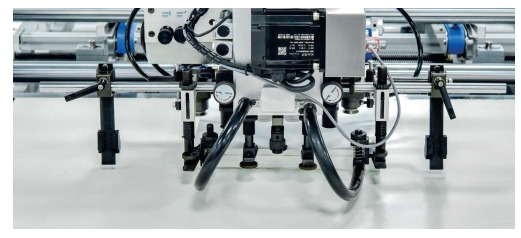

Precise Adjustment of Sticker Head Offset: Screw rods, handles, and scales allow for accurate and easy adjustment of the sticker head's position.
Human-Machine Interface (HMI) with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface, simplifying operation.

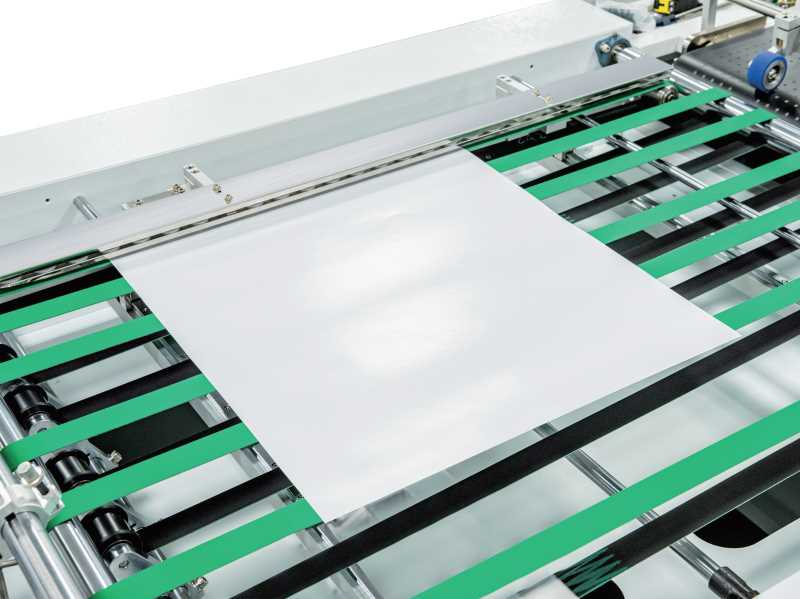

Strong Suction on Main Conveyor Belt: The main conveyor belt features strong suction, ensuring smoother and more stable paper handling during the adhesive application process.
Multi-Segment Adhesive Application Capability: Supports segmented adhesive application.

Detailed Features

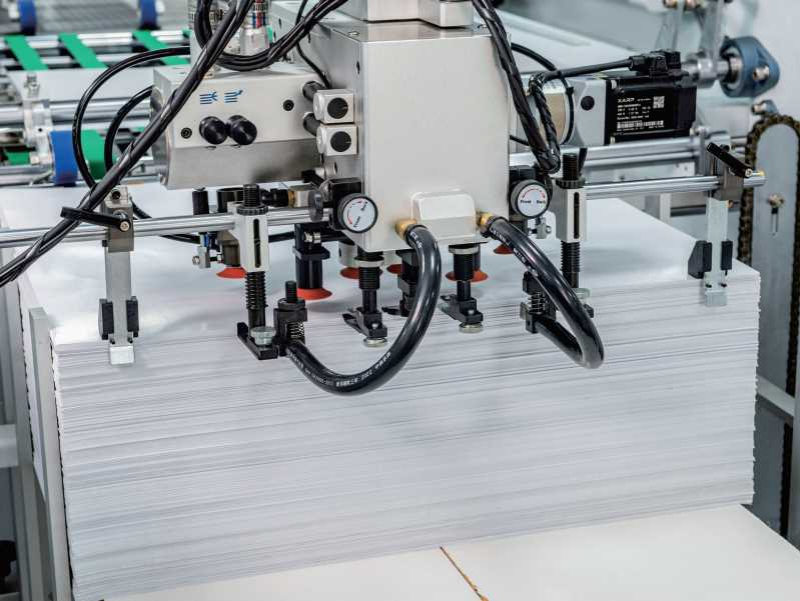

Top-Suction Feeder - For stable material pickup

Bead Guiding Device - For precise web alignment

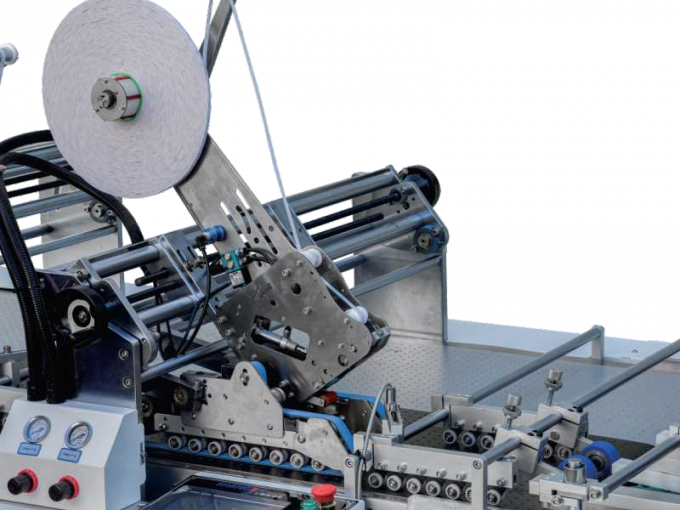

45° One-Key Swivel Unloading Device - For quick and efficient changeover

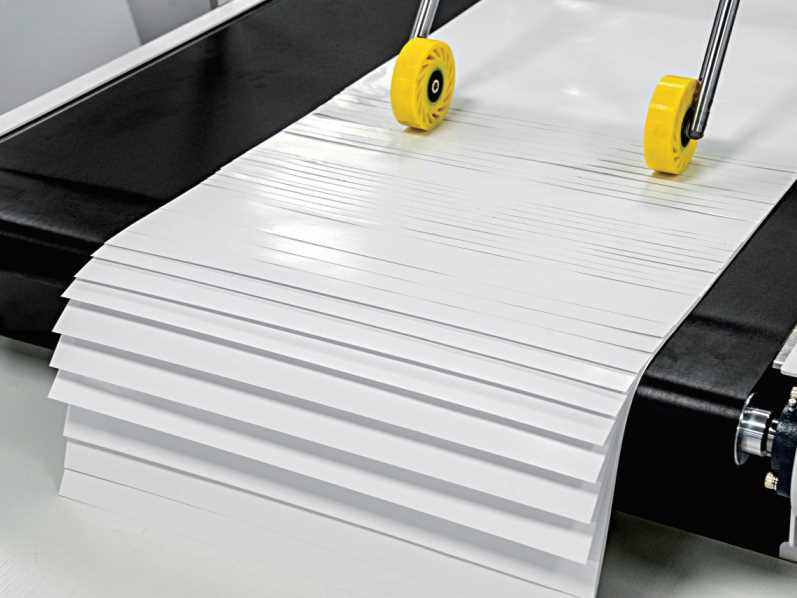

Shingle-Style Stacking Unit - For neat overlapping output

Technical Parameters

Model	LY-900FD
Max. sheet size	900 × 860mm
Min. sheet size	300 × 300mm
Width of Tape size	5-35mm (Optionally available: 8-70mm)
Pasting head	2pcs (optional extra heads available)
Product thickness	≥100GSM-2mm
Switch Double-sided Tape Time	≤ 30 seconds
Speed	40-90m/min
Accuracy	±1mm
Power/Voltage	8KW / AC380V
Machine Dimension	5500 × 1540 × 1650mm
Weight	1500kg

Company Introduction

LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters. After 20 years of development, the company has formed a complete sales network and after-sales service system. Our products are sold throughout China and exported to Europe, the United States, Southeast Asia, South America, Middle East, Africa and more than 40 countries and regions.

Workshop

Packing and Shipping

Frequently Asked Questions

What about machine warranty?

1 year warranty including free machine parts replacement (consumables are not included).

What is the production time while placing order?

Within 7-30 workdays.

Does the packing strong?

Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
