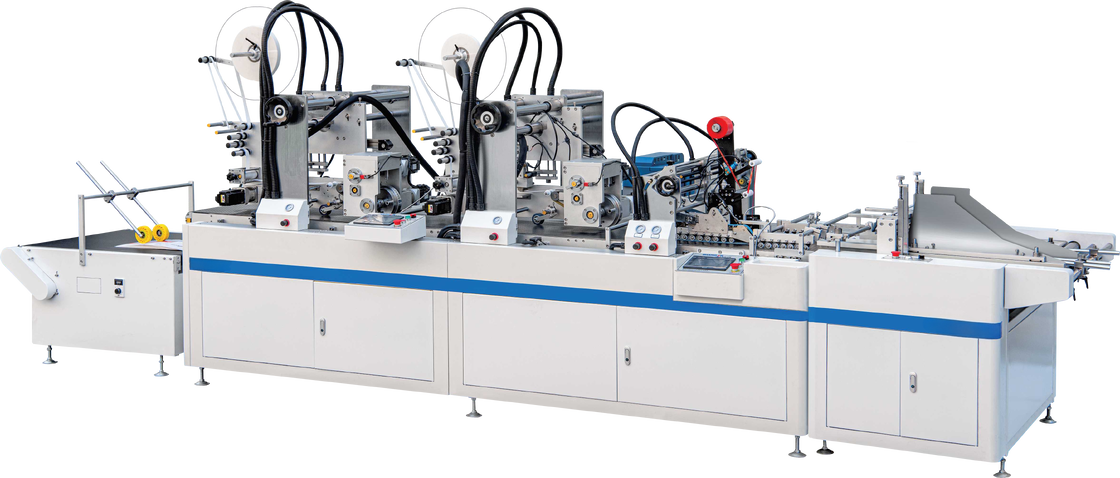

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine
Advantages:
1. Top-Suction Flyer Feeder for Material Supply: Utilizes a top-suction flyer feeder to solve issues with feeding thin paper and prevent surface scratches.
2. Skew Correction Function: Ensures that paper feeding remains straight without skewing.
3. Rotary Material Replacement for Sticker Heads: Enables quick double-sided tape replacement within 30 seconds,enhancing efficiency.
4. Servo Motor with Planetary Gearbox for Main Drive: Provides higher precision in adhesive application and easy size adjustment.
5. Precise Adjustment of Sticker Head Offset:Screw rods,handles,and scales allow for accurate and easy adjustment of the sticker head's position.
6. Human-Machine Interface(HMI)with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface,simplifying operation.
7. Strong Suction on Main Conveyor Belt: The main conveyor belt features strong suction,ensuring smoother and more stable paper handling during the adhesive application process.
8. Multi-Segment Adhesive Application Capability: Supports segmented adhesive application.
This machine is used for applying long strips of double-sided tape to the surfaces of large sheets of cardstock, coated paper,posters,etc.
Details:
|
|
|
|
|
|
|
Top-Suction Feeder
For stable material pickup
|
Bead Guiding Device
For precise web alignment
|
|
|
|
|
|
|
|
|
|
|

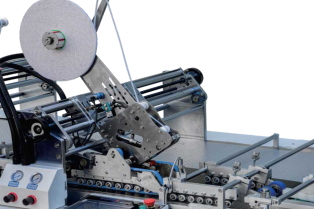

45° One-Key Swivel Unloading Device
For quick and efficient changeover
|
Shingle-Style Stacking Unit
For neat overlapping output
|
Configure:
Weinview touch screen, Leisai servo motor, Zhuolan planetary reducer, Omron amplifier fiber,Festo cylinder, MAC solenoid valve.
Technical Parameters:
|
Model
|
LY-900FD
|
|
Max.sheet size
|
900*860mm
|
|
Min. sheet size
|
300*300mm
|
|
Width of Tape size
|
5-35mm (Optionally available: 8-70mm)
|
|
Pasting head
|
2pcs (optional extra heads available)
|
|
Product thickness
|
≥100GSM-2mm
|
|
Switch Double-sided Tape Time
|
≤ 30 seconds
|
|
Speed
|
40-90m/min
|
|
Accuracy
|
±1mm
|
|
Power/Voltage
|
8KW / AC380V
|
|
Machine Dimension
|
5500*1540*1650mm
|
|
Weight
|
1500kg
|
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
