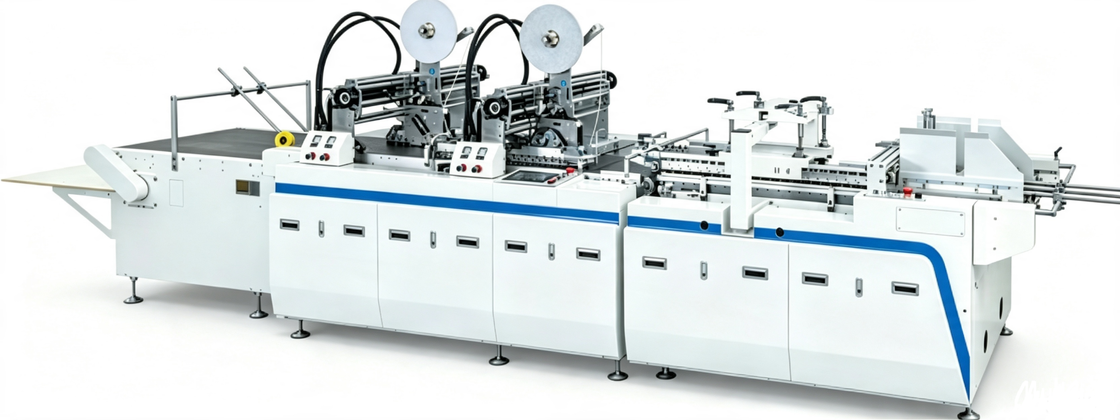

LY-800ACT-T Fully Automatic Double-Sided Tape Application Machine
with Alignment Adjustment

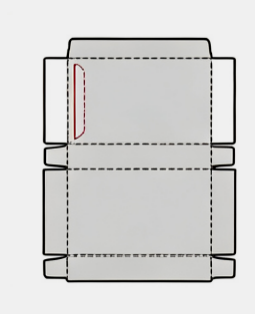

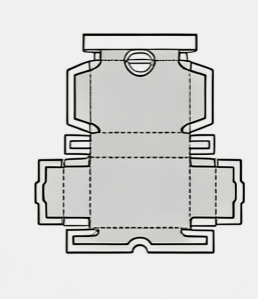

This Machine is used for sticking long double-sided tape and easy-to-tear strips on the surface of cardboard, card boxes,cartons, envelope bags, document bags, etc.
Advantages:
1. Automatic Feeding with Friction Paper Feeder: The feeding structure uses a friction paper feeding method, ensuring efficient and smooth paper output.
2. Skew Correction Function: The machine features a correction function to ensure that paper feeding remains straight without skewing.
3. Rotary Material Replacement for Sticker Heads: The sticker heads have a rotary changeover function, enabling quick double-sided tape replacement within 30 seconds, enhancing efficiency.
4. Fiber Optic Sensing with Servo Positioning: Fiber optic induction combined with servo positioning ensures precise placement of double-sided adhesive.
5. Precise Adjustment of Sticker Head Offset: Screw rods, handles, and scales allow for accurate and easy adjustment of the sticker head's position.
6. Human-Machine Interface (HMI) with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface, simplifying operation.
7. Strong Suction on Main Conveyor Belt: The main conveyor belt has a strong suction function, ensuring smoother and more stable paper handling during the adhesive application process. Multi-Segment Adhesive
8. Application: Supports segmented adhesive application with a minimum spacing of 10mm between each segment.
9. Weinview touch screen, Leisai servo motor, Zhuolan planetary reducer, Omron amplifier fiber, Festo cylinder, MAC solenoid valve.
Details:
Full paper feeding section with air suction device Deviation correction device
45° one-click rotary film changing device Fish-scale Stacking Paper Collecting Device
Technical Parameters:
|
Model
|
LY-800ACT-T
|
|
Max.sheet size
|
900*860mm
|
|
Min. sheet size
|
100*40mm
|
|
Width of Tape size
|
5–35mm (Optional: 8–70mm)
|
|
Pasting head
|
2pcs (More options available)
|
|
Speed
|
40-90m/min
|
|
Accuracy
|
±1mm
|
|
Power/Voltage
|
4Kw/AC220V
|
|
Machine Dimension
|
5500*1540*1650mm
|
|
Weight
|
1500kg
|
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
Packing and Shipping:
