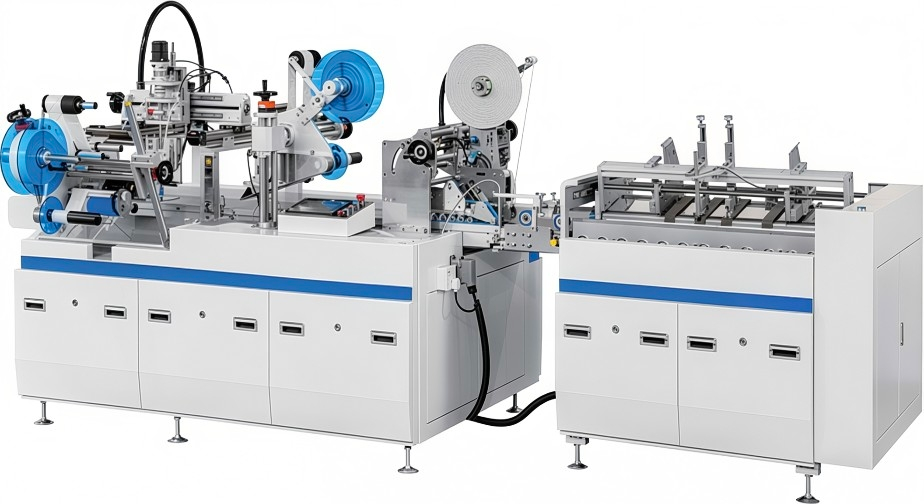

LY-600SFT-3 Multi-function Double-Sided Tape Application
Machine for Folding Boxes
Advantages:
1. Can Apply One Long Double-Sided Tape and Two Single Triangular
2. Including One Long Double-Sided Tape Applicator Head,a Direct Application Head,and One Set of
Rotating Application Mechanism.
3. Fiber Optic Sensing with Servo Positioning Ensures Precise Double-Sided Tape Placement.
4. Vacuum suction on the conveyor belt to transfer stabler,and accurancy position.
5. The human-machine interface and touch screen make the process of parameter settings much easier.
6. Automatic feeding,easy operating,high efficiency and speed.
7. Weinview touch screen. Delta servo motor, Zhuolan planetary reducer, Omron amplifier fiber, Festo cylinder, MAC solenoid valve.

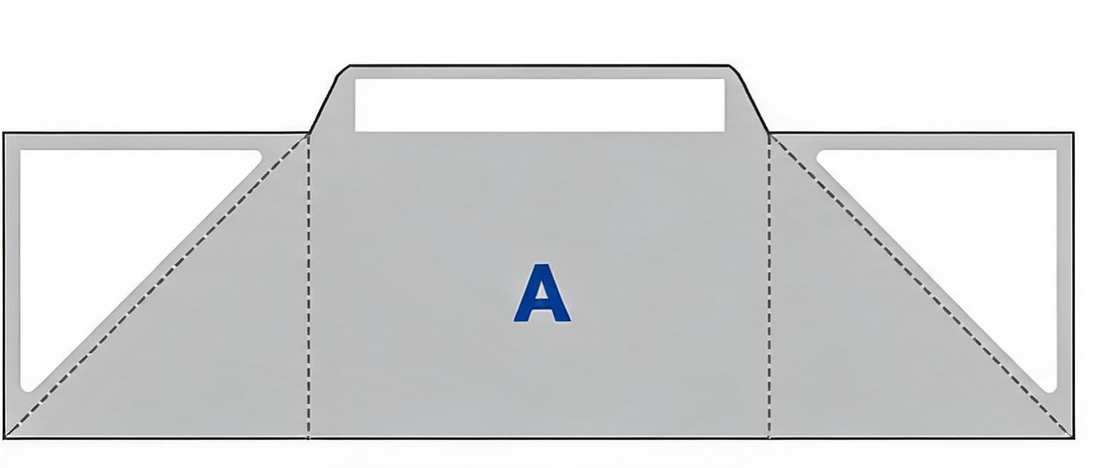

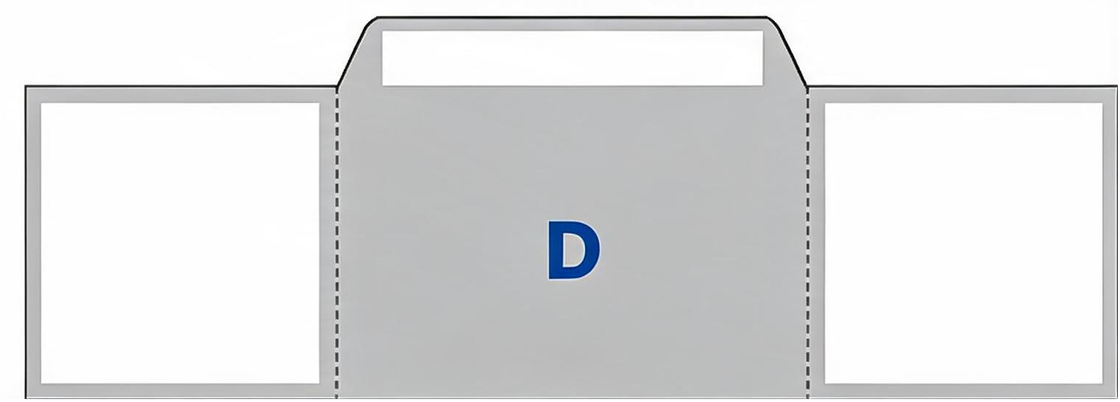

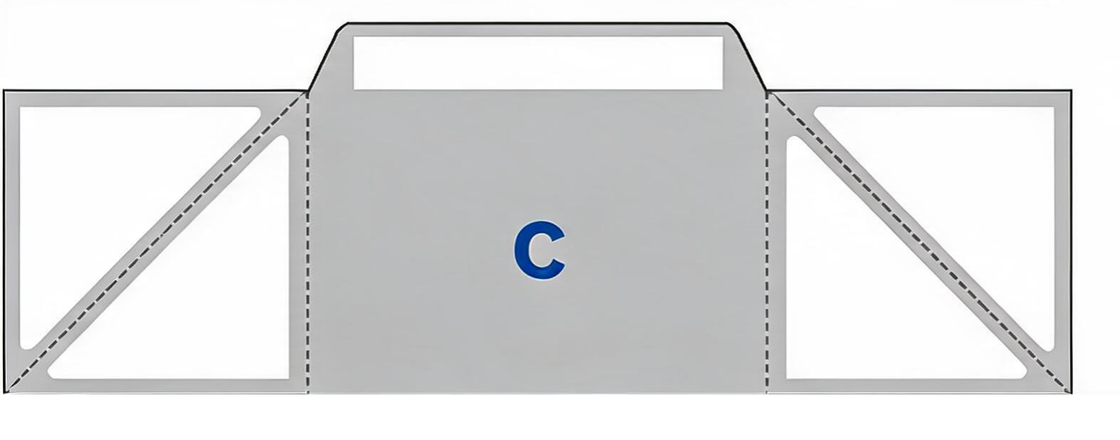

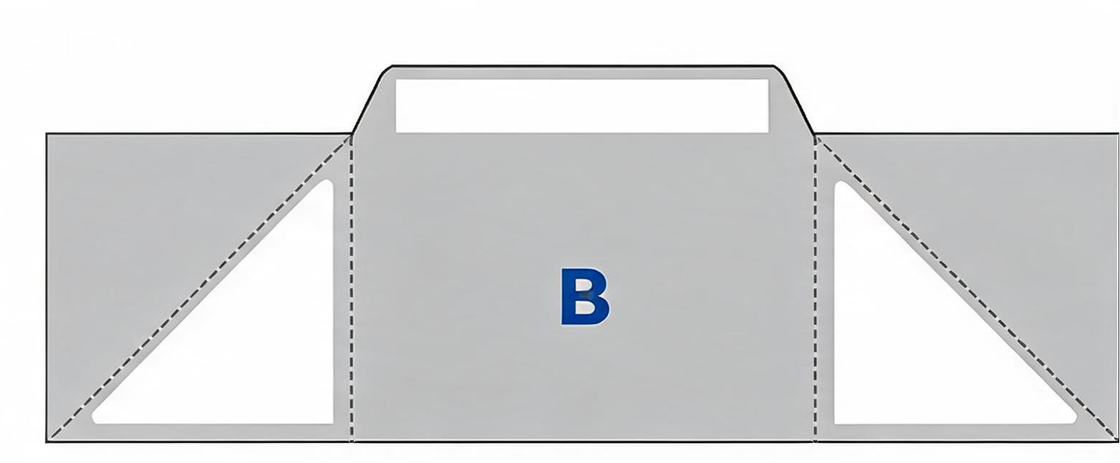

Use double-sided tape to adhere the side flaps of the folding box, apply long strips of double-sided tape along the flaps' edges, place two triangular pieces of double-sided tape at the fold, and apply four triangular pieces of double-sided tape
Details:

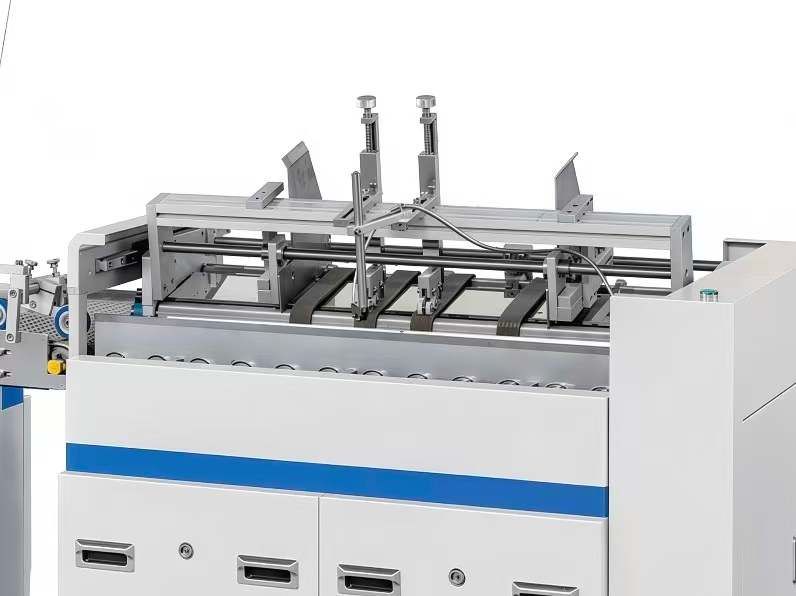

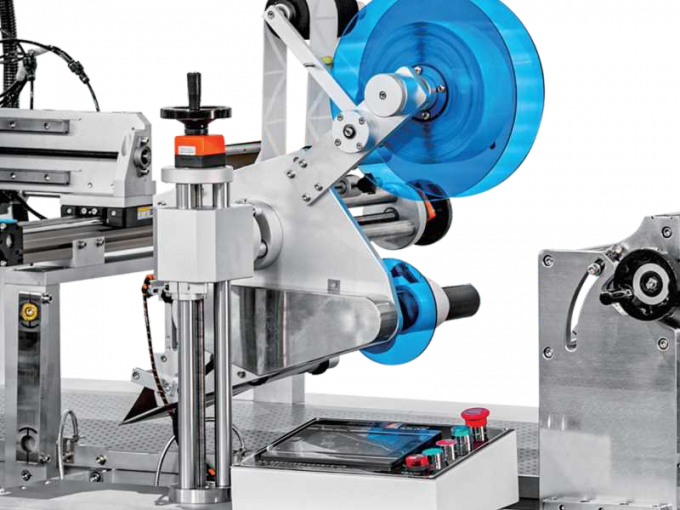

Feeding mechanism One-click 45° rotary switching device
Four triangular adhesive-applying heads Rotary triangular adhesive application
Technical Parameters:
| Model |
LY-600SFT-3 |
| Long Tape Application Speed |
50-60 Pcs/min |
| Max/Min. Wing Size |
800*200/100*30mm |
|
Application Speed for Two/Four
Triangular Tapes
|
25-30 Pcs/min |
|
Application Speed for Two/Four
Triangular Tapes
|
50-60 Pcs/min |
| Stick 2 double-sided tape max size |
180*180mm |
| Stick 2 double-sided tape min size |
35*35mm |
| Conveyor width |
600mm |
| Power/Voltage |
3Kw/AC220V |
| Machine dimension |
3810*1740*1650mm |
| Weight |
900kg |
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Workshop
Packing and Shipping
FAQ:
1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.What is the production time while placing order?---- Within 7-30 workdays.
3.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
