Name: LY-4510C-PK Automatic Hardcover Making Machine Case Making Machine Automatic Machine Hardcover Making Machine Case Maker
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-4510C-PK
Price: 135,006.00 USD
Availability: InStock

Home > products > Automatic Case Making Machine >

LY-4510C-PK Automatic Hardcover Making Machine Case Making Machine Automatic Machine Hardcover Making Machine Case Maker

automatic hardcover making machine with warranty

case making machine automatic operation

hardcover case maker for bookbinding

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

Model Number:

LY-4510C-PK

Document:

LY-4510C-PK Automatic Hardc... ).pdf

Request A Quote

Product Details

Model:

LY-4510L-PK

Paper Size(L*W):

L:120-1100mm W:95-600mm

Size For Cover And Lining(L*W):

L:120-1050mm W:100-500mm

Maximum Pieces Of Board:

6 Pcs

Cardboard Thickness:

1-3mm

Minimum Spin Size:

30mm

Precision Accuracy:

±0.05mm

Minimum Side Board Size:

25mm

Paper Thickness:

80-300g/㎡

Speed:

15-30 Sheets/min

Glue Tank Capacity:

30kg

Constant Power:

11.5kw

Machine Weight:

3100kg

Machine Size:

L9500×W2550×H2000mm

Highlight:

automatic hardcover making machine with warranty

case making machine automatic operation

hardcover case maker for bookbinding

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiate

Packaging Details

Film and plywood crate

Delivery Time

15-20days

Payment Terms

T/T

Supply Ability

15 sets/month

LY-1050C Automatic Lining Machine Visual positioning Lining Machine

Get Best Price

LY-1050C Automatic Lining Machine Lining Machine Paper Mounting Machine Cardboard Laminating Machine

Get Best Price

Video

LY-1050C- Automatic Lining Machine With Visual Positioning Lining Machine

Get Best Price

LY-900SMB Automatic Case Making Machine Hardcover Case Maker Four Side Wrapping Machine

Get Best Price

+86-13802379158

aureal@dglyjx.com

86-769-23174590

Contact Now

Product Description

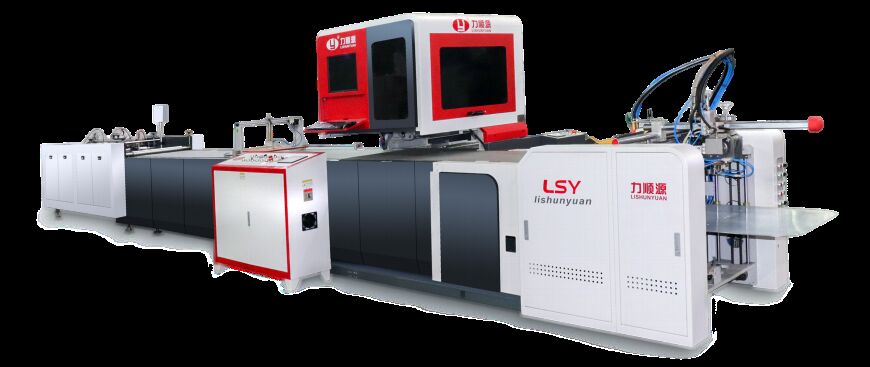

LY-4510C-PK Automatic Hardcover Making Machine

The LY-4510C-PK is a fully automatic hardcover making machine with advanced visual positioning technology. It integrates two high-precision 10-megapixel cameras and a YAMAHA robot arm, achieving a positioning accuracy of ±0.05mm. The machine is capable of producing rigid boxes, hard covers (case maker), and linings either separately or simultaneously, with a production speed of 15-30 pieces per minute.

Key Features

Independent control by different servo motor for feeding, preventing double sheet and incline issues
Two high-precision cameras and YAMAHA robot arm with positioning accuracy of ±0.05mm
Capable of producing rigid boxes, hard covers, and linings simultaneously
Production capacity of 15-30 pieces per minute
Easy setup enhances productivity and increases enterprise profit

Feeder System

Printer's cam gear structure catches one piece of paper and blows it into the roller, reducing defective percentage
Circulatory system suitable for hot & white glue to avoid splashing and reduce cleaning time
Heating system with regular timing and constant temperature to eliminate waiting time
Internal blender ensures even glue viscosity and reduces defective percentage
Separate servo motors for feeder, roller, and conveyor belt with strong coordination and stability
Gluing roller made of medium carbon steel with 304 stainless steel surface for durability and easy cleaning

Positioning System

Japan YAMAHA Robot Arm for precise grey board box spotting
Two 10-megapixel camera tracing system with lenses
Double Camera with XY Spool for accurate positioning
Positioning accuracy of 0.01mm

Pressing System

Multiple robot suction arms capable of picking maximum size: L840mm × W430mm
Storage area with dual feeding systems (bottom push and suction push) to prevent scratching

Folding System

First length side using belt folding technology
Multiple pressure rollers and double-layer belt for guidance and compression
Ensures proper material alignment without edge gaps or spillage
Produces denser, more compact finished products

Width side using servo control for easy setup
Timing belt drive ensures synchronized positioning
Corner pressing rollers pre-compress edges prior to folding short edges

Short side using pneumatic edge wrapping to eliminate gaps
Length side using digital setup on touch screen for easy job changes

Technical Specifications

Model	LY-4510C-PK
Paper Size (L×W)	L: 120-1100mm, W: 95-600mm
Size for Cover and Lining (L×W)	L: 120-1050mm, W: 100-500mm
Paper Thickness	80-300g/㎡
Maximum Pieces of Board	6 pcs
Minimum Spin Size	30mm
Minimum Side Board Size	25mm
Precision Accuracy	±0.05mm
Speed	15-30 sheets/min
Cardboard Thickness	1-3mm
Glue Tank Capacity	30kg
Constant Power	11.5kw
Machine Size	L9500 × W2550 × H2000mm
Machine Weight	3100kg

Process Flow

Packing and Shipping

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Manufacturing Workshop

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
