LY-1050C Automatic Lining Machine Lining Machine Paper Mounting Machine Cardboard Laminating Machine

LY-1050C Automatic Lining Machine Lining Machine Paper Mounting Machine Cardboard Laminating Machine

automatic lining machine for cardboard

paper mounting machine with warranty

cardboard laminating machine automatic

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

CE

Model Number:

LY-1050C

Contact Us
Request A Quote
Product Details
Model:
LY-1050C
Paper Size (L*W):
L:120-1100mm W:95-850mm
Size For Lining (L*W):
L:120-1050mm W:60-7500mm
Paper Thickness:
80-400gsm
Board Thickness:
400-1500gsm
Precision Accuracy:
±0.05mm
Speed:
15-25 Sheets/min
Power Supply:
380V/220V/50Hz/3phases
Glue Tank Capacity:
50kg
Constant Power:
11.5kw
Machine Size:
L8000×W3300×H2600mm
Machine Weight:
5100kg
Highlight:

automatic lining machine for cardboard

,

paper mounting machine with warranty

,

cardboard laminating machine automatic

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiate
Packaging Details
Film and plywood crate
Delivery Time
15-20days
Payment Terms
T/T
Supply Ability
15 sets/month
Product Description
LY-1050C Automatic Lining Machine
Product Overview

The LY-1050C Automatic Lining Machine with visual positioning is specially designed for carton and packaging box production. It is suitable for lining different layers of corrugated paper, cardboard and face paper, widely used in food packaging, gift boxes, cartons and daily packaging industries.

This machine features stable operation, high lamination accuracy and simple operation, which effectively improves the bonding quality of paper boards and reduces material waste.

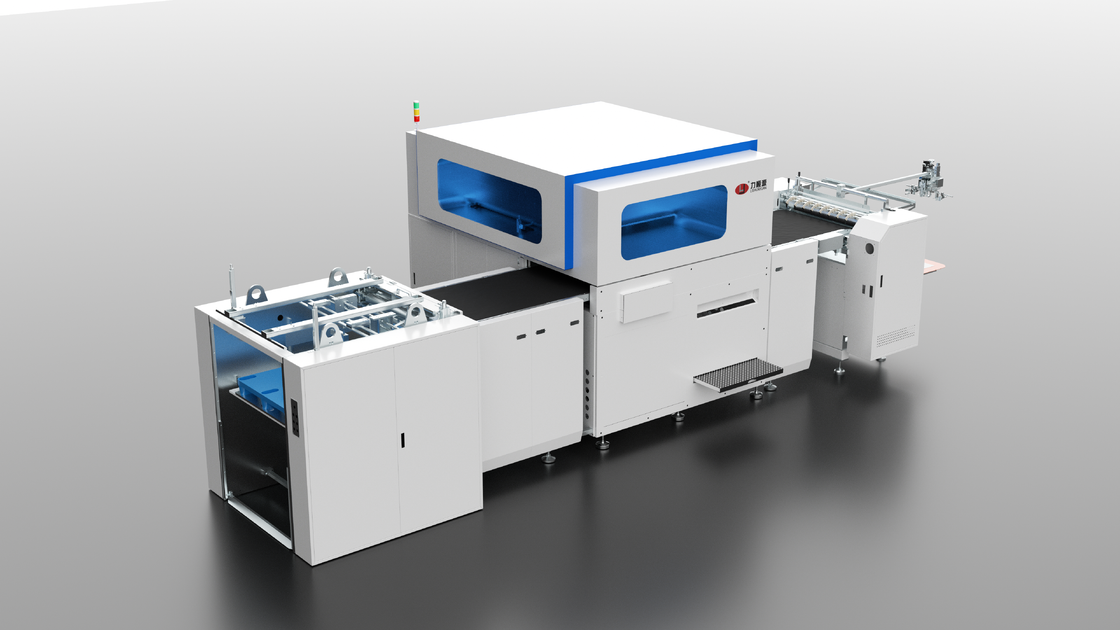

LY-1050C Automatic Lining Machine overview
Key Features
  • Independent control by different servo motors for feeding
  • High precision cameras with positioning accuracy of ±0.05mm
  • Servo robot arm for accurate positioning of various products
  • Capable of producing boxes and cases simultaneously
  • Production capacity: 15-20 pieces per minute
  • Easy setup to enhance productivity and increase enterprise profit
Feeder System
Feeder system component Feeder mechanism detail
  • Printer's cam gear structure for precise paper handling
  • Handles paper specifications from 80g/㎡ to 300g/㎡
  • Circulatory system for hot & white glue application
  • Heating system with regular timing and constant temperature
  • Built-in blender for even glue viscosity
  • Individual servo motors for feeder, roller, and conveyor belt
  • Gluing roller made of medium carbon steel with 304 stainless steel surface
Positioning System

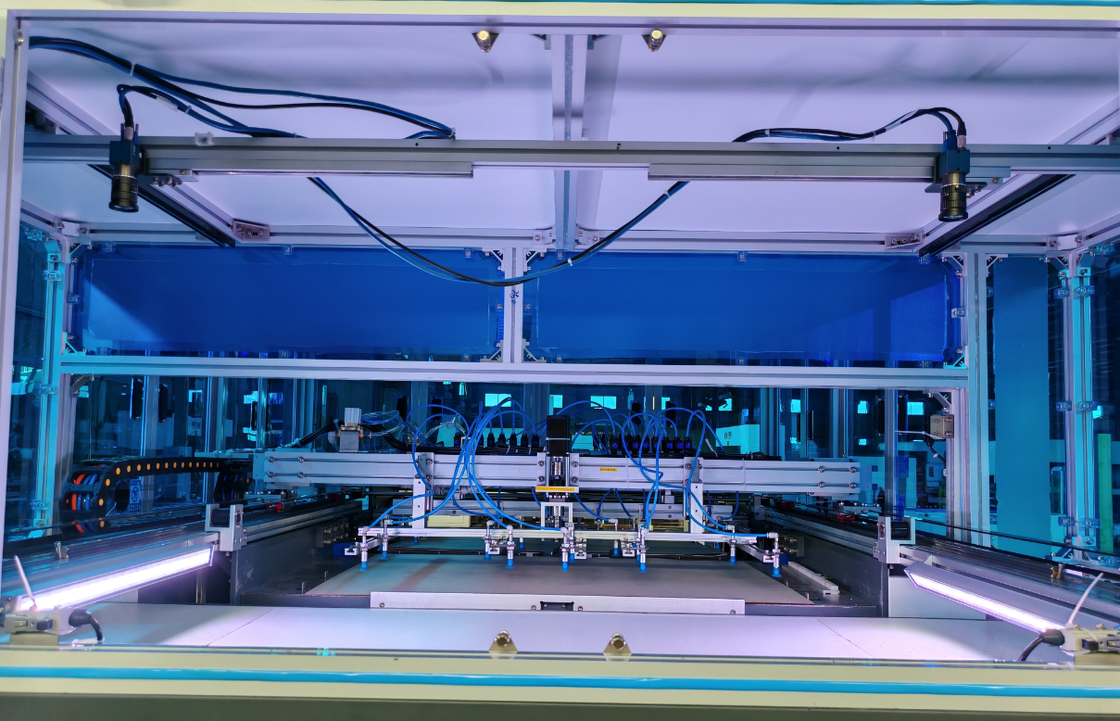

Positioning system component Camera positioning system
  • Fully servo Robot Arm for gray board spotting
  • Two cameras with 10 million pixel lens tracing system
  • Double Camera with XY Spool for positioning
  • Positioning accuracy: 0.05mm
  • Pre-feeding and secondary positioning mode for material storage

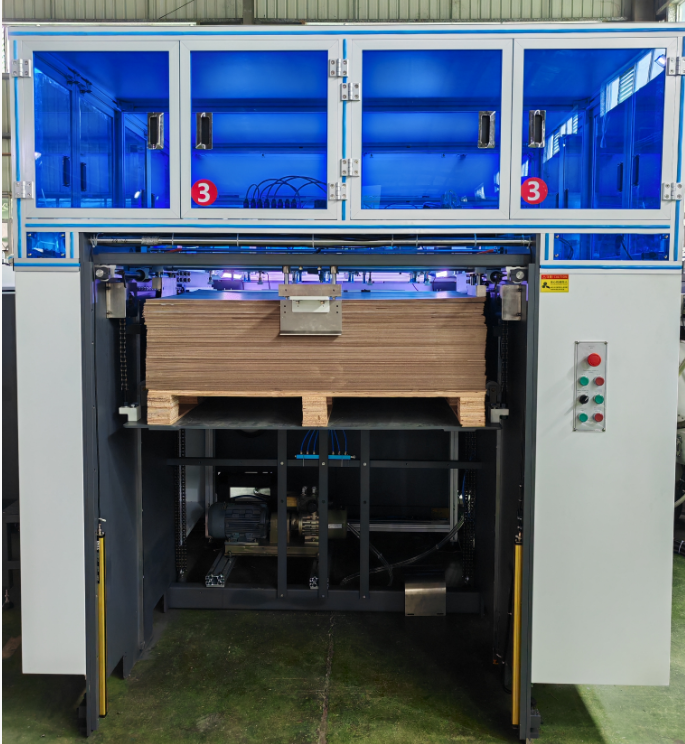

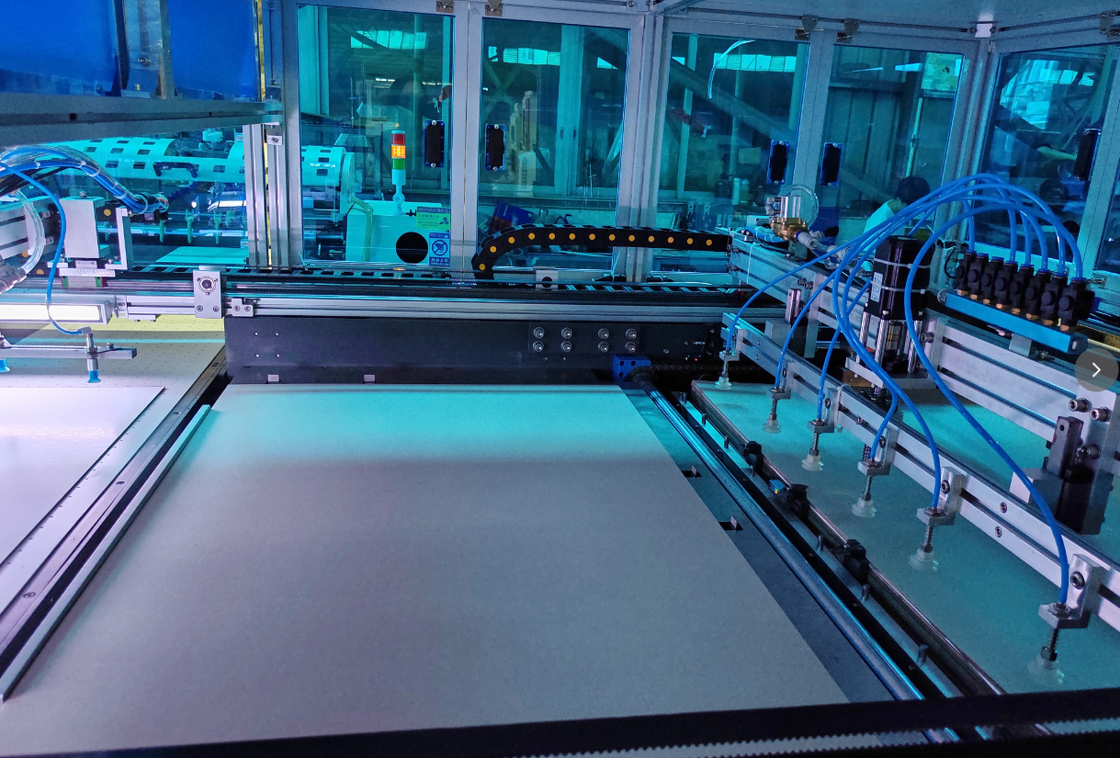

Pallet Feeding & Receiving Platform
Pallet feeding system Receiving platform
  • Robot suction arm for material handling
  • Whole pallet feeding eliminates manual handling
  • Automatic receiving platform with stack mechanism
  • Ensures flatness of paper boards
Technical Specifications
Model LY-1050C
Paper Size (L×W) L: 120-1100mm W: 95-850mm
Cover & Lining Size (L×W) L: 120-1050mm W: 60-7500mm
Paper Thickness 80-300gsm
Board Thickness 400-1500gsm
Precision Accuracy ±0.05mm
Speed 15-25 sheets/min
Power Supply 380V/220V/50Hz/3 phases
Glue Tank Capacity 50kg
Constant Power 11.5kw
Machine Size L8100×W3300×H2600mm
Machine Weight 5100kg
Packing and Shipping
Machine packaging for shipment Secured machine ready for transport
Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

LiShunyuan modern facility and workshop
Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications
Quality management certification Industry compliance certification Safety standards certification International quality certification Manufacturing excellence certification
Manufacturing Workshop
Modern manufacturing workshop overview Precision assembly area Quality control and testing station
Industry Exhibitions
LiShunyuan exhibition booth display International packaging exhibition participation Customer engagement at industry events
Quality After-Sales Service Commitment
  • 1 Hour Service: We respond to service requests within one hour with solution recommendations
  • 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
  • Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
  • Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
  • Pre-sale Service: Comprehensive training programs with professional engineers before delivery
  • Sale Services: Installation, debugging, and one week of free training services upon machine arrival
  • After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
