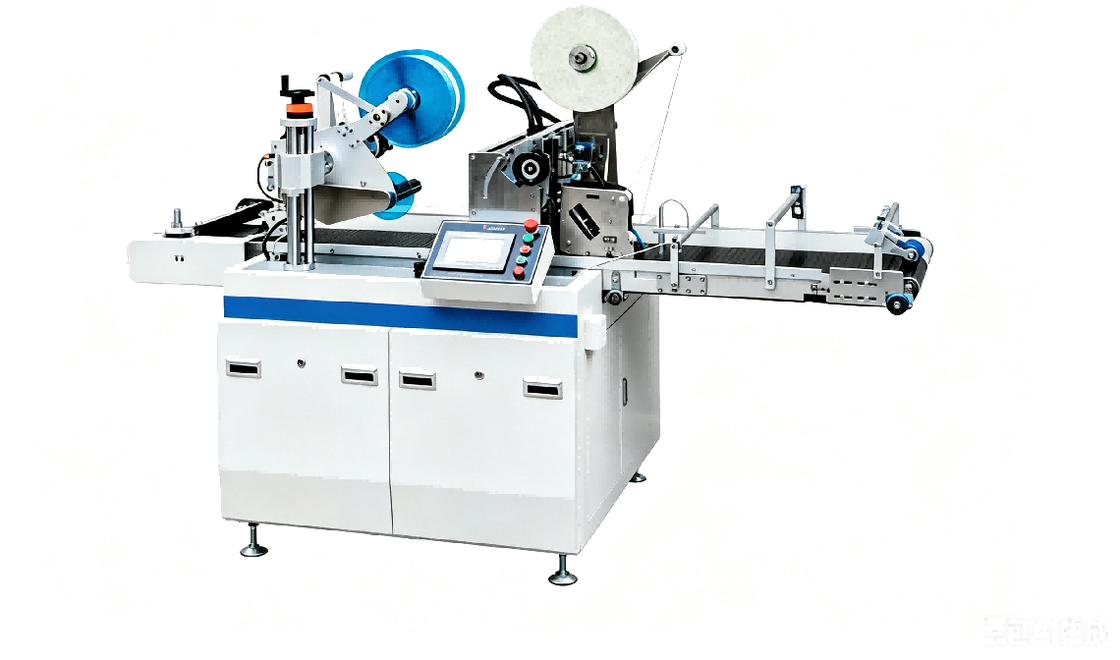

LY-600SF Multifunctional Folding Box Paste Double-Sided Adhesive Machine
Advantages:
- 1. Four triangular double-sided tapes or two squares and two long double-sided tapes can be attached at the same time. glue.
- 2. Omron fiber optic sensor cooperates with Delta servo positioning, and the double-sided tape is placed accurately
- 3. The conveyor belt sucks air throughout the process, the product is conveyed smoothly, and the glue error is small
- 4. Wellun man-machine interface, parameter touch screen setting.
- 5. The long strip is rotated to change the material, which is convenient and quick, and the length of the strip of double-sided tape is controlled by touch screen parameters.
- 6. Manual feeding, simple control, high production efficiency, up to 40-70 pcs/min.
- 7. The width of the assembly line is 600 mm.
- 8. Weinview touch screen, Delta servo motor, Zhuolan planetary reducer, Omron amplifier fiber, Festo cylinder, MAC solenoid valve.
It is used to stick double-sided tape (4 triangles + 1 long strip) on the side panel of the folding box, compatible with cardboard card box, file bag, eye shadow box film, label ingredient list, etc.
Details:

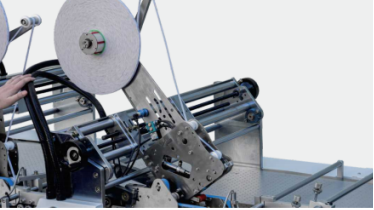

45°one-touch rotary transfer device
Technical Parameters:
|
Model
|
LY-600SF
|
|
Tape max size
|
170*170mm
|
|
Tape min size
|
30*30mm
|
|
Max size of side panel
|
800*200mm
|
|
Min size of side panel
|
100*40mm
|
|
Speed
|
40-70Pcs/min
|
|
Power/Voltage
|
2Kw/AC220V
|
|
Accuracy
|
±1mm
|
|
Machine dimension
|
2200*900*1600mm
|
|
Weight
|
400kg
|
Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.
Certifications
Manufacturing Workshop
Industry Exhibitions
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
