LY-1450WG-900 Multifunctional Zipper Box Paste
Double-sided Adhesive Machine
Advantages:
1. A friction-enabled automatic feeding mechanism ensures smooth paper feeding for carton-making machines.
2. A 90 degrees turn can be made in product direction and the conveyor belt is aligned through rollers.
3. Optical fiber electric-eye tracking and servo system ensure precision.
4. A novel adhesive mechanism is adopted to ensure efficient adhesion performance.
5. PLC control, human-computer interface, touch screen parameter setting, and unlimited setting for paper length.
6. Two continuous production lines are adopted to make cartons with less labor intensity.
7. Weinview touch screen, Leisai servo motor, Zhuolan planetary reducer, Omron amplifier fiber, Festo cylinder, MAC solenoid valve.
Product Samples:
Suitable for dispensing double-sided adhesive tape and red plastic strip for packing corrugated board cartons used for.
Details:
Turn Feed Roller Correction Unit Material Collecting Unit

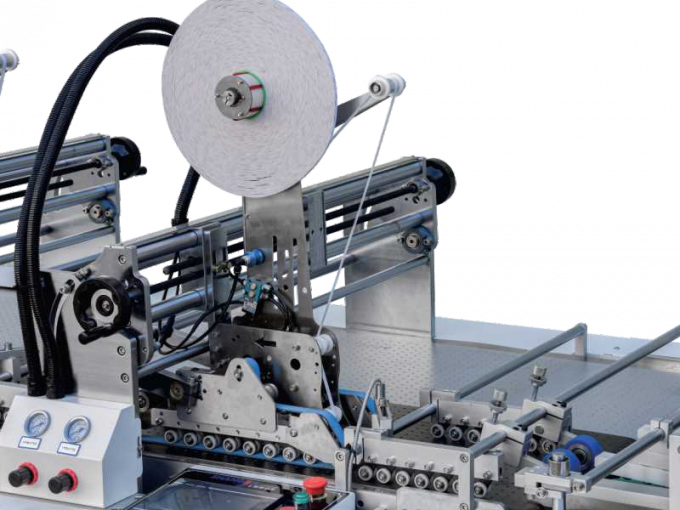

45°one-touch rotary transfer device
Technical Parameters:
| Model |
LY-1450WG-900 |
| Max sheet size |
1450*900mm |
| Min sheet size |
200*100mm |
| Paper Spec |
Card stock, Corrugated Cardboard |
| Number of stickers |
1-4Pcs |
| Speed |
40-90m/min |
| Double-sided tape width size |
5-35/8-70mm |
| Speed: |
40-90Pcs/min |
| Power/Voltage |
3.4Kw/AC220V |
| Accuracy |
±1mm |
| Machine dimension |
5000*2300*1650mm |
| Weight |
1600kg |
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Workshop
Packing and Shipping
FAQ:
1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.What is the production time while placing order?---- Within 7-30 workdays.
3.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
