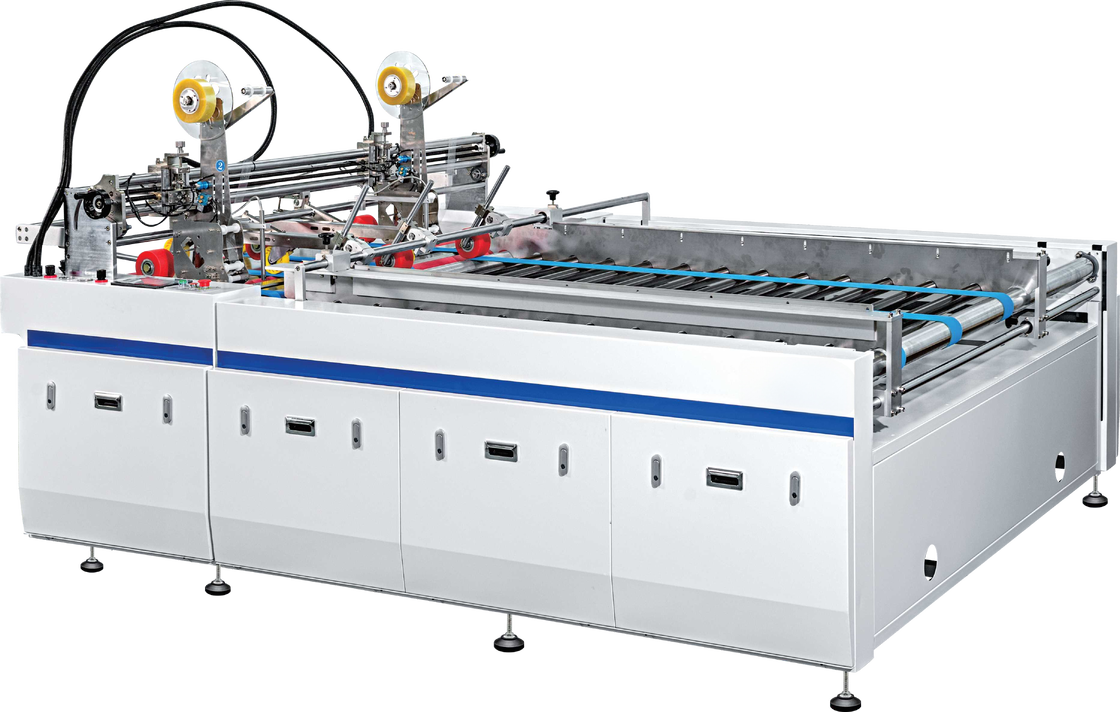

LY-1500TMJ Automatic Carton Transparent Tape Pasting Machine
Advantages:
1. The machine is suitable for large-sized cardboard and features a specialized applicator head for transparent tape.
2. Equipped with a powered and alignment-correcting feed conveyor structure, it is suitable for manual material loading.
3. Can be configured with 1-2 transparent tape applicator heads.
4. The sticker head has a rotating material changing function, which can replace the double-sided tape within 30 seconds to improve efficiency.
5. Fiber Optic Sensing with Servo Positioning Ensures Precise Double-Sided Tape Placement.
6. The human-machine interface and touch screen makes the process of parameter settings much easier.

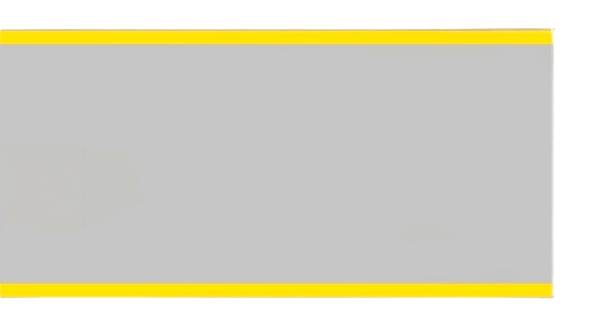

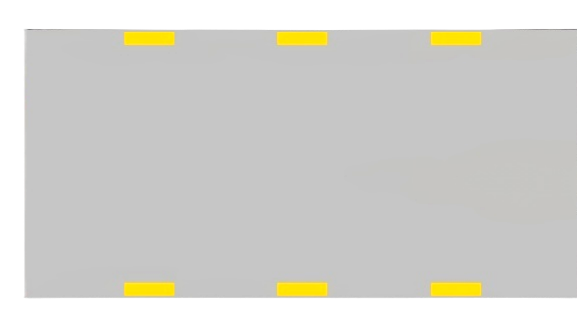

7. Can apply adhesive in multiple segments.
This machine is used for applying transparent tape and double-sided tape to the surfaces of large carton boards, corrugated boards, and other large-sized products.
Details:
| |
|
|
|
|

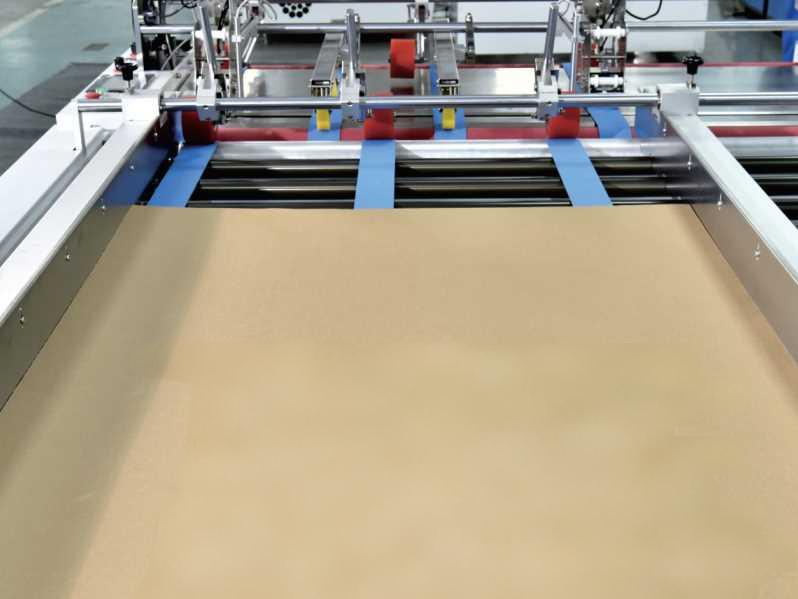

Manual feeding
For setup or small-batch operation
|
Servo Taping Unit |
|
|
|
|
|
45° one-touch rotary changeover unit
For rapid material swapping
|
Configure:
Weinview touch screen, Leisai servo motor, Zhuolan planetary reducer, Omron amplifier fiber, Festo cylinder,MAC solenoid valve.
Technical Parameters:
| Model |
LY-1500TMJ |
| Max.sheet size |
L1800*W1500mm |
| Width of Tape size |
8-70mm |
| Pasting head |
2pcs (optional extra heads available) |
| Product thickness |
corrugated paper |
| Speed |
40-90m/min |
| Accuracy |
±1.5mm |
| Power/Voltage |
2.5KW / AC220V |
| Machine Dimension |
3200*2050*1650mm |
| Weight |
1100kg |
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Workshop
Packing and Shipping
FAQ:
1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.What is the production time while placing order?---- Within 7-30 workdays.
3.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
