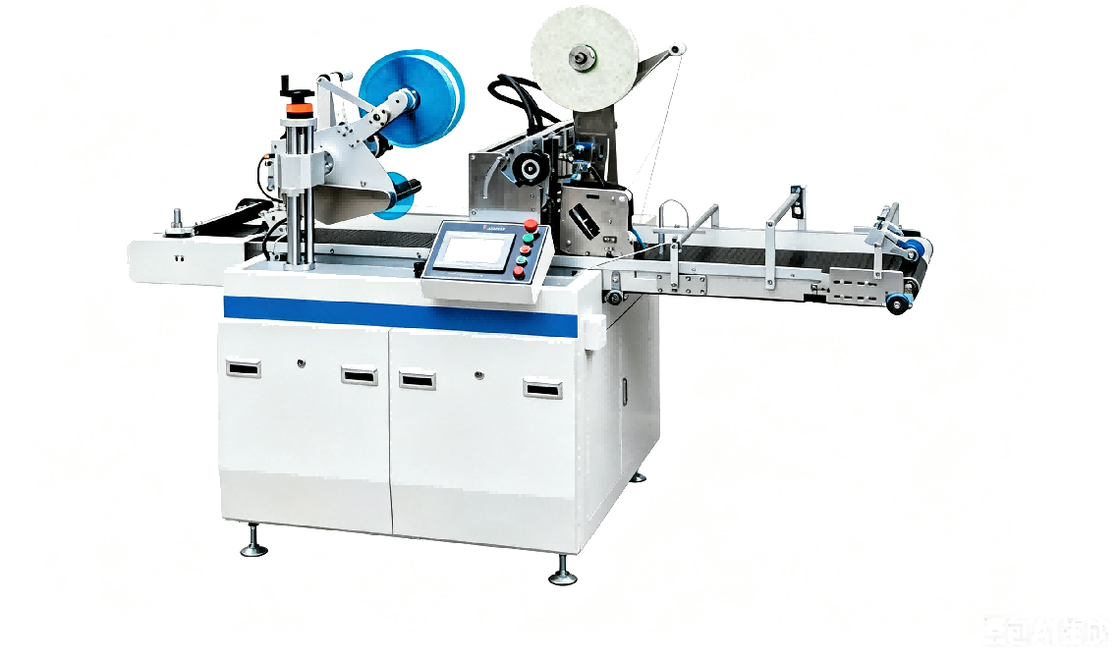

LY-600SF Multifunctional Folding Box Paste Double-Sided Adhesive Machine

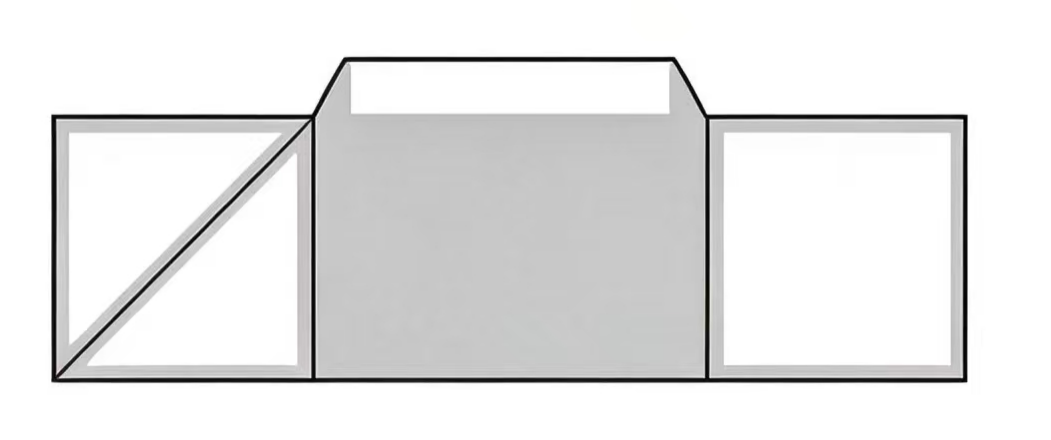

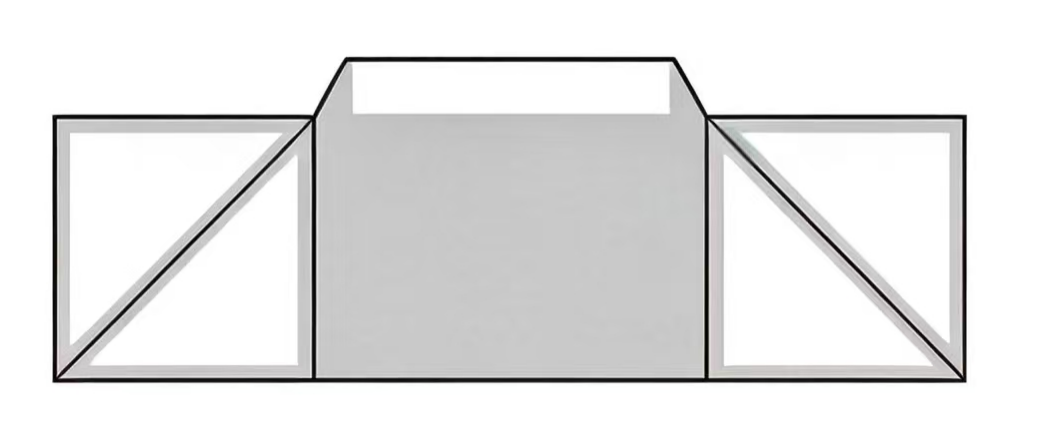

This machine is used to stick double-sided tape (4 triangles + 1 long strip) on the side panel of the folding box, compatible with cardboard card box, file bag, eye shadow box film, label ingredient list, etc.
Key Features
- Four triangular double-sided tapes or two squares and two long double-sided tapes can be attached at the same time. glue.
- Omron fiber optic sensor cooperates with Delta servo positioning, and the double-sided tape is placed accurately
- The conveyor belt sucks air throughout the process, the product is conveyed smoothly, and the glue error is small
- Wellun man-machine interface, parameter touch screen setting.
- The long strip is rotated to change the material, which is convenient and quick, and the length of the strip of double-sided tape is controlled by touch screen parameters.
- Manual feeding, simple control, high production efficiency, up to 40-70 pcs/min.
- The width of the assembly line is 600 mm.
- Weinview touch screen, Delta servo motor, Zhuolan planetary reducer, Omron amplifier fiber, Festo cylinder, MAC solenoid valve.
Equipment Features
|
|
|
|
45°one-touch rotary transfer device
|
Technical Parameters
| Model |
LY-600SF
|
| Tape max size |
170*170mm
|
| Tape min size |
30*30mm
|
| Max size of side panel |
800*200mm
|
| Min size of side panel |
100*40mm
|
| Speed |
40-70Pcs/min
|
| Power/Voltage |
2Kw/AC220V
|
| Accuracy |
±1mm
|
| Machine dimension |
2200*900*1600mm
|
| Weight |
400kg
|
