Name: Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-HB3000CZ
Price: 135,006.00 USD
Availability: InStock

Home > Products > Rigid Box Making Machine >

Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Ly-485c visual positioning machine

hardcover automatic positioning machine

rigid box making positioning machine

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

Model Number:

LY-HB3000CZ

Document:

03 product LY-485C.pdf

Request A Quote

Product Details

Name:

LY-485C Multifunctional Visual Positioning Machine

Paper Size(L*W):

L:120-850mm W:95-600mm

Finished Box Size(L*W*H):

L:55-500mm W:55-400mm H:15-130mm

Case Maker Finished Box Size(L*W):

L:100-850mm W:80-430mm

Paper Thickness:

80-300g/㎡

Precision:

±0.05mm

Air Pressure:

0.6-0.8MPa

Cardboard Thickness:

1-3mm

Power Supply:

380V/220V/50Hz/3phases

Glue Tank Capacity:

30kg

Constant Power:

11.5kw

Machine Size:

L8000×W2550×H2000mm

Machine Weight:

2000kg

Speed:

25-30 Sheets/min

Highlight:

Ly-485c visual positioning machine

hardcover automatic positioning machine

rigid box making positioning machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Film and plywood crate

Delivery Time

15-20days

Payment Terms

T/T

Supply Ability

20 sets per month

LY-450 Semi Automatic Multiple Ribbon Inserting Machine Rigid Box Making Machine Sleeve Jewelry luxury Gift Shoe Box

Get Best Price

LY-PK-1816RM No-die Non-metal Flexible Material Cutting Machine Rigid Box Making Machine Accurate Folding and Cutting High Precision Packaging Case、Hardcover Maker

Get Best Price

LY- 3000CB Intelligent 2 in 1 High Speed Rigid Box Making Machine (within bubble pressing functions) Rigid box machine/ Packing box making machine/ Automatic rigid box making/ Gift box making machine

Get Best Price

Video

LY- HB3000CZ Intelligent 2 In 1 Rigid Box Making Machine Premium Gift Making Machine Rigd Box Whole Line Solution Drawer Box Making Machine

Get Best Price

86-769-23174590

Contact Now

Product Description

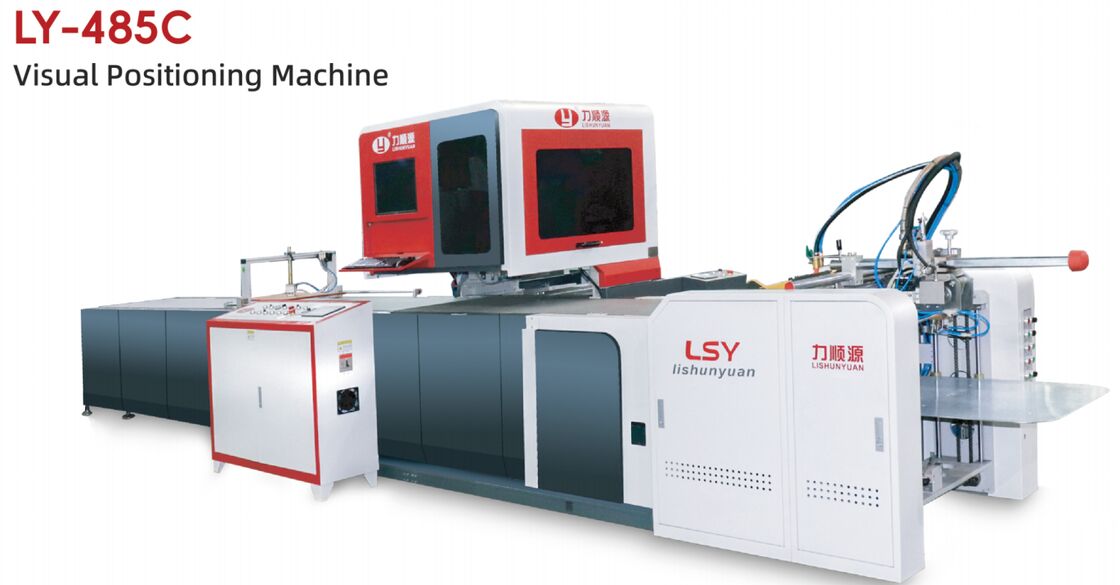

LY-485C Multifunctional Visual positioning machine

Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Facility profile:

1.Independent control by different servo motor for feeding, avert double sheet and incline.2. Within 2 sets of high precision cameras and YAMAHA robot arm,
Positioning accuracy of ± 0.05mm.
YAMAHA robot arm are adopted to accurate position all kinds of product ,

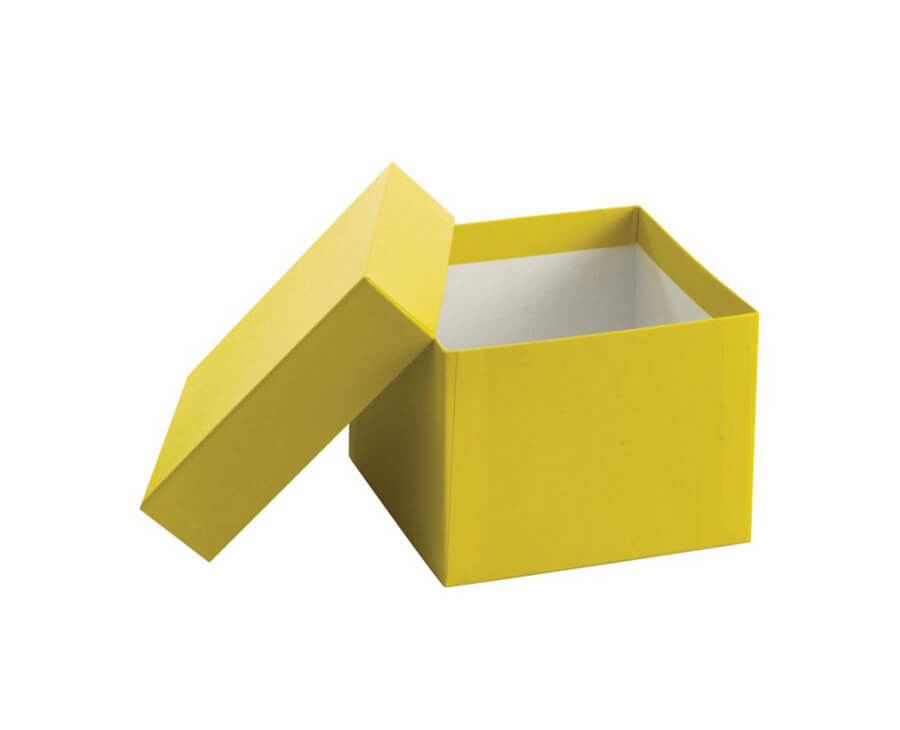

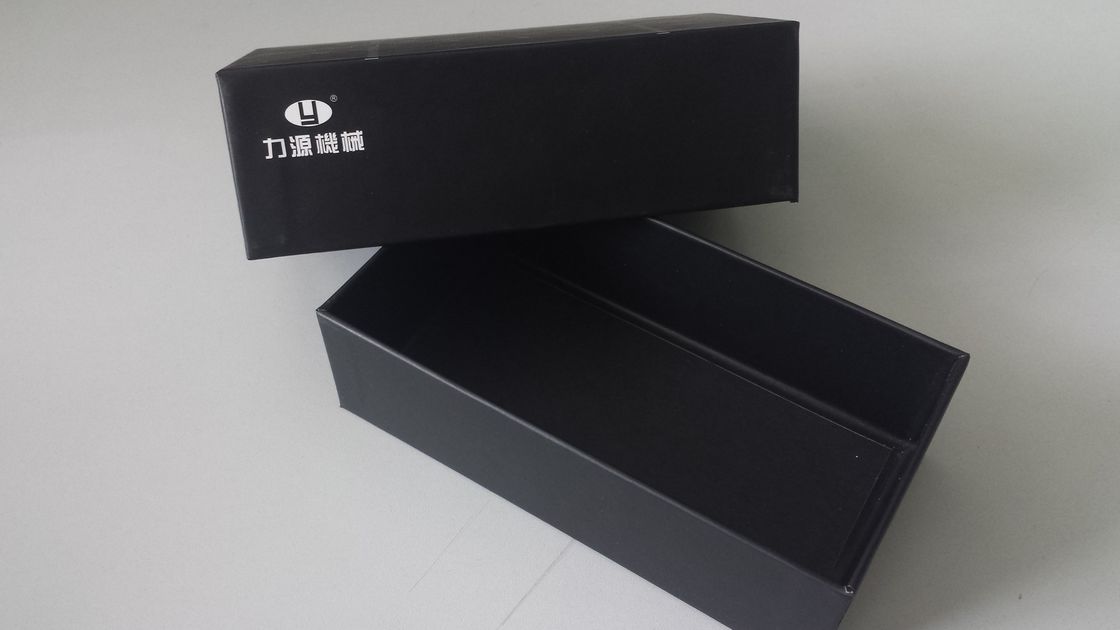

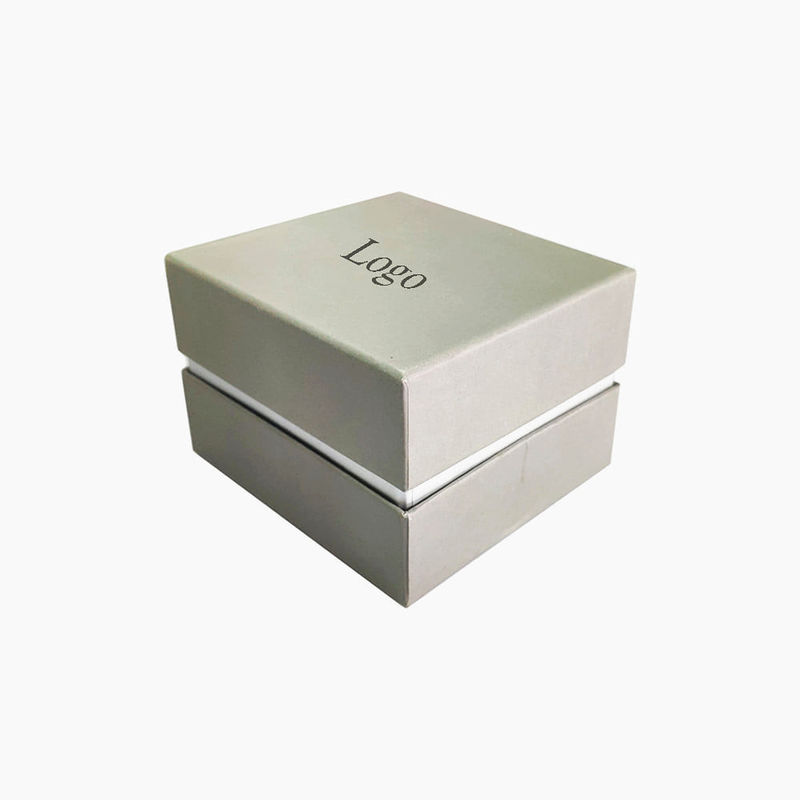

such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box ,etc.
3.Able to production Rigid Box and Hard Cover(Case Maker) at the same time
4. Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
5. Easy to setup enhance productivity and increase enterprise profit

Details:

Feeder	Two Cameras	YAMAHA Robot Arm

1. Feeder is controlled by servo motor. 2. The nozzle-equipped design prevents double sheets and removes dust from the paper, reducing defect rates.	1. Two cameras with Lens in 10million Pixel tracing system 2. Double Camera with XY Spool for positioning. 3. Positioning accuracy ± 0.05mm.	1. Multiple Robot Arm for spotting the box or covers. 2. The arm able to working with box and cover
Functions for the hard cover	Functions for feeding box	Functions for lining

1. Able to do separate board maximum 6pcs . 2. Minimum spine is 30mm. (able to modify to 15mm)	1. Able to working rigid box, sleeve box and even tube box. 2. Corner pasting able to connect online.	Lining with bottom section,first suck down then push to the positioning area, avoid scratch.

Process flow

For boxes: Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

For hard cover: Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

For sleeve boxes: Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Technical Parameters

Parameter	Value
Model:	LY-485C
Paper size(L*W)	L:120-850mm W:95-600mm
Finished box size(LWH)	L:55-500mm W:55-400mm H:15-130mm
case maker finished box size(L*W)	L:100-850mm W:80-430mm
Paper thickness:	80-300g/㎡
Precision:	±0.05mm
Air pressure:	0.6-0.8MPa
Cardboard thickness:	1-3mm
Power supply:	380V/220V/50Hz/3phases
Glue tank capacity:	30kg
Constant power:	11.5kw
Machine size:	L8000×W2550×H2000mm
Machine weight:	2000kg
Speed:	25-30 sheets/min

Process flow:

Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.

LiShunyuan modern facility and workshop

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Manufacturing Workshop

Industry Exhibitions

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
