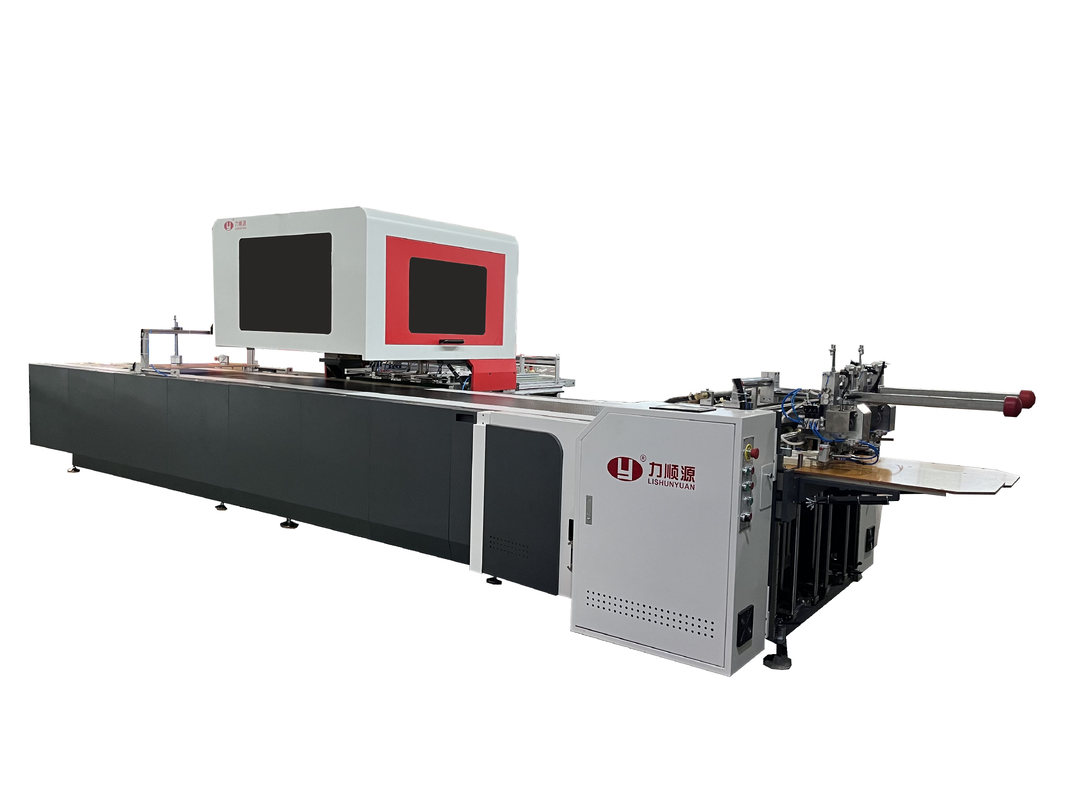

LY-850DM Double Sheet Positioning Machine (only for boxes)
Facility Functions :
1. Double feeding position and independent control by different servo motor,
More stable to run different thickness paper at the same time.
2.Independent control by different servo motor for feeding, avert double sheet and incline.
3.Within 4 sets of high precision cameras and YAMAHA robot arm,
Positioning accuracy of ± 0.05mm.
YAMAHA robot arm are adopted to accurate position all kinds of product ,

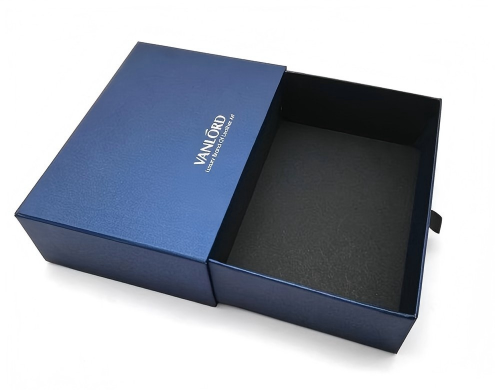

such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box ,etc.
4.Easy to setup enhance productivity and increase enterprise profit
5.Decreased your overlapping investment for meeting products demand,
boosted machine’s service
Machine principle:
Automatic feeding and gluing on the paper. Robot arm working with vision positioning system
to place the paper box on to paper.
Details:
| Separate feeding control by servo |
Four cameras |
YAMAHA Robot arm |
|
|
|
|
1. Feeder is controlled by servo motor. And separate servo control with different lifting function for feeding stack.
3. Independent controlled feeding table and independently controlled sheet roller. Avoid the inconsistency of the length of the paper between the two sheets. |
1. German Balser camera with Japanese Lens in 10 million Pixel tracing system
1. Four Cameras with YAMAHA robot working XY Spool for placement.
Positioning accuracy reach ± 0.05mm |
1. Multiple Robot Arm for spotting the box or covers.
2. The arm able to working with only two boxes or separate with big sheet of cover.
|
Technical parameters:
|
Paper size
|
single sheet
|
double sheet
|
|
W :80-800mm
|
W :80-375mm
|
|
L :120-1000mm
|
L :120-900mm
|
|
Paper thickness
|
100-350g/m2
|
|
cardboard thickness
|
2＞mm
|
|
Finished box size
|
L: 65-700mm
|
L :65-350mm
|
|
W:65-400mm
|
W :65-350mm
|
|
H:5-120mm
|
H :5-120mm
|
|
Finished case size
|
L:65-1000mm
|
L :65-375mm
|
|
W:65-500mm
|
W :65-375mm
|
|
Precision accuracy
|
±0.05mm
|
|
Max power
|
11KW
|
|
Min width of spine
|
30mm
|
|
Gap of case
|
1-4mm
|
|
Capacity of production
|
30-40PCS/MIN
|
20-30PAIRS/MIN
|
|
Power Supply:
|
380V/50Hz
|
|
Machine dimension:
|
L7415×W2510×H2000mm
|
|
Machine weight:
|
2000kg
|
