LY-850DN Multifunctional servo independent control double Visual automatic positioning machine

LY-850DN Multifunctional servo independent control double Visual automatic positioning machine

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

CE

Model Number:

LY-850DN

Contact Us
Request A Quote
LY-850DN Multifunctional servo independent control double Visual automatic positioning machine
LY-850DN Multifunctional servo independent control double Visual automatic positioning machine LY-850DN Multifunctional servo independent control double Visual automatic positioning machine LY-850DN Multifunctional servo independent control double Visual automatic positioning machine LY-850DN Multifunctional servo independent control double Visual automatic positioning machine LY-850DN Multifunctional servo independent control double Visual automatic positioning machine LY-850DN Multifunctional servo independent control double Visual automatic positioning machine
Product Details
Apply To:
Box, Case, Lining Positioning
Type:
Visual Positioning Gluing Machine
Finished Box Size Max:
700mm*400mm*120mm
Finished Box Size Min:
65mm*65mm*5mm
Speed:
30-40 Pcs/min
Global Services:
Italy, South Korea, India, Malaysia, Spain, Poland, Portugal, Vietnam
Weight:
2000kg
Dimension:
L7415*W2510*H2000mm
Quality Guarantee:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
film and plywood crate
Delivery Time
15 days
Payment Terms
L/C,T/T
Supply Ability
20 sets/month
RELATED PRODUCTS
Good price LY-850DN Multifunctional servo independent control double Visual automatic positioning machine online Video

LY-850DN Multifunctional servo independent control double Visual automatic positioning machine

Get Best Price
Good price LY-485C-PK Fully Automated Machine Vision Case Wrapping System Rate 30 Pieces Per Minute online

LY-485C-PK Fully Automated Machine Vision Case Wrapping System Rate 30 Pieces Per Minute

Get Best Price
Good price LY-850DN/DM Multifunctional Double Visual Positioning Machine Duble Box Making Machine online Video

LY-850DN/DM Multifunctional Double Visual Positioning Machine Duble Box Making Machine

Get Best Price
Good price Servo Motor Automatic Pick And Place Machine 7500 X 2400 X 2000mm online Video

Servo Motor Automatic Pick And Place Machine 7500 X 2400 X 2000mm

Get Best Price
Contact Us
Contact Now
Product Description

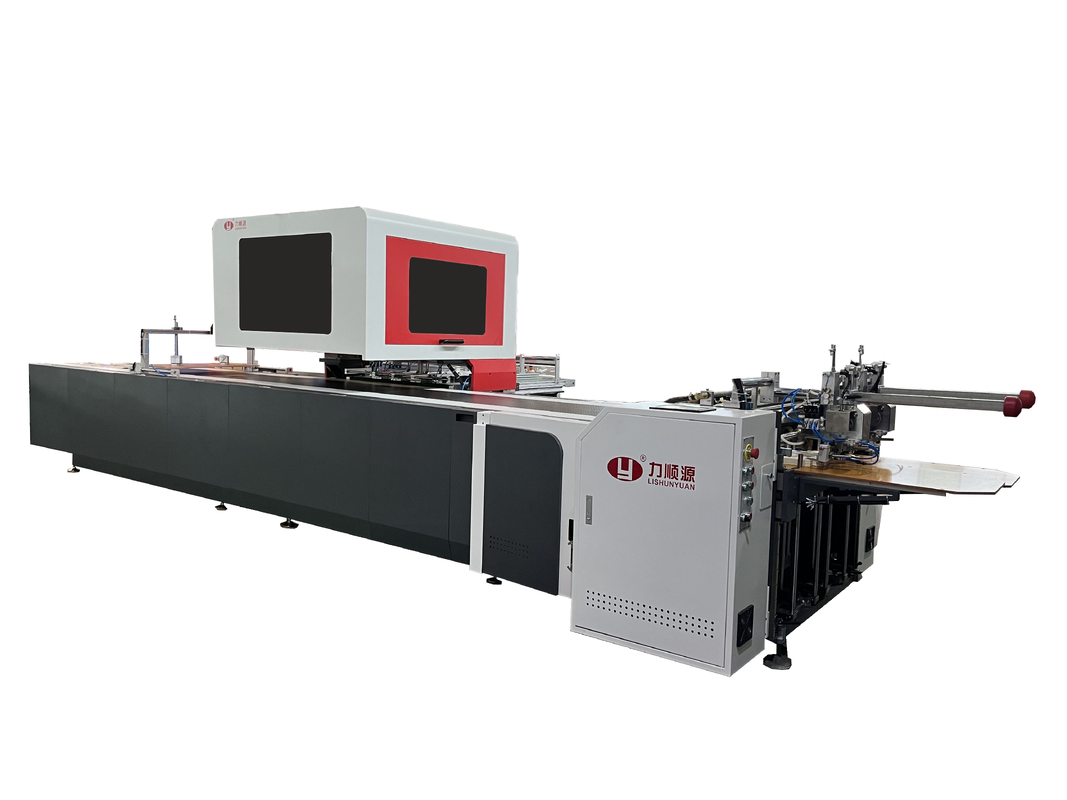

LY-850DN Multifunctional Servo Independent Control Double Visual Automatic Positioning Machine
Product Overview

High-speed visual automatic positioning machine with double positioning capability operating at 30-40 pieces per minute. Features independent servo motor control for enhanced stability and precision.

Key Features

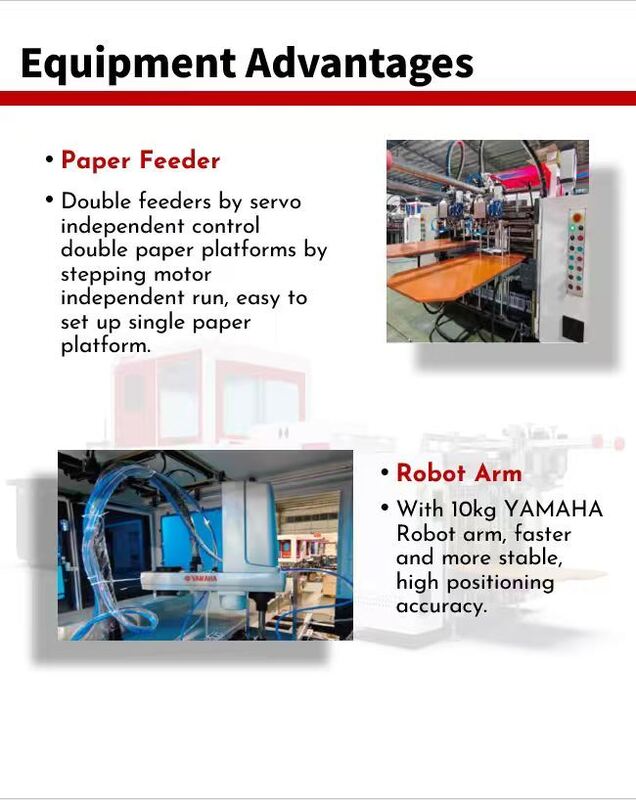

  • Double feeding position with independent servo motor control for running different thickness papers simultaneously
  • Independent servo motor control for feeding prevents double sheets and inclines

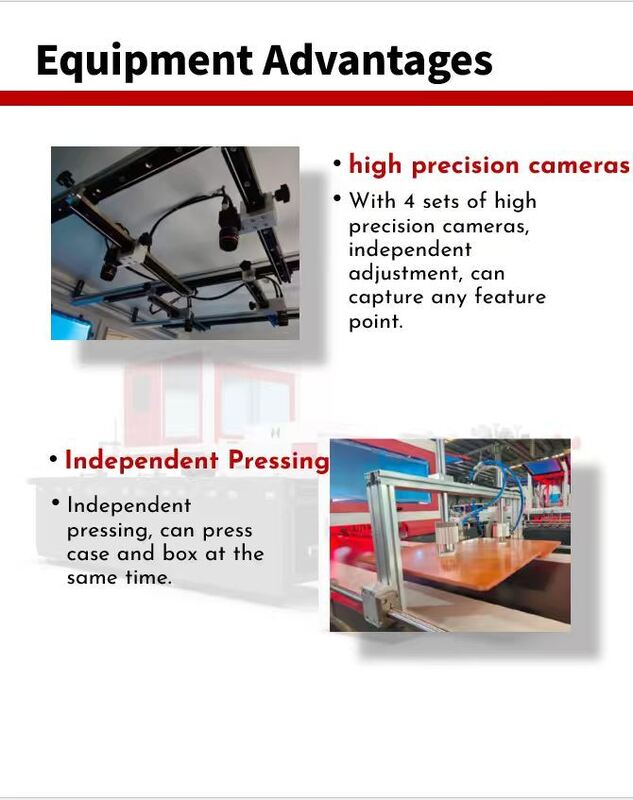

  • Equipped with 4 sets of high-precision cameras and robot arm for box positioning accuracy of ±0.1mm
  • Capable of running single and double feeding with easy and quick setup

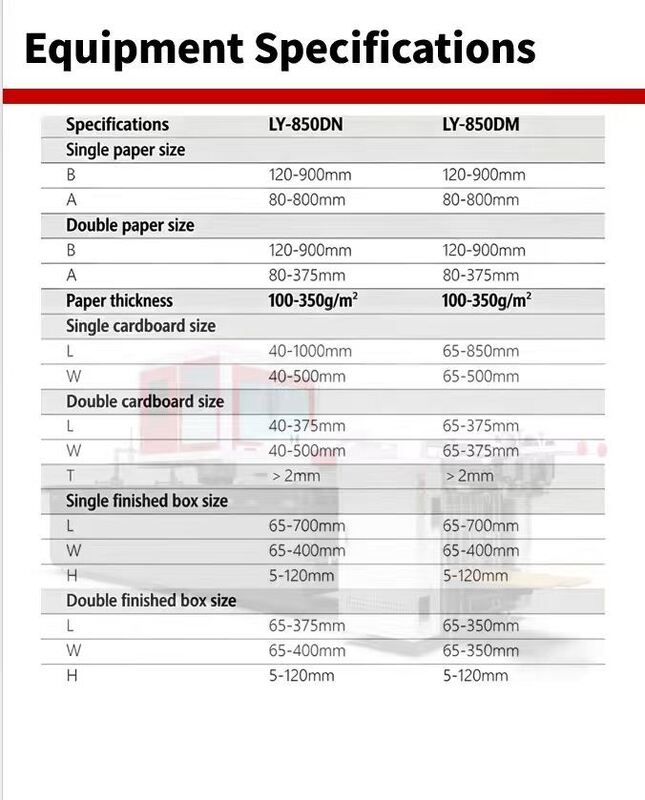

Technical Specifications
Specification Value
Max size of double boxes 350mm × 250mm × 120mm
Max size of single box 600mm × 400mm × 120mm
Min size of box 50mm × 50mm × 3mm
Positioning accuracy ±0.05mm
Voltage 380V
Max size of gluing paper 750mm × 750mm
Min size of gluing paper 90mm × 40mm
Speed of double positioning 20-40 pcs/min
Speed of single positioning 15-30 pcs/min
Weight 1300KG
Machine dimension L2600 × W1800 × H1900mm
Gluing and Feeding System
Gluing and feeding system components

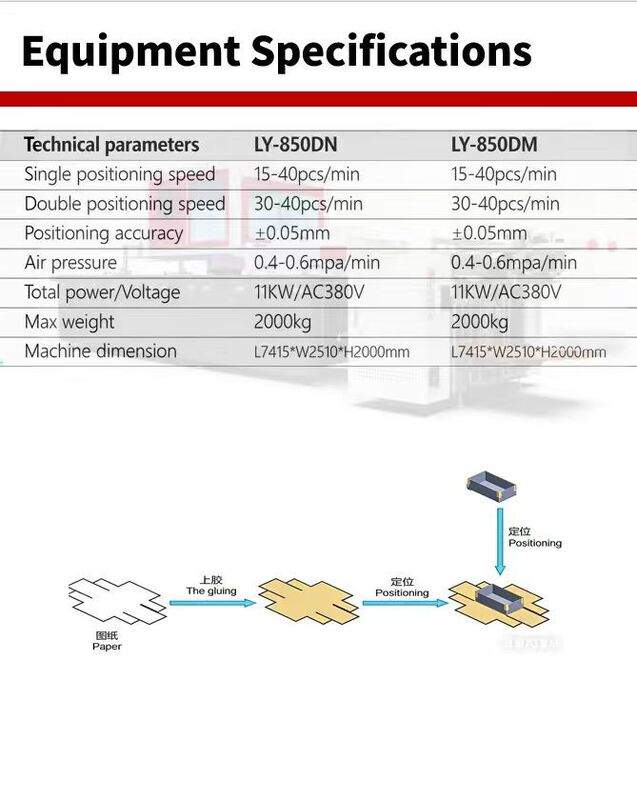

Box Forming Process

Holding box forming - stable, efficient and fast operation

Box forming process demonstration
Product Applications
Product application examples
Frequently Asked Questions
What about machine warranty?

1 year warranty including free machine parts replacement (consumables are not included).

What is the production time while placing order?

Within 7-30 workdays.

Do you have stock product to sell?

Normally we do, it depends on how many sets you need.

Does the packing strong?

Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.

How about after-sales service process?

When your machine has problem, just contact your sales and we will solve your problem ASAP.

What is the minimum quantity for order?

1 set, we done business step by step with high quality products and excellent services.

Do you inspect the finished products?

Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to you for your verification before shipping.

Our Company
Company facility overview Manufacturing workshop Quality control area Production line Technical team Finished products showcase
