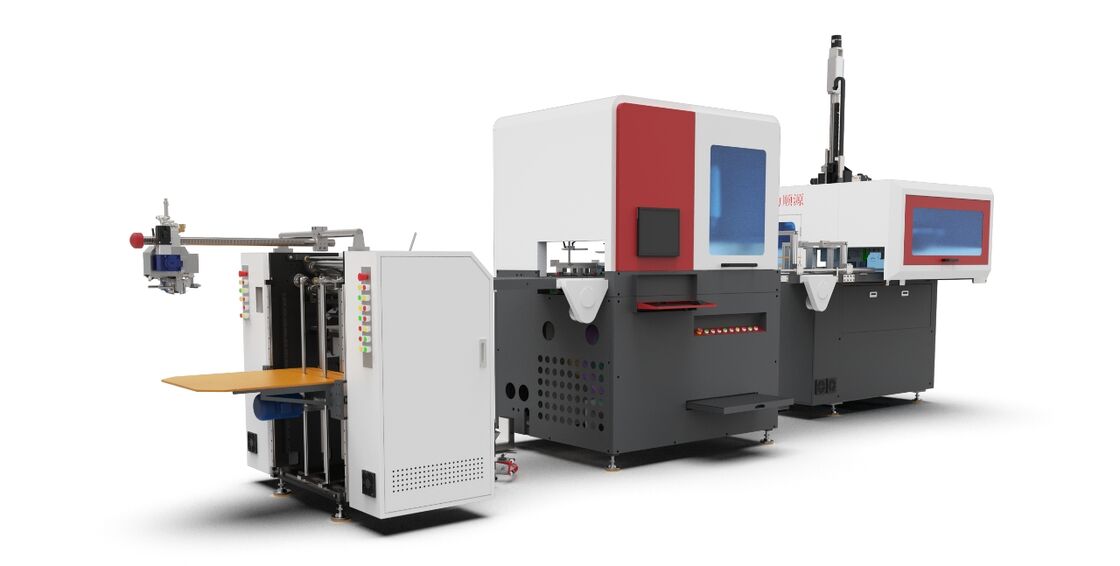

LY- 1500CB Intelligent Automatic Rigid Box Making Machine (within bubble pressing functions)

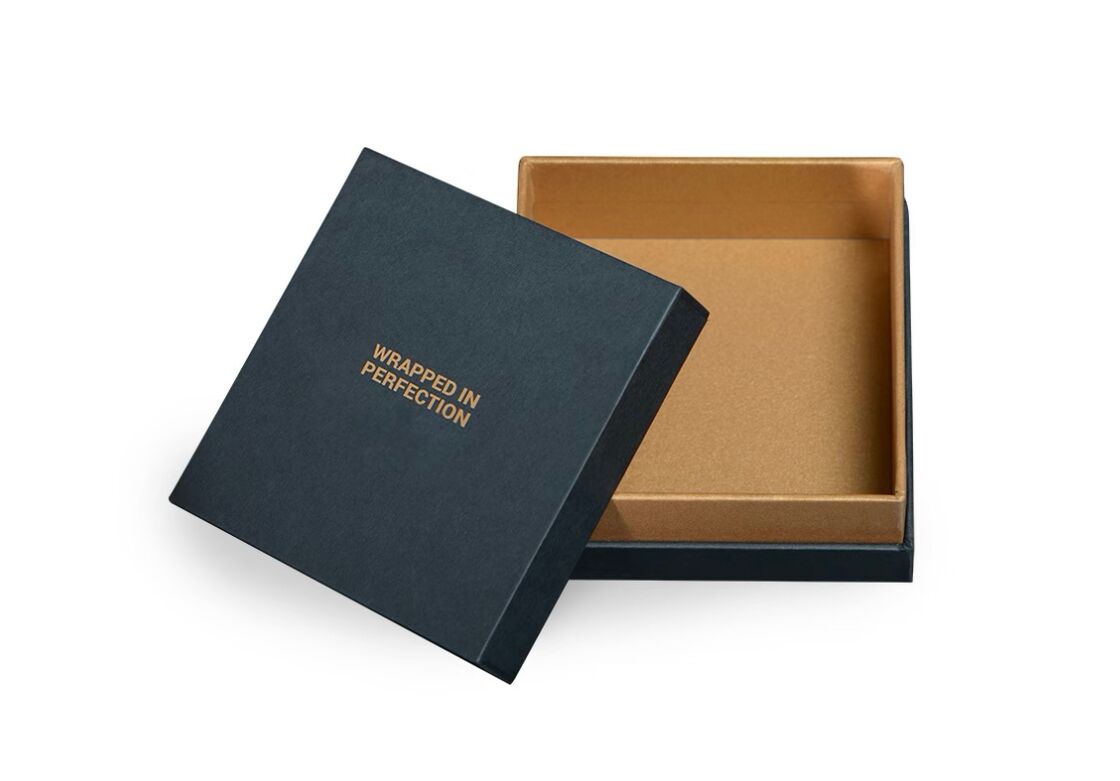

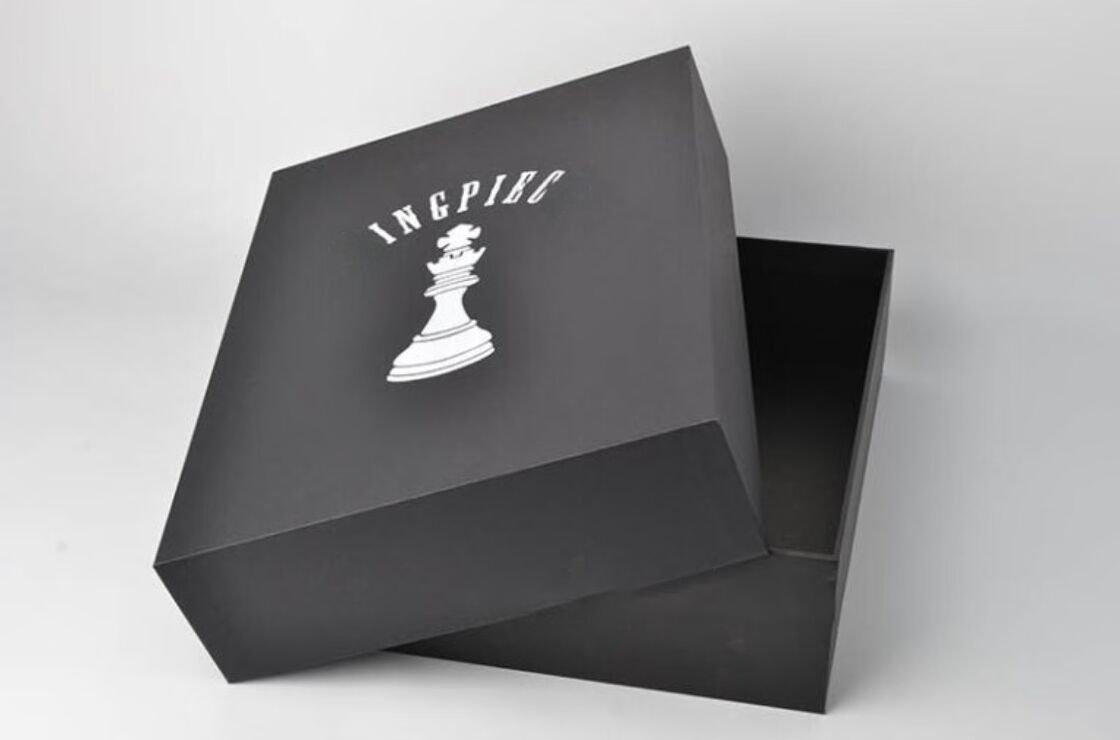

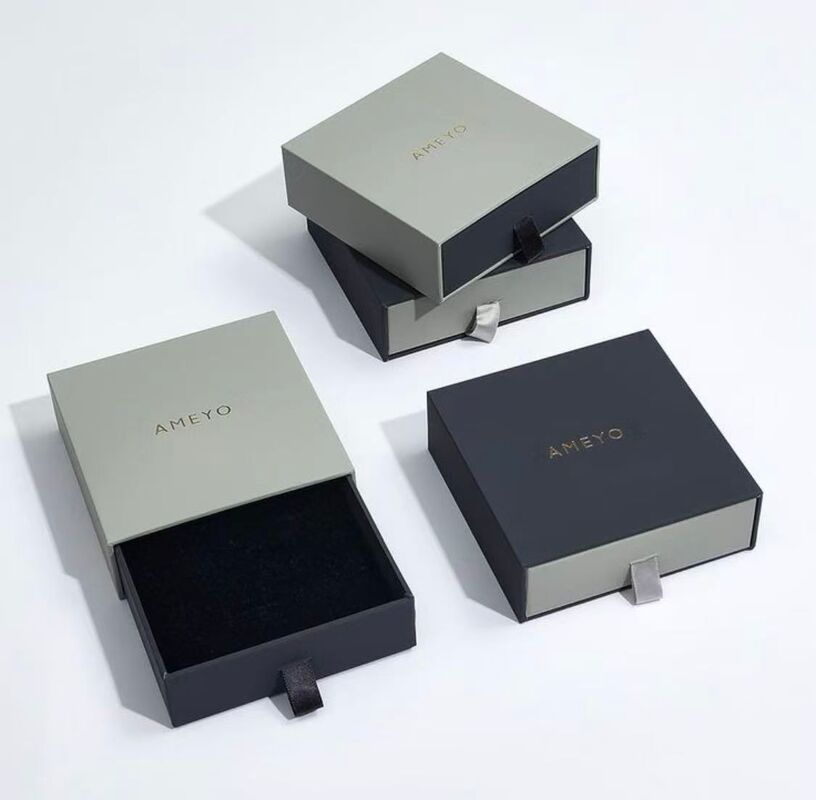

LY-1500CB Automatic Rigid Box Machine is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes etc. more suitable for current packing market.
This machine adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, feed grey board, paste four corners, spot grey board, lift box, wrap box, fold corner edges and form box.
Key Features
- Production speed 25-32pcs/min
- Positioning accuracy ±0.05 mm
- Setting Time 30-40Mins
Excel cut consists of following sections:
| Feeder |
- Feeder control by servo motor.
- Big diameter pneumatic vacuum control valves.
- The rubber pressure roller for the feeding-in paper.
- Double color of conveyor belt , easy for any color of paper.
- The automatic lifting function for feeding stack.
- Feeding stack auto stop when top paper in position Feeder control by servo motor.
|
| Positioning |
- Japanese Yamaha Robot Arm for spotting the box.
- Camera with Japan Lens in 10 million Pixel tracing system.
- Double Camera with XY Spool for positioning.
|
| Corner pasting |
- Adopt none top suction after the box is formed,reduce labor cost for stay Inline.
- Secure it with a downward-pulling suction, allowing the tray to stable fall onto the conveyor belt.
- Conveyor belt feeding system simultaneously transports two matching boxes of different sizes to the positioning section.
- Easy to set up, tape width in 19mm.
|
| Forming Part (within bubble pressing function, no need bubble pressing machine) |
- Automatic setting by servo motors.
- Dual Station smart wrapper for increased production.
- With a bubble pressing function, eliminating the need for a separate bubble pressing machine.
- Virtual cam servo driving system.
- Alarm device for collision detection.
- Lift the box by holding the side of the box.
- Scratch resistant for the paper.
- The minimum forming dimensions is 45*45*15mm.
- The maximum forming dimensions is 550*400*150mm, multiple to do big size box without corner pasting machine.
|
Technical Specifications
| Paper Size |
W: 95-600mm
L: 120-880mm
|
| Paper Thickness |
80-300g/m² |
| Max Paper Stacking Height |
800mm |
| Cardboard Thickness |
1-3mm |
| Finished Box Size (L×W×H) |
Max size: 450*400*150mm
Min size: 55*55*15mm(for rigid box)
Min size: 55*35*15mm(for sleeve box)
|
| Ear Overlapping Size |
120mm |
| Ear cross ear folding size |
7-100mm
|
| Production Capacity |
25-32 pcs/min |
| Precision |
±0.05mm |
| Power Supply |
380V/50Hz |
| Max Power |
37kW/380V |
| Air Pressure |
0.5-0.7 mpa/320L/min |
| Glue Tank Volume |
50kg |
| Machine Weight |
6500kg |
| Machine Size |
L7600 × W4500 × H3300mm |
Process Flow
