Name: LY- HB-3000CB Intelligent 2 In 1 High Speed Rigid Box Making Machine Within Bubble Pressing Functions Automatic Rigid Box Making Machine No Need To Buy Another Bubble Pressing Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-HB3000CB
Price: 135006.00 USD
Availability: InStock

Home > products > Rigid Box Making Machine >

LY- HB-3000CB Intelligent 2 In 1 High Speed Rigid Box Making Machine Within Bubble Pressing Functions Automatic Rigid Box Making Machine No Need To Buy Another Bubble Pressing Machine

intelligent 2 in 1 rigid box making machine

high speed automatic rigid box machine

rigid box making machine with bubble pressing

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

Model Number:

LY-HB3000CB

Document:

LY- 3000CB Intelligent 2 in...ne.pdf

Request A Quote

LY- HB-3000CB Intelligent 2 In 1 High Speed Rigid Box Making Machine Within Bubble Pressing Functions Automatic Rigid Box Making Machine No Need To Buy Another Bubble Pressing Machine

Product Details

Paper Size (Single Sheet):

W:60-420mm L:120-700mm

Paper Size (Double Sheet):

W:60-420mm L:120-700mm

Finished Box Size (Single Sheet):

L:55-450mm W:55-300mm H:12-150mm

Finished Box Size (Double Sheet):

L:55-450mm W:55-300mm H:12-150mm

Paper Thickness:

80-300g/m2

Cardboard Thickness:

1-3mm

Production Speed（Single Sheet）:

25-35 Pairs/min

Production Speed（Double Sheet）:

60-70 Pcs/min

Precision Accuracy:

±0.05mm

Ear Cross Ear Folding Size:

7-100mm

Ear Overlapping Size:

120mm

Power Supply:

380V/50HZ

Total Power:

37KW

Air Pressure:

0.6-0.7mpa/min

Machine Weight:

7200kg

Machine Dimension:

L8100*W6500*H3200mm

Highlight:

intelligent 2 in 1 rigid box making machine

high speed automatic rigid box machine

rigid box making machine with bubble pressing

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiate

Packaging Details

Film and plywood crate

Delivery Time

15-20days

Payment Terms

L/C,T/T

Supply Ability

15 sets/month

LY-RM-1209 No-die Non-metal Flexible Material Cutting Machine Digital Cutting Machine Oscillating Knife Cutting Machine Flatbed Cutter Sample Making Machine Box Sample Cutter Die-free Cutting Machine

Get Best Price

Video

LY-450 Semi Automatic Multiple Ribbon Inserting Machine Able To Past On Cover And Boxes Jewellery Box Making Machine Gift Box Machine Carton Box Making Machine

Get Best Price

Video

LY-HB3000CZ Intellegent 2 In 1 Rigid Box Making Machine Rigid Box making Machine Fully automatic Machine

Get Best Price

Video

LY-800C Intelligent Semi Automatic Wrapping Machine（within Backside Ear Brushing） Gift Box Wrapping Machine Rigid Box Edge Folding Macine

Get Best Price

86-769-23174590

Contact Now

Product Description

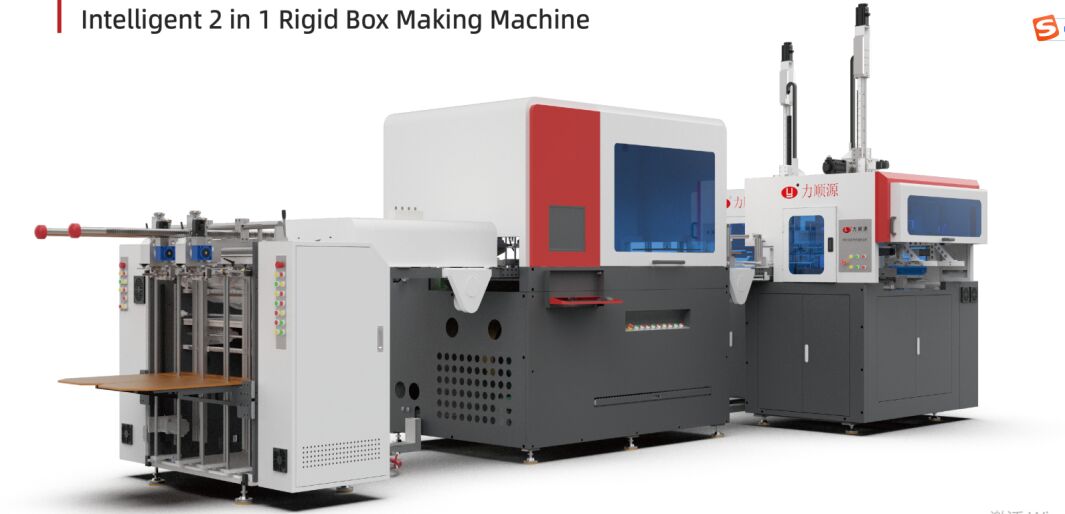

LY-HB-3000CB Intelligent 2 in 1 High Speed Rigid Box Making Machine (with Bubble Pressing)

The LY-3000CB is an intelligent 2-in-1 high-speed rigid box making machine with built-in bubble pressing. Production speed up to 60-70 pcs/min (single side) or 25-35 pairs/min (double side) for normal operation. Suitable for smartphone boxes, cosmetic boxes, jewelry boxes, wine box covers, etc. It adopts servo control and visual positioning system to automatically complete feeding, gluing, positioning, forming, edge wrapping, and bubble pressing. Positioning accuracy ±0.05mm, change-over-time 30 minutes, dual forming stations ensure high output and stable operation.

This machine adopts servo control system and visual positioning system to realize automatic completion of paper feeding, gluing, cardboard feeding, corner pasting, positioning, box forming, edge wrapping, and built-in bubble pressing.

Key Features

Shortest Change-over-time, thereby saving precious machine time
Uses highly accurate Visual Robot arm positioning with German multiple camera system
Dual Forming stations for high output
Includes in-line Bubble pressing module
Production speed up to 70 pcs/min for do one size production
Positioning accuracy ±0.05mm
Change-over-time (job transfer time) in 30 Minutes

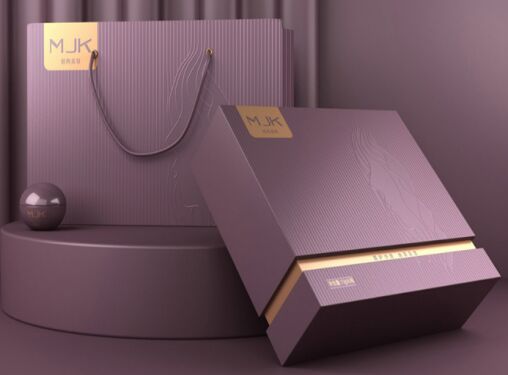

Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…

Excel cut consists of following sections:

Feeder

•Feeder is controlled by a servo motor.

•Paper-feed-in overturn function.

•Big diameter pneumatic vacuum control valves.

•The rubber pressure roller for the feeding-in paper.

•Antistatic platform for paper.

•The automatic lifting function for feeding stack.

•Feeding stack auto stop when top paper in position Feeder control by servo motor.

•Independent controlled paper feeding table and independently controlled sheet roller.

•Avoid the inconsistency of the length of the paper between the two sheets.

Positioning

1. YAMAHA Robot Arm for spotting the box.

2. Camera with in 10 million Pixel tracing system,positioning accuracy can reach 0.05mm.

3. Four Cameras with robots arms working XY Spool for positioning.

Corner pasting

1. Adopt None stop top feeding suction after the box is formed: reduce labor cost for stay inline.

2. Secure it with a downward-pull suction , allowing the tray to stable fall onto the conveyor belt.

3. A dual-station belt feeding system simultaneously transports two matching boxes of different sizes to the positioning section

4.Easy to set up, tape width in 19mm

Forming Part (within bubble pressing function, no need bubble pressing machine)

1. Automatic setting by servo motor

2. Dual Station smart wrapper for increased production.

3. With a bubble pressing function, eliminating the need for a separate bubble pressing machine.

4. Virtual cam servo driving system.

5. Alarm device for collision detection.

6. Lift the box by holding the side of the box.

7. Scratch resistant for the paper.

8.The minimum forming dimensions is 45*45*15mm.

The maximum forming dimensions is 550*400*150mm,

multiple to do big size box without corner pasting machine

Technical Parameters:

Paper size	double sheet	single sheet
	W :60-420mm	W :60-420mm
	L :120-700mm	L :120-700mm
Paper thickness	80-300g/m²
Paper stacking Height	800mm
Grey board thickness	1-3mm
Finished box size	L: 55-450mm	L :55-450mm
	W:55-300mm	W :55-300mm
	H:12-150mm	H :12-150mm
Precision accuracy	±0.05mm
Ear overlapping size	7-100mm
Ear cross ear folding size	120mm
Max power	37KW
Capacity of production	25-35PCS/MIN	60-70PCS/MIN
Power Supply:	380V/50Hz
Air pressure	0.5-0.7mpa/min
Glue tank volume	50KG
Machine dimension:	L8500×W5500×H2000mm
Machine weight:	7200kg
Overall size of equipment	L8100W6500H3200mm
