Automatic Intelligent High-speed Cardboard Box Making Machine
Description
LY-HB2500CK is our hot selling cardboard box making machine with our own patent and it's widely suitable for the production of all kinds of rigid boxes, including cosmetic boxes, smartphone boxes, jewelry boxes,etc.It's double-head forming, and with high speed of production ,greatly increase the output, which meets the needs of market.
Features
1, High speed: 40-45pcs/min
2, Fast for different size box changeover
3, Do not need to change the bade & presing board
4, With more function
5, Easy & convenient to operate
6, With IOT function
7, Positioning accuracy: ±0.05mm
Parameters
|
Paper Size
|
W:95 - 600mm
|
|
L: 120-880mm
|
|
|
Paper thickness
|
80-300g/m2
|
|
Max.paper stacking height
|
800mm
|
|
Cardboard thickness
|
1-3mm
|
|
Finished box size W*L*H |
L:45-350mm
|
|
W:45-250mm
|
|
|
H:15-120mm
|
|
|
Ear overlapping size
|
15-120mm
|
|
Folding size
|
7-100mm
|
|
Production speed
|
35-45pcs/min
|
|
Setting time
|
10-15mins
|
|
Precision
|
±0.1mm
|
|
Power Supply
|
380V/50Hz
|
|
Max power
|
37kw
|
|
Max power(with bubble pressing machine)
|
43kw
|
|
Air pressure
|
0.5-0.7mpa/320NL/min
|
|
Glue tank volume
|
30kg
|
|
Machine weight
|
7500kg
|
|
Machine weight (with bubble pressing machine)
|
9100kg
|
|
Machine size
|
L8000*W4000*H3300mm
|
|
Machine size (with bubble pressing machine)
|
L11600*W4000*H3300mm
|
Detailed images
1. Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper
1 . SCARA (Selective Compliance Nachi Robot Arm) for spotting the grey board box
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning

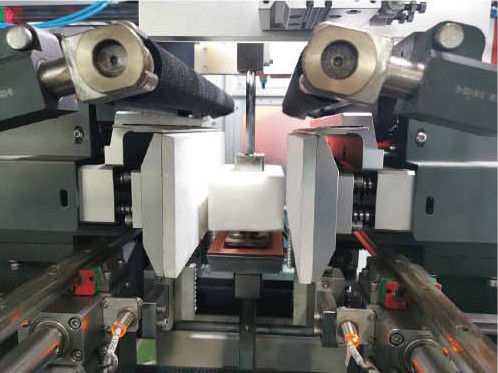

1. Automatic setting by servos
2. Double wrapper to increase production
3. Virtual cam servo driving system
4. Alarm device for colloding
5. Lift the box by holding the sides of the box
6. Scratch resistant for the paper
7. Box-pressing down-side device
Workshop
Our Services & Strength
We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the mask machines and box machines and providing extensive after sales service.
Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each ndividual client’s requirements.
