Place of Origin:
China
Brand Name:
Lishunyuan
Certification:
CE
Model Number:
LY-850SD
Video
Video

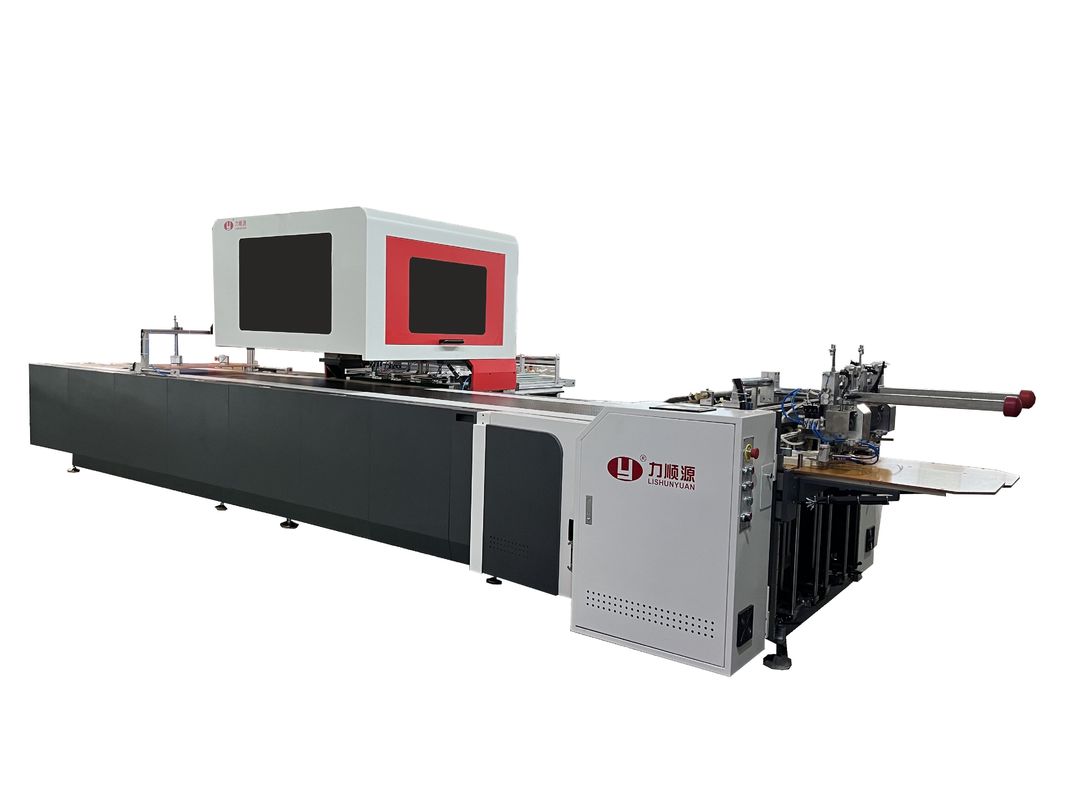

This automatic paper feeding and gluing machine is used for cover paper gluing. It suits for making rigid boxes,covers, ect. It adopts double feeding position and independent control by different servo motor , more stable to run different thickness paper at the same time .
1, Independent control by different servo motor for feeding ,avert double sheet and incline
2, Within 4 sets of high precision cameras and robot arm . box positioning accuracy of ± 0.1mm.
|
Model
|
LY-850SD
|
|
paper size for single sheet |
W :80-800mm
|
|
L :120-900mm
|
|
|
Total power
|
W :80-375mm
|
|
L :120-900mm
|
|
|
Paper thickness
|
100-350g/m2
|
|
cardboard thickness(C*D)
|
＞2mm
|
| size for single case | W :65-500mm |
| L :65-1000mm | |
| size for double case | W :65-375mm |
| L :65-375mm | |
| size fo single box | W:65-400mm |
| L:65-700mm | |
| H:5-120mm | |
| size for double box | W :65-350mm |
| L :65-350mm | |
| H :5-120mm | |
| Precision | ±0.1mm |
| Max power | 11KW |
| Speed for single product | 15-40PCS/MIN |
| Speed for double product | 30-40PCS/MIN |
| Air pressure | 0.4-0.6mpa |
| Power Supply | 380V/50Hz |
| Machine weight | 2000kg |
| Machine dimension | L7500×W2510×H2000mm |
1,With 4 sets of high precision cameras, Independent adjustment, can capture any feature point
2,Double feeders by servo independent control, double paper platforms by stepping motor independent run, easy to setup single paper platform
LiShunyuan was founded in 2002, located in Dongguan city, Guangdong Province, and has a modern standard workshops of 20000 square meters, after 18 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Over the years, Lishunyuan has a claim to over 200 process patents and over 100 product quality attestations.
Service Brand
The company has formed a perfect sales network and a complete after-sales service system, and its products are sold all over the country and exported to more than 40 countries and regions such as Europe, America, southeast Asia, South America, Middle East and Africa.
1. What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2. What is the production time while placing order?---- Within 7-30 workdays.
3. Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
4. How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.
5. Are you a manufacturer?----Yes, we are a manufacturer with over 18 years professional experience .
6. What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
7. Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
