Place of Origin:
China
Brand Name:
Lishunyuan
Model Number:
LY-HB3000CQ
|
Paper size (A*B) |
L: 120-700mm
|
L: 120-700mm
|
|
W: 60-370mm
|
W: 60-600mm
|
|
|
Paper thickness
|
80-300g/m2
|
|
|
Grey board thickness
|
1-3mm
|
|
|
Finished box size(W*L*H) |
L: 45-350mm
|
L: 45-350mm
|
|
W: 45-250mm
|
W: 45-250mm
|
|
|
H: 12-120mm
|
H: 12-120mm
|
|
|
The box size shall be within the dimensions of the paper & the grey board
|
||
|
Positioning accuracy
|
±0.05mm
|
|
|
Production speed
|
50 pcs/min(double)
|
25pcs/min(single)
|
|
Power
|
26KW
|
|
|
Paper stacking Height
|
800mm
|
|
|
Air pressure
|
0.5-0.7MPa
|
|
|
Power Supply
|
380V/50Hz
|
|
|
Machine weight
|
6200kg
|
|
|
Machine size
|
L10000*W6000*H3500mm
|
|

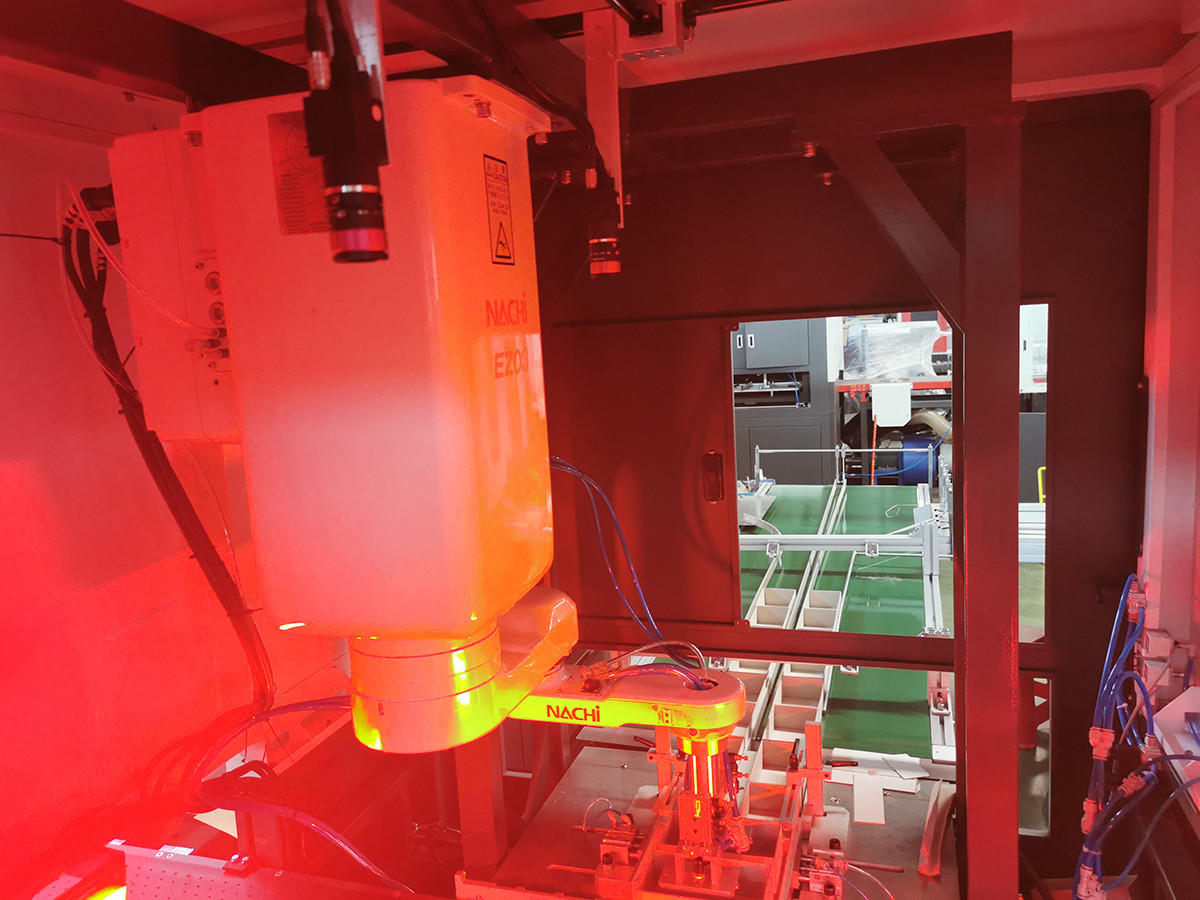

1.The equipment adopts high-precision visual positioning parts with the accuracy of ±0.05mm.
2.The whole equipment uses intelligent PLC control and features in simple operation and friendly human-machine interface.
3.This equipment is suitable for the production of mobile phone boxes,cosmetics boxes,jewelry boxes,moon cake boxes,tea boxes and other boxes.
4.With the production speed up to 50pcs/min.
5.The equipment can produce lid and tray at the same time,saving space.The production balance rate of rigid boxes reaches 100%.
6.When one of the handpiece fails,the other side can produce normally.
