Stable Performance Automatic Positioning Machine For Gift Box Production

Stable Performance Automatic Positioning Machine For Gift Box Production

automatic visual positioning machine

box making equipment

Stable Performance Automatic Positioning Machine

Place of Origin:

China

Brand Name:

Lishunyuan

Model Number:

LY-600CCD

Contact Us
Request A Quote
Product Details
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Weight:
1500kg
Warranty:
1 Year
Type:
Automatic Visual Positioning Machine
Application:
The Positioning During Boxes Production
Power:
18kw
Voltage:
380V
Production Capacity:
Up To 35pcs/min
Dimension(l*w*h):
750*150*200cm
Highlight:

automatic visual positioning machine

,

box making equipment

,

Stable Performance Automatic Positioning Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Plywood crate
Delivery Time
30 days
Payment Terms
L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability
20 sets per month
Product Description

                                              LY-600CCD Visual Positioning Machine

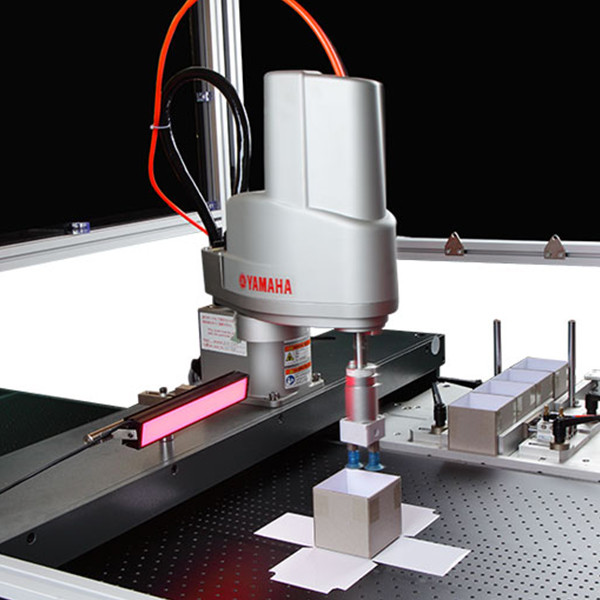

   LY-600CCD adopts the structure design of LY-2012 automatic intelligent box making machine. It uses the servo drive technology during the paperer feeding, gluing and conveyor belt. The positioning part adopts the YAMAHA robot arm and camera imaging, which can achieve the high-accuracy in different kind of boxes producing (such as the rigid box, cylindrical box, octangular box, folding box, wine box,etc). It is suitable for making the high-quality gift box.

Stable Performance Automatic Positioning Machine For Gift Box Production 0



Features



  • 2 industrial cameras with 5 megapixels, and YAMAHA robot arm for positioning accuracy (±0.1mm).
  • Production speed up to 25-35pcs / min.
  • Combine independent HMI control system
  • Stable delivery without double sheets feeding.
  • The independent gluing and positioning module, which can optionally match with edge pasting machine, splicing machine, pneumatic machine, etc.



Parameters


Paper size
L 180-880mm
W 95-600mm
Production speed
≤35pcs/min
Second time positioning accuracy
±0.1mm
Paper thickness
80-300g/m2
Max.paper stacking height
400mm
Cardboard thickness
1-3mm
Glue tank capability
50KG
Machine weight
1500KG
Air pressure
0.6-0.8MPa
Constant power
18KW
Machine dimension
L7500*W1500*H2000mm





FAQ:



1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).



2.What is the production time while placing order?---- Within 7-30 workdays.



3.Do you have stock product to sell?----Normally we do,it depends on how many sets do you need .



4.What is your lead time?----Within 5-30 workdays.



5.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.



6.How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.



7.Are you a manufacturer?----Yes, we are a manufacturer with over 18 years professional experience .



8.What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.



9.Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
