Name: LY-HB3000CZ Intellegent 2 In 1 Rigid Box Making Machine Rigid Box making Machine Fully automatic Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-HB3000CZ
Price: 135,006.00 USD
Availability: InStock

Home > Products > Rigid Box Making Machine >

LY-HB3000CZ Intellegent 2 In 1 Rigid Box Making Machine Rigid Box making Machine Fully automatic Machine

intelligent rigid box making machine

fully automatic rigid box machine

2 in 1 rigid box maker

Place of Origin:

China

Brand Name:

Li Shunyuan

Certification:

Model Number:

LY-HB3000CZ

Document:

LY- HB3000CZ Intelligent 2 ...ne.pdf

Request A Quote

Product Details

Model:

LY-HB3000CZ

Finished Product Max Size:

450mm*300mm*160mm

Finished Product Min Size:

55mm*55mm*15mm

Paper Staking Height:

800mm

Speed:

50-70pcs/min

Positioning Accuracy:

±0.05mm

Air Pressure:

0.5-0.7mpa/min

Total Power/Voltage:

25KW/AC380V

Max Weight:

8200KG

Machine Dimension:

L8100mm*W6500mm*H3200mm

Highlight:

intelligent rigid box making machine

fully automatic rigid box machine

2 in 1 rigid box maker

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Film and plywood crate

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

15 sets/month

LY-800C Intelligent Semi Automatic Wrapping Machine（within Backside Ear Brushing） Gift Box Wrapping Machine Rigid Box Edge Folding Macine

Get Best Price

Video

LY-720TJ Fully Automatic Foiling Stamping Machine High Precision Embossing Bronzing Machine For Gift Wine Cosmetic Luxury Shoe Boxes

Get Best Price

LY-RM-1209 No-die Non-metal Flexible Material Cutting Machine Digital Cutting Machine Oscillating Knife Cutting Machine Flatbed Cutter Sample Making Machine Box Sample Cutter Die-free Cutting Machine

Get Best Price

Video

LY-TCJ250 Automated Lining Application Machine Rigid Box Lining Machine Gift Box Lining Machine inner liner pasting machine

Get Best Price

+86-13802379158

aureal@dglyjx.com

86-769-23174590

Contact Now

Product Description

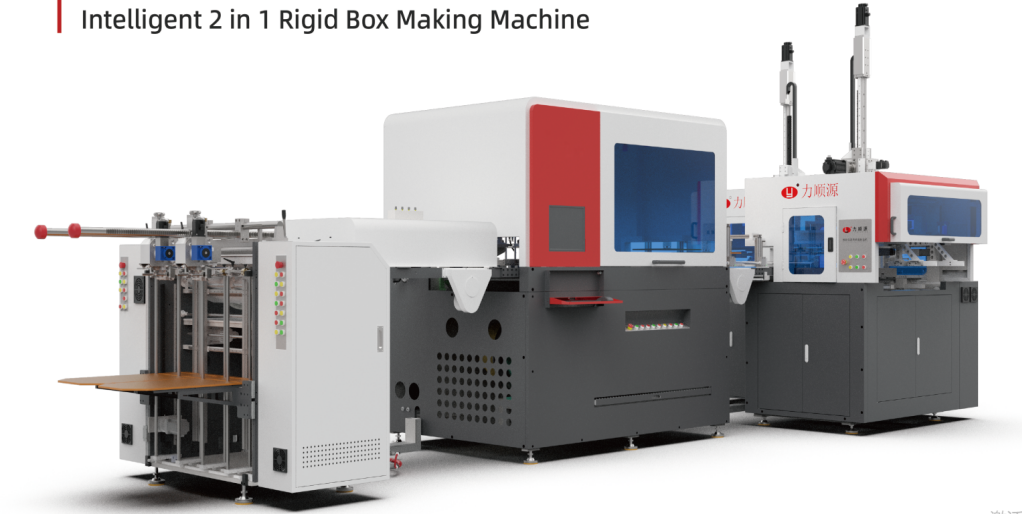

LY-HB 3000CZ Intelligent 2 in 1 Rigid Box Making Machine

LY-HB3000CZ Intelligent Integrated Top-Bottom Box (lntelligent 2 in 1 Rigid Box) Production Line,is developed and launched by Lishunyuan to meet the market demand after 2 years precipiaton with more than 10 years of design and production experiencein high-quality packaging machinery industry.It's suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes.

LY-HB3000CZ Intellegent 2 In 1 Rigid Box Making Machine Rigid Box making Machine Fully automatic Machine

Key Features

Shortest Change-over-time, thereby saving precious machine time
Uses highly accurate Visual Robot arm positioning with German multiple camera system
Dual Forming stations for high output
Includes in-line Bubble pressing module
Production speed up to 66 pcs/min for do one size production
Positioning accuracy ±0.05mm
Change-over-time (job transfer time) in 30 Minutes
Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…

Excel cut consists of following sections:

Feeder

Feeder is controlled by a servo motor
Paper-feed-in overturn function
Big diameter pneumatic vacuum control valves
The rubber pressure roller for the feeding-in paper
Antistatic platform for paper
The automatic lifting function for feeding stack
Feeding stack auto stop when top paper in position Feeder control by servo motor
Independent controlled paper feeding table and independently controlled sheet roller
Avoid the inconsistency of the length of the paper between the two sheets

Positioning

YAMAHA Robot Arm for spotting the box
German Balser camera with Japanese Lens in 10 million Pixel tracing system
4 Cameras with double robots arms working XY Spool for positioning

Forming Part & Bubble Pressing

LY-HB3000CZ Intellegent 2 In 1 Rigid Box Making Machine Rigid Box making Machine Fully automatic Machine

Automatic Setting by servo motors
Dual Station smart wrapper for increased production
Virtual cam servo driving system
Alarm device for collision detection
Lift the box by holding the side of the box
Scratch resistant for the paper
Box-pressing down-side device

Electric Control System

Automatic control by servo motors for stable operations
Transfer mold fast, quick adjust machine

Technical Parameters

Paper size(A*B)	single sides	double sides
	W :60-420mm	W :60-420mm
	L :120-700mm	L :120-700mm
Paper thickness	80-300g/m²
Greyboard thickness	1-3mm
Finished box size(WLH)	L: 55-450mm	L :55-450mm
	W:55-300mm	W :55-300mm
	H:12-160mm	H :12-160mm
Precision accuracy	±0.05mm
Paper atacking height	800mm
Air Pressure	0.5-0.7mpa/min
Max power	37KW
Capacity of production	50-70 PCS/MIN	25-35 Pairs/MIN
Power Supply	380V/50Hz
Glue tank volume	50KG
Machine dimension	L8100×W6500×H3200mm
Machine weight	7200kg

Process Flow

LY-HB3000CZ Intellegent 2 In 1 Rigid Box Making Machine Rigid Box making Machine Fully automatic Machine

Packing and Shipping

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

LiShunyuan modern facility and workshop

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Manufacturing Workshop

Industry Exhibitions

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
