LY-750B Automatic Corner Pasting Machine (Intelligent Set-up) Corner Pasting Machine

LY-750B Automatic Corner Pasting Machine (Intelligent Set-up) Corner Pasting Machine

automatic corner pasting machine with intelligent setup

box corner pasting machine with warranty

LY-750B corner pasting machine

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

CE

Model Number:

LY-750B

Contact Us
Request A Quote
Product Details
Model:
LY-750B
Maximum Paper Size:
740*640mm
Paper Thickness:
1-4mm
Box Size (max):
L500*W400*H150mm
Box Size (min):
L80*W60*H20mm
Sleeve Box Size (max):
L400*W120*H150mm
Sleeve Box Size (min):
L80*W30*H20mm
Paper Stack Height:
1000mm
Production Speed:
25-45 PCS/min
Power Supply:
380V/50HZ
Total Power:
3.88KW
Tape Width Size:
19mm
Machine Weight:
1280KG
Machine Size:
2250*2100*2200mm
Highlight:

automatic corner pasting machine with intelligent setup

,

box corner pasting machine with warranty

,

LY-750B corner pasting machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiate
Packaging Details
Film and plywood crate
Delivery Time
15-20days
Payment Terms
T/T
Supply Ability
15 sets/month
Product Description

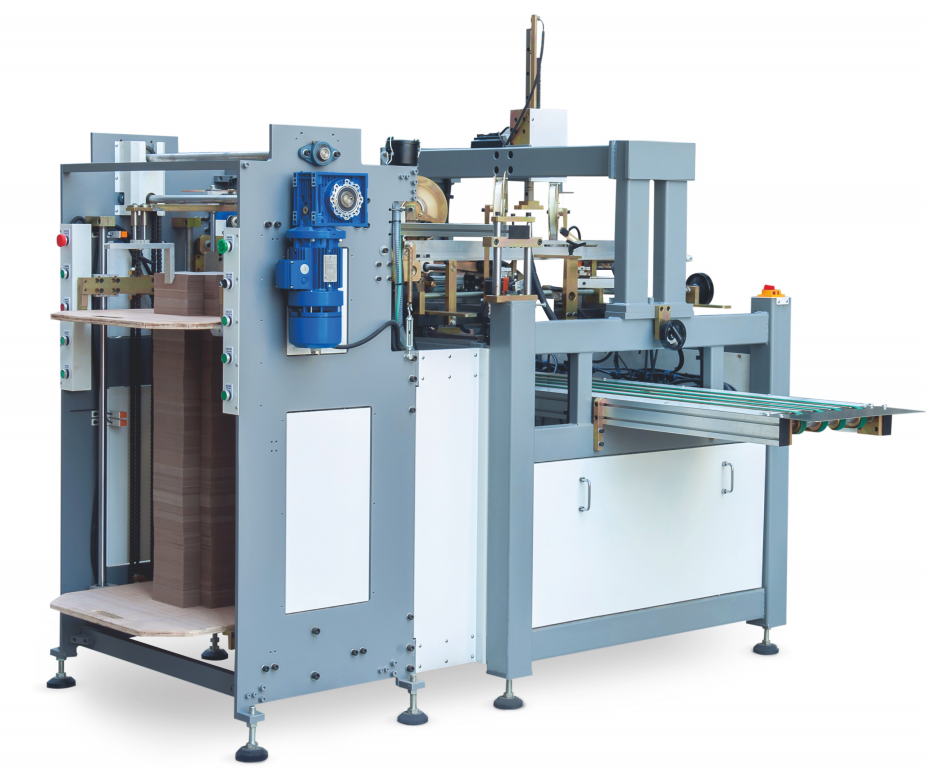

LY-750B Automatic Corner Pasting Machine (Intelligent Set-up)

This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Featuring an intelligent setup interface system that is simple, easy to learn, understand and operate. Driven by servo motors, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.

LY-750B Automatic Corner Pasting Machine overview
Key Features
  • Setting up time in 10 minutes
  • Full servo drive control system and PLC programming ensure accuracy and performance
  • Non-stop feeding reduces labor intensity and decreases machine stopping time
  • Paper feeding adopts belt-driven pull-out system, effectively increasing production output
  • Production efficiency is 3 to 5 times that of traditional manual corner pasting
  • Multiple functions capable of handling square boxes and sleeves boxes
Product Examples

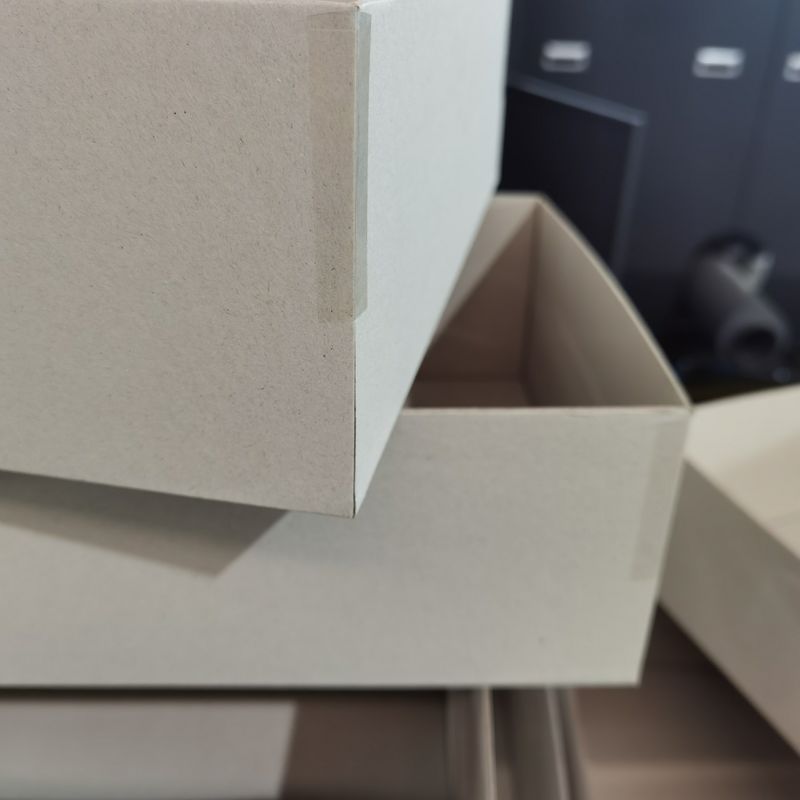

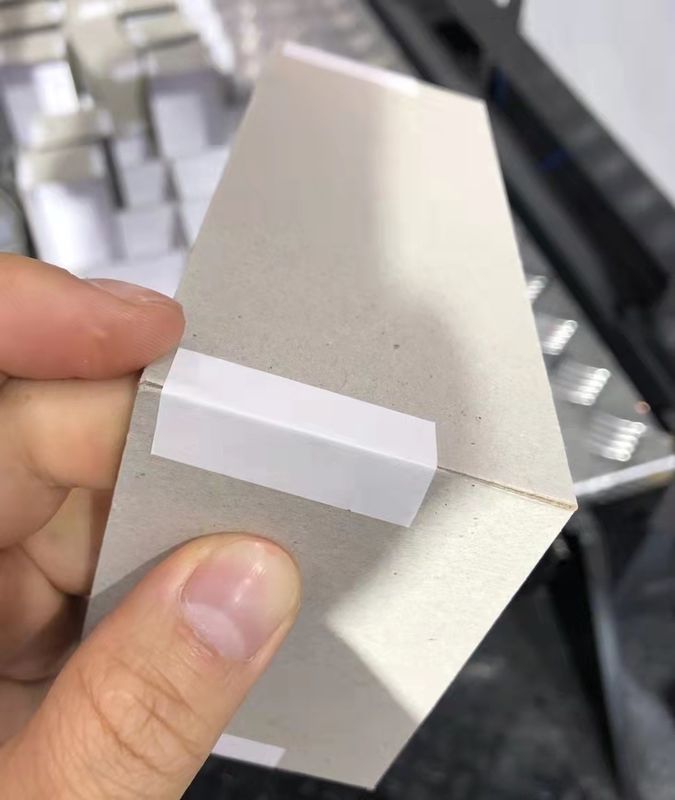

Corner pasting machine product example 1
Corner pasting machine product example 2
Corner pasting machine product example 3
Corner pasting machine product example 4
Corner pasting machine product example 5
Corner pasting machine product example 6
Product Types

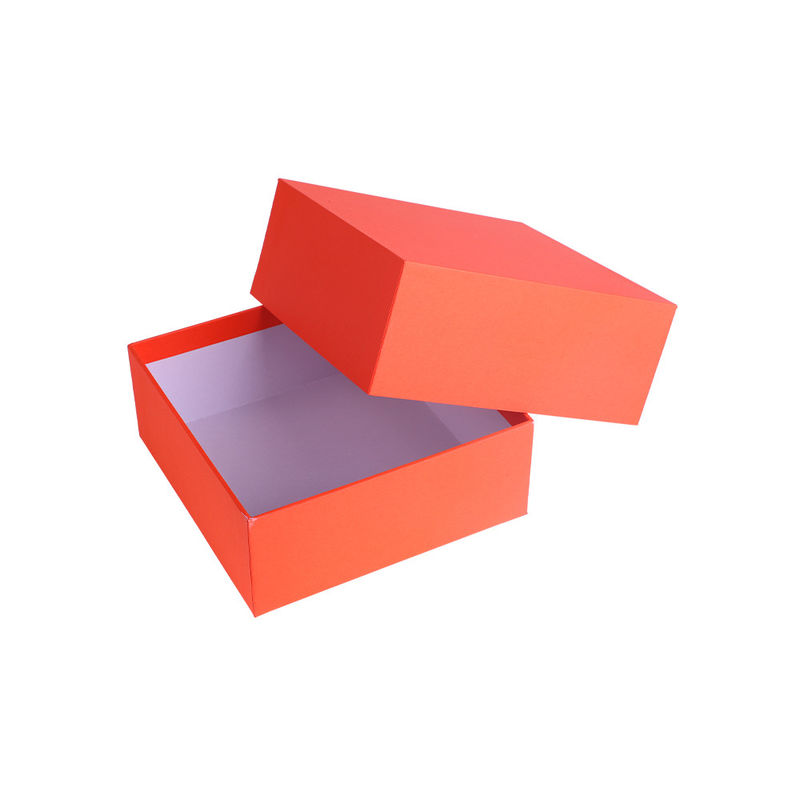

Various product types handled by corner pasting machine
Technical Specifications
Model LY-750B
Maximum paper size 740×640mm
Paper thickness 1-4mm
Box size (max) L500×W400×H150mm
Box size (min) L80×W60×H20mm
Sleeve box size (max) L400×W120×H150mm
Sleeve box size (min) L80×W30×H20mm
Paper stack height 1000mm
Production speed 25-45 pcs/min
Power supply 380V/50Hz
Total power 3.88kw
Air pressure 0.5-0.8Mpa
Tape width size 19mm
Machine dimension 2550×2100×2200mm
Machine weight 1280kg
Packing and Shipping
Machine packaging for shipment
Secured machine ready for transport
Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

LiShunyuan modern facility and workshop
Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications
Quality management certification
Industry compliance certification
Safety standards certification
International quality certification
Manufacturing excellence certification
Quality After-Sales Service Commitment
  • 1 Hour Service: We respond to service requests within one hour with solution recommendations
  • 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
  • Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
  • Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
  • Pre-sale Service: Comprehensive training programs with professional engineers before delivery
  • Sale Services: Installation, debugging, and one week of free training services upon machine arrival
  • After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
