LY-850DN Multiple Double Sheet Positioning Machine Premium Gift Making Machine Drawer Box Making Machine

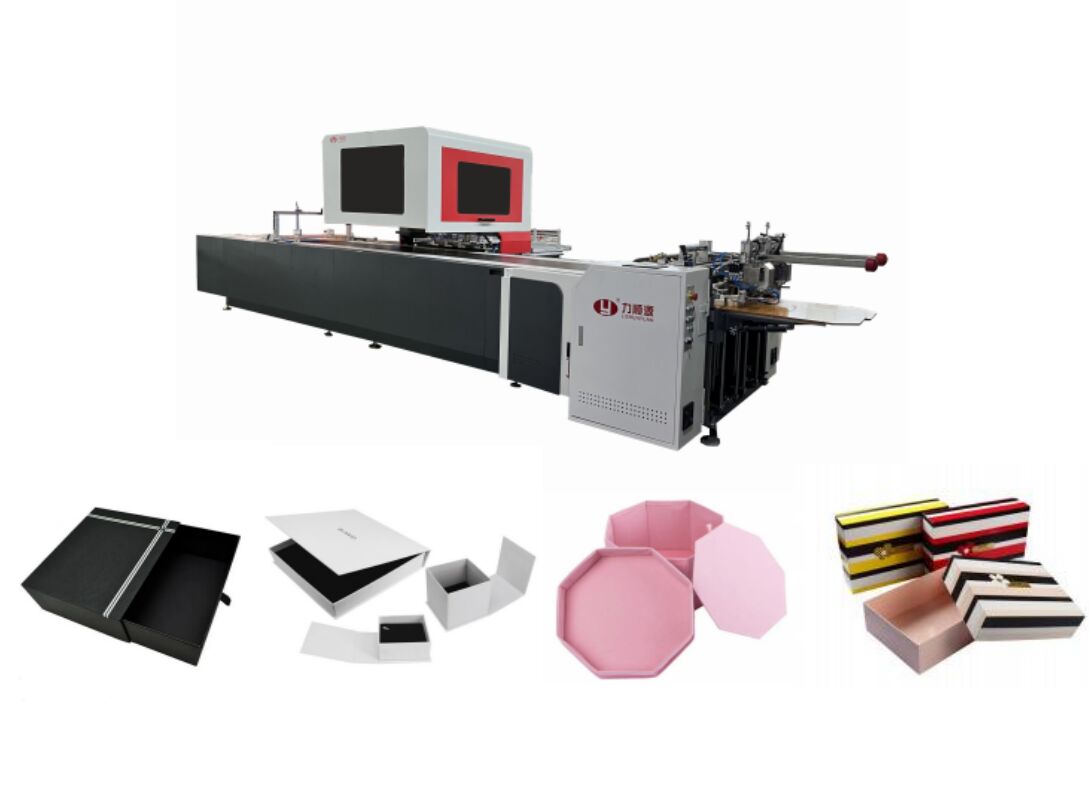

LY-850DN Multiple Double Sheet Positioning Machine

Facility profile:

• 1. Double feeding position and independent control by different servo motor,
• More stable to run different thickness paper at the same time.
• 2.Independent control by different servo motor for feeding, avert double sheet and incline.
• 3.Within 4 sets of high precision cameras and YAMAHA robot arm,
• Positioning accuracy of ± 0.05mm.
• YAMAHA robot arm are adopted to accurate position all kinds of product ,

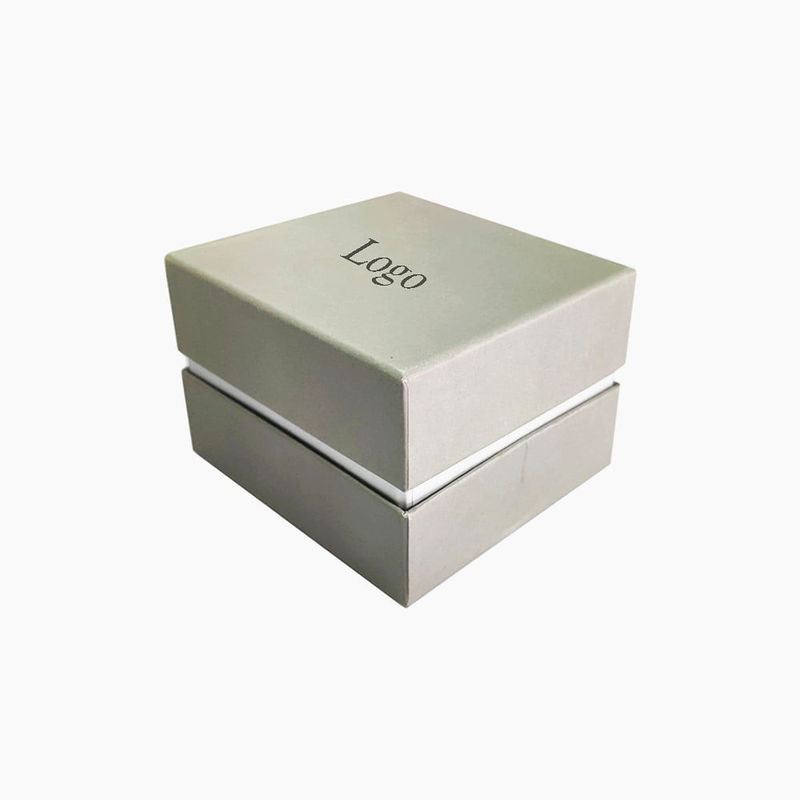

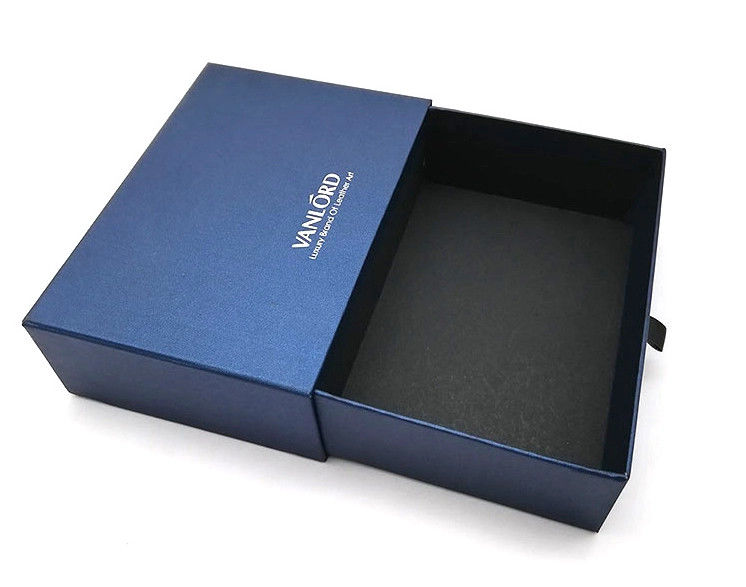

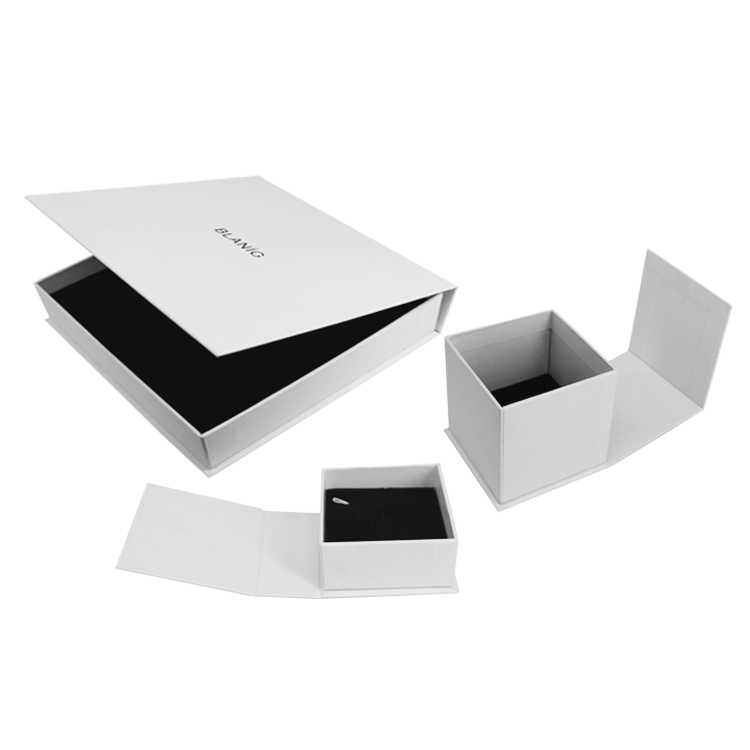

• such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box ,etc.
• 4.Able to production Rigid Box and Hard Cover(Case Maker) at the same time
• 5.Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
• 6.Easy to setup enhance productivity and increase enterprise profit
• 7.Decreased your overlapping investment for meeting products demand,
• boosted machine’s service

Details:

Separate feeding control by servo	Four cameras	YAMAHA Robot arm
1. Feeder is controlled by servo motor. And separate servo control with different lifting function for feeding stack. 3. Independent controlled feeding table and independently controlled sheet roller. Avoid the inconsistency of the length of the paper between the two sheets.	1. German Balser camera with Japanese Lens in 10 million Pixel tracing system 2.Four Cameras with YAMAHA robot working XY Spool for placement. 3.Positioning accuracy reach ± 0.05mm	1.Multiple Robot Arm for spotting the box or covers. 2.The arm able to working with only two boxes or separate with big sheet of cover.
Functions for the hard cover	Functions for feeding double boxes	Functions for lining
1. Hardcover size able to do 1000*500mm. 2. Able to do separate board maximum 6 pcs . 3. Minimum spine is 30mm.(able to modify to 15mm.	1. Able to working two boxes or box and cover at same time. 2. Corner pasting able to connect online.	1. Hardcover size able to do 1000*500mm. 2. lining with bottom section,first suck down then push to the positioning area, avoid scratch.

Process flow:

For boxes:

For hard cover:

For sleeve boxes:

Machine parameters:
