Name: LY 850DN Automatic Double Box Positioning Machine Paper Feeding Machine rigid box sleeve Jewelry shoe luxury Cosmetic Gift Shoe Box Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-850DN
Price: 135,006.00 USD
Availability: InStock

Home > Products > Paper Feeding Machine >

LY 850DN Automatic Double Box Positioning Machine Paper Feeding Machine rigid box sleeve Jewelry shoe luxury Cosmetic Gift Shoe Box Machine

automatic double box positioning machine

paper feeding machine for rigid boxes

shoe box machine with warranty

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

Model Number:

LY-850DN

Document:

LY-850 Double Feeding Posit...ne.pdf

Request A Quote

Product Details

Paper Size:

SingleW:80-800mm L:120-1000mm DoubleW:80-375mm L:120-900mm

Paper Thickness:

100-350g/m2

Paper Thickness:

100-350g/㎡

Finished Box Single Size:

L: 65-700mm W：65-400mm H：5-120mm

Finished Box Double Size:

L ：65-350mm W ：65-350mm H ：5-120mm

Finished Case Size:

Single L:65-1000mm W:65-500mm Double L:65-375mm W:65-375mm

Positioning Accuracy:

±0.05mm

Min Width Of Spine:

30mm

Gap Of Case:

1-4mm

Capacity Of Production:

Single:25-45PCS/MIN Double:30-45PCS/MIN

Max Power:

11KW

Voltage:

380V

Weight:

2000KG

Dimension:

L7415×W2510×H2000mm

Highlight:

automatic double box positioning machine

paper feeding machine for rigid boxes

shoe box machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

film and plywood crate

Delivery Time

15 days

Payment Terms

T/T

Supply Ability

20 sets/month

LY 850DN Automatic Double Box Positioning Machinepaper folding machine automatic paper folder

Get Best Price

LY-SY-850-A High Speed Automatic 80mm-800mm Paper Feeding Machine Gluing Feeding Paper

Get Best Price

Video

LY-SJ-650-A Feeder Auto Feeding&Gluing Machine Speed Up O 20- 50 Units/Min

Get Best Price

Feeding Paper Width 60 to 600mm Paper Feeding Machine Incorporating Vacuum Suction Feeding Method and 380V 50Hz Power Supply for Paper Handling

Get Best Price

13798714062

vanessa@dglyjx.com

86-769-23174590

Contact Now

Product Description

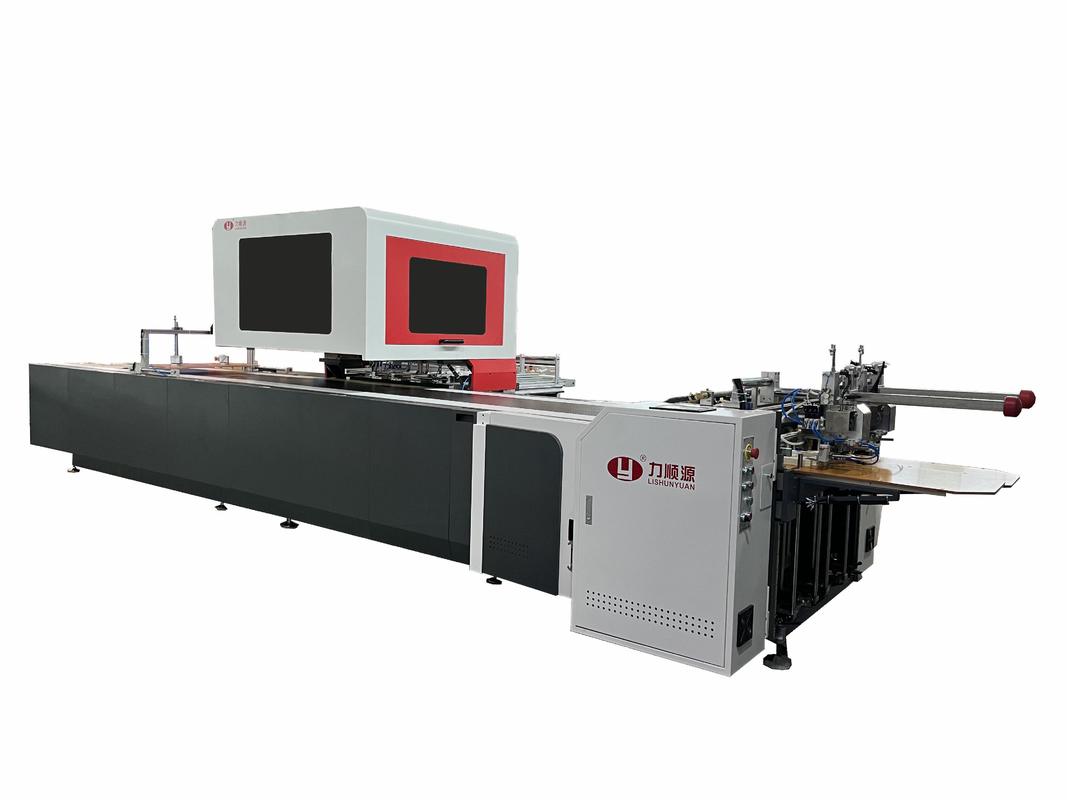

Automatic Double Box Positioning Machine For Phone Box, Gift Box,Case Maker

LY 850DN Automatic Double Box Positioning Machine Paper Feeding Machine rigid box sleeve Jewelry shoe luxury Cosmetic Gift Shoe Box Machine

Description

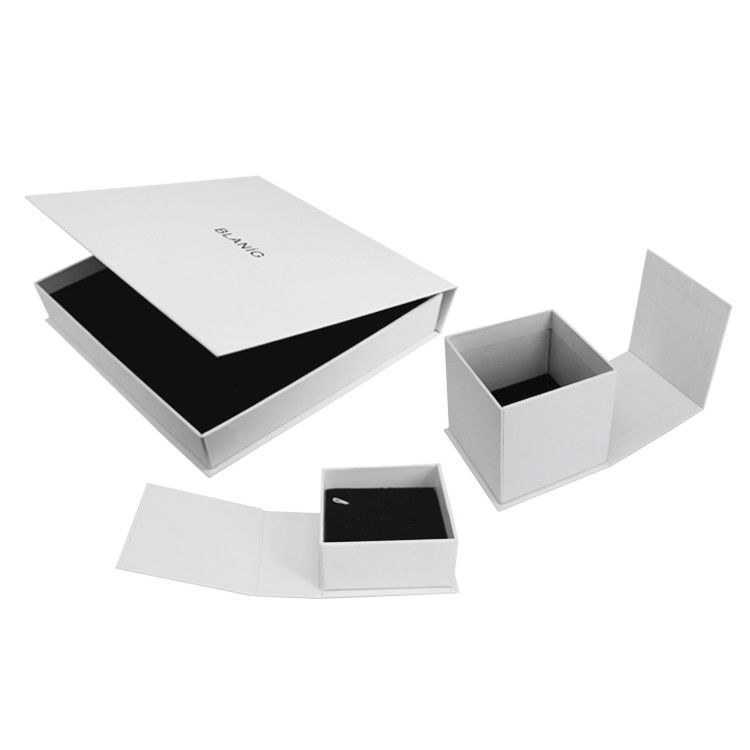

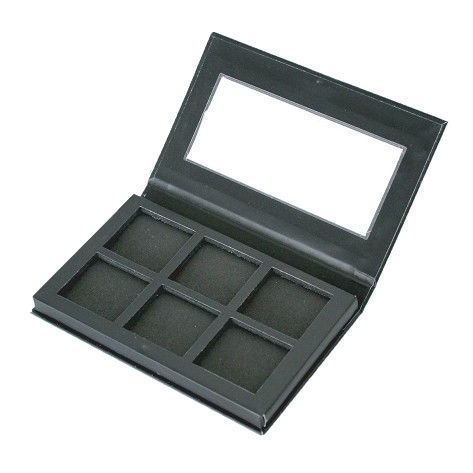

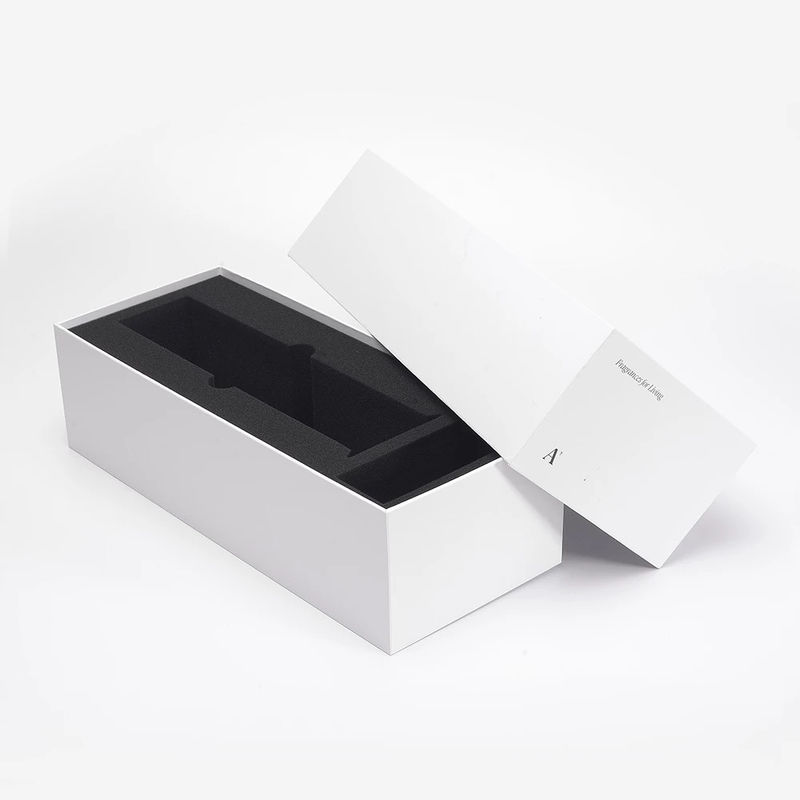

The Double Visual Positioning Gluing Machine is suitable for various high-quality gift boxes that require precise gluing, such as phone boxes, cosmetic boxes, jewelry boxes, watch boxes, and wine boxes.
It can achieve high-accuracy positioning and gluing for rigid boxes, case makers, drawer boxes, irregular-shaped boxes, and more.

Product Features

1. Double feeding position and independent control by different servo motor. More stable to run different thickness paper at the same time.

2. Independent control by different servo motor for feeding, avert double sheet and incline.

3. Within 4 sets of high precision cameras and YAMAHA robot arm. Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product, such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box ,etc.

4. Able to production Rigid Box and Hard Cover(Case Maker) at the same time

5. Able to production box and case at the same time, Capacity up to35-45 PCS/Min.

6. Easy to setup enhance productivity and increase enterprise profit

7. Decreased your overlapping investment for meeting products demand, boosted machine’s service

Details:

Separate feeding control by servo	Four cameras	YAMAHA Robot arm

1. Feeder is controlled by servo motor. And separate servo control with different lifting function for feeding stack. 3. Independent controlled feeding table and independently controlled sheet roller. Avoid the inconsistency of the length of the paper between the two sheets.	1. German Balser camera with Japanese Lens in 10 million Pixel tracing system 2. Four Cameras with YAMAHA robot working XY Spool for placement. 3. Positioning accuracy reach ± 0.05mm	1. Multiple Robot Arm for spotting the box or covers. 2. The arm able to working with only two boxes or separate with big sheet of cover.

Functions for the hard cover	Functions for feeding double boxes	Functions for lining
1. Hardcover size able to do 1000*500mm. 2. Able to do separate board maximum 6 pcs . 3. Minimum spine is 30mm.(able to modify to 15mm.	1. Able to working two boxes or box and cover at same time. 2. Corner pasting able to connect online.	1. Hardcover size able to do 1000*500mm. 2. lining with bottom section,first suck down then push to the positioning area, avoid scratch.

Process flow:

For boxes:

LY 850DN Automatic Double Box Positioning Machine Paper Feeding Machine rigid box sleeve Jewelry shoe luxury Cosmetic Gift Shoe Box Machine

For hard cover:

LY 850DN Automatic Double Box Positioning Machine Paper Feeding Machine rigid box sleeve Jewelry shoe luxury Cosmetic Gift Shoe Box Machine

For sleeve boxes:

LY 850DN Automatic Double Box Positioning Machine Paper Feeding Machine rigid box sleeve Jewelry shoe luxury Cosmetic Gift Shoe Box Machine

Machine Parameters:

Paper size	single sheet	double sheet
	W :80-800mm	W :80-375mm
	L :120-1000mm	L :120-900mm
Paper thickness	100-350g/m2
cardboard thickness	2＞mm
Finished box size	L: 65-700mm	L :65-350mm
	W:65-400mm	W :65-350mm
	H:5-120mm	H :5-120mm
Finished case size	L:65-1000mm	L :65-375mm
	W:65-500mm	W :65-375mm
Precision accuracy	±0.05mm
Max power	11KW
Min width of spine	30mm
Gap of case	1-4mm
Capacity of production	25-45PCS/MIN	30-45PCS/MIN
Power Supply:	380V/50Hz
Machine dimension:	L7415×W2510×H2000mm
Machine weight:	2000kg

Apply to:

Company Introduction

LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

LY 850DN Automatic Double Box Positioning Machine Paper Feeding Machine rigid box sleeve Jewelry shoe luxury Cosmetic Gift Shoe Box Machine

Workshop

Packing and Shipping

FAQ:

1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).

2.What is the production time while placing order?---- Within 7-30 workdays.

3.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
