Name: LY-1050C- Automatic Lining Machine With Visual Positioning Lining Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-500HJ
Price: 135,006.00 USD
Availability: InStock

Home > products > Automatic Case Making Machine >

LY-1050C- Automatic Lining Machine With Visual Positioning Lining Machine

Automatic Lining Machine with Visual Positioning

Automatic Case Making Machine with Visual

LY-1050C Automatic Lining Machine

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

Model Number:

LY-500HJ

Document:

LY-1050C Automatic Lining M...ne.pdf

Request A Quote

Product Details

Paper Size(L*W):

L:120-1100mm W:95-850mm

Size for Lining(L*W):

L:120-1050mm W:60-7500mm

Paper Thickness::

80-400gsm

Board Thickness::

400-1500gsm

Precision accuracy::

±0.05mm

Speed::

15-25 Sheets/min

Power Supply：:

380V/220V/50Hz/3phases

Glue Tank Capacity::

50kg

Constant Power::

11.5kw

Machine Size::

L8000×W3300×H2600mm

Machine Weight::

5100kg

Highlight:

Automatic Lining Machine with Visual Positioning

Automatic Case Making Machine with Visual

LY-1050C Automatic Lining Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiate

Packaging Details

pack in wooden case

Delivery Time

15-20days

Payment Terms

L/C,T/T

Supply Ability

20 sets per month

LY-1050C Automatic Lining Machine Visual positioning Lining Machine

Get Best Price

LY-1050C Automatic Lining Machine Lining Machine Paper Mounting Machine Cardboard Laminating Machine

Get Best Price

Video

LY-1050C- Automatic Lining Machine With Visual Positioning Lining Machine

Get Best Price

LY-900SMB Automatic Case Making Machine Hardcover Case Maker Four Side Wrapping Machine

Get Best Price

86-769-23174590

Contact Now

Product Description

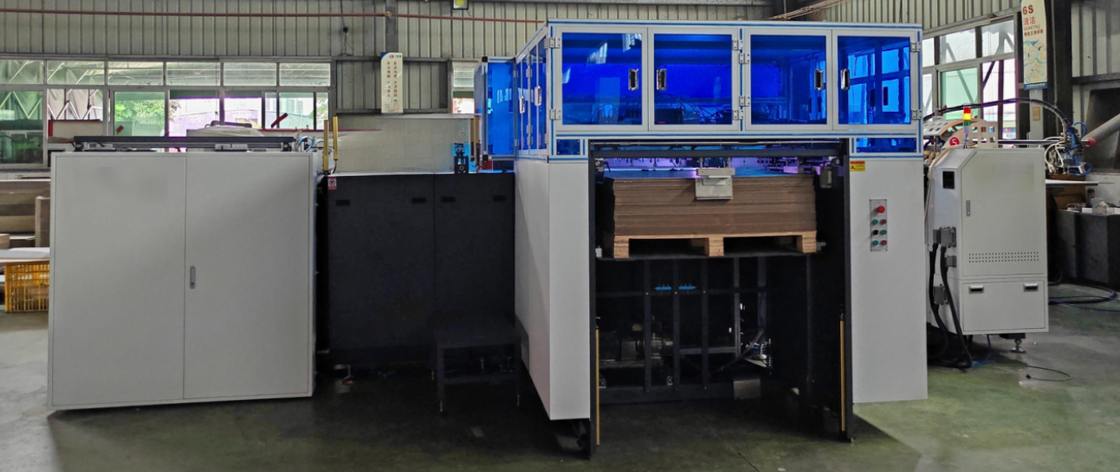

LY-1050C Automatic Lining Machine With Visual Positioning

LY-1050C Automatic Lining Machine (Visual Positioning)

Facility Profile

Independent control by different servo motor for feeding
Equipped with 2 sets of high precision cameras with positioning accuracy of ±0.05mm
Servo robot arm for accurate positioning of various products including hardcover and lining
Capable of producing box and case simultaneously with capacity up to 15-20 PCS/Min
Easy setup to enhance productivity and increase enterprise profit

Technical Details

Key Features:

Printer's cam gear structure catches one piece of paper and blows it into the roller, reducing defective percentage
Handles paper specifications from 80g/㎡ to 300g/㎡ to expand business scope
Circulatory system suitable for hot & white glue to avoid splashing and reduce cleaning time
Heating system with regular timing and constant temperature to eliminate waiting time
Internal blender ensures even glue viscosity and reduces defective percentage
Independent servo motors for feeder, roller, and conveyor belt with strong coordination
Gluing roller made of medium carbon steel with 304 stainless steel surface for durability and easy cleaning

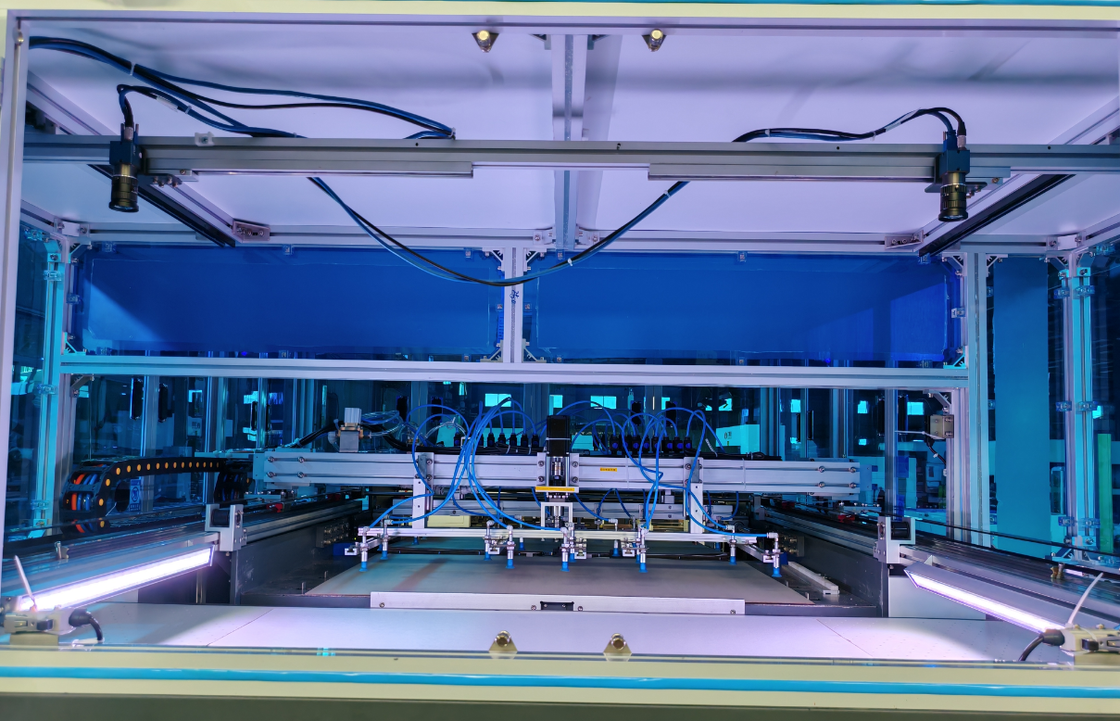

Positioning System:

Fully servo Robot Arm for spotting the gray board
Two cameras with 10 million pixel lens tracing system
Double Camera with XY Spool for positioning
Positioning accuracy of 0.05mm
Material storage area with pre-feeding and secondary positioning mode

Handling System:

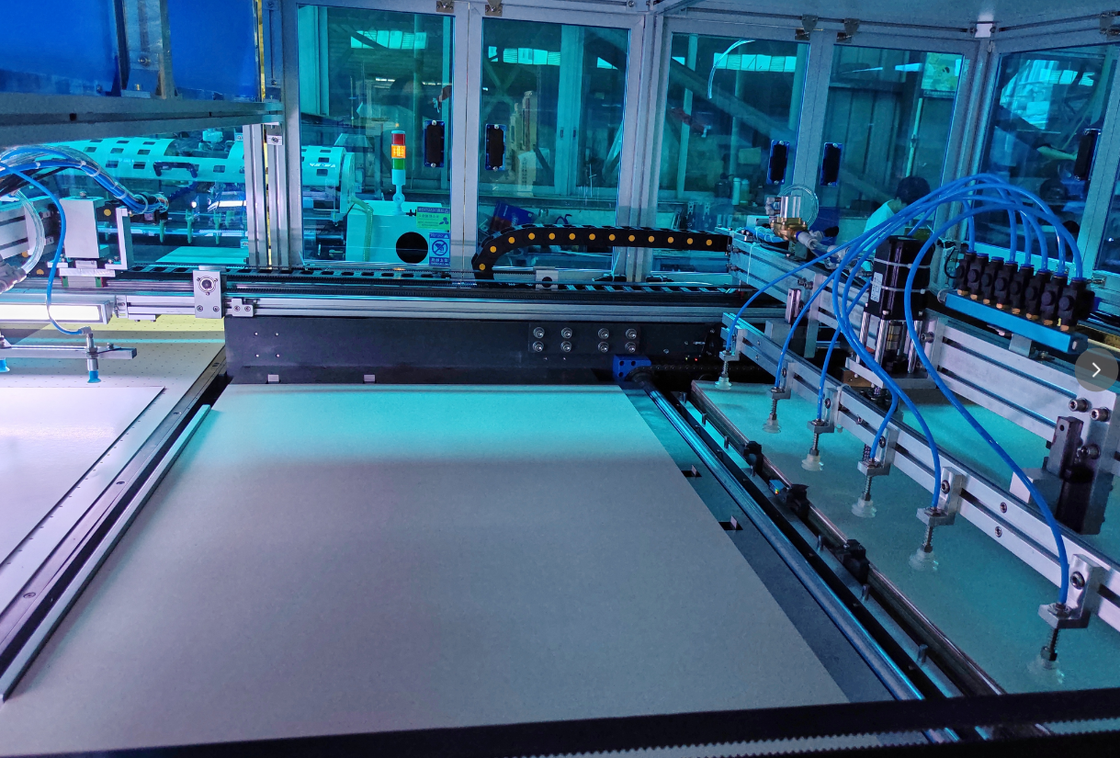

Robot suction arm for picking operations

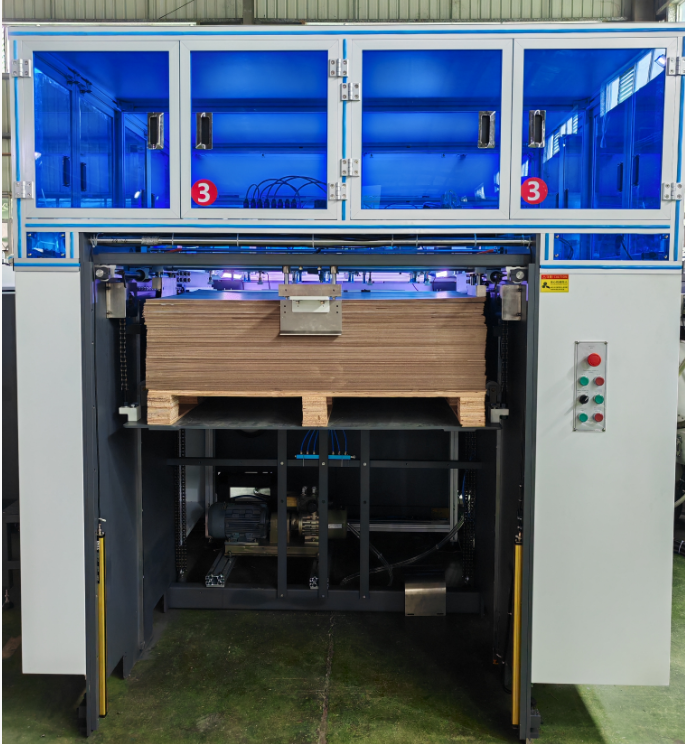

Whole pallet feeding eliminates manual handling and reduces labor costs
Automatic receiving platform with stack mechanism ensures paper board flatness

Technical Parameters

Parameter	Specification
Model	LY-1050C
Paper Size (L*W)	L: 120-1100mm W: 95-850mm
Size for Lining (L*W)	L: 120-1050mm W: 60-7500mm
Paper Thickness	80-400gsm
Board Thickness	400-1500gsm
Precision Accuracy	±0.05mm
Speed	15-25 sheets/min
Power Supply	380V/220V/50Hz/3 phases
Glue Tank Capacity	50kg
Constant Power	11.5kw
Machine Size	L8000×W3300×H2600mm
Machine Weight	5100kg
