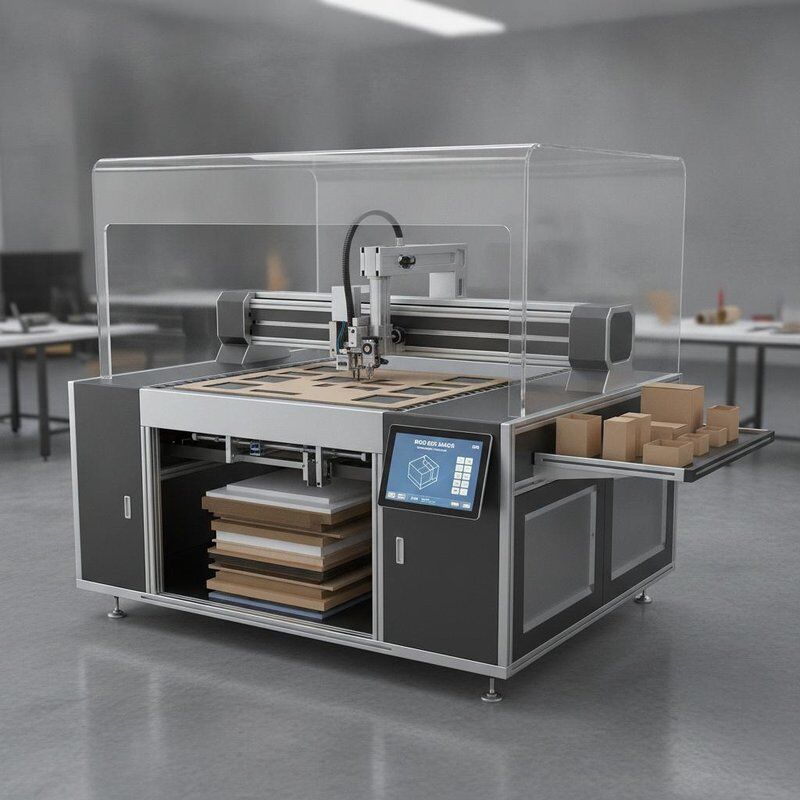

Rigid Box Making Machine Designed for Sample Making and Small Batch Customized Production with Flexible Material Cutting

The integrated steel frame is welded from thickened high-carbon steel, ensuring no deformation or vibration under long-term high-speed operation. It provides stable mechanical performance, guaranteeing cutting accuracy and machine longevity.

Built-in suction system that intelligently activates vacuum zones based on material size, delivering stronger and more uniform hold-down and significantly improving sheet flatness. It prevents edge lifting and shifting, and is suitable for both thin and thick boards.

Two independently driven work heads allow multiple tools to operate continuously, and tools are interchangeable between modules. Thus, one machine handles cutting, creasing, grooving, and plotting.With a maximum cutting thickness of 50mm, the machine is compatible with corrugated board, grey board, paperboard, thin foam, leather, and other sheet materials, meeting daily sample-making needs.

The built-in automatic tool setting system enables one-touch auto-setting and length compensation after a tool change, requiring no manual calibration. This ensures fast changeover with high precision.The high-precision servo-driven transmission system delivers cutting accuracy up to ±0.05mm and produces clean, burr-free edges.

You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve.

Key components are protected against dust and debris, resulting in low failure rates and simple routine maintenance. Additionally, low energy consumption ensures environmentally friendly and cost-effective operation.Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer sample requests.

1.Grooving (V/U-Groove)

V/U grooving switchable, one-step forming for rigid & soft materials.

2.Half-Cut Die Cutting

Half-cut die cutting, cuts top layer only for easy-tear & connecting parts.

3.Creasing

Uniform creasing, no cracking or wrinkling when folding.

4.Full-Cut Die Cutting

No mold required, precise full-through cutting, suit for small-batch sampling. High-precision cutting with no wrinkling on thin paper and no edge bursting on thick paper.

5.EVA Cutting

Special non-stick cutter, smooth and clean EVA cutting.

6.Corrugated Board Cutting

Integrated cutting, creasing, and slotting for accurate reproduction of carton structures.

7.Adhesive Label Cutting

Precision-controlled depth die-cutting that cuts through only the face paper and adhesive layer while leaving the liner intact.

8.Foam Cutting

Capable of high-precision cutting of complex contour shapes, suit for various packaging insert processing.


Name

Introduction

Motion Control System

High-end 6-axis high-speed motion control system: proprietary intellectual property, precise cutting head movement, smooth curve motion.

High-frequency Electric Oscillating Knife

Built-in high-frequency Maxon motor, speed up to 18,000 RPM, equipped with specially hardened tungsten steel blade. Easily cuts various hard and thick materials (e.g., corrugated cardboard, honeycomb cardboard, KT board, PVC foam board) with fast speed, smooth and neat edges.

Drag Knife Tool

Suitable for materials with thickness ≤5mm. Faster cutting speed compared to the oscillating knife.

Creasing Wheel Set

Four creasing wheels of different widths available. Creates perfect creases on various corrugated cardboard and paperboard. Optional PVC creasing wheel for PVC creasing.

Plotter Pen

One neutral pen and one oil-based pen. Used for drawing on paper/cardboard materials, and for machine precision debugging.

Ethernet Transmission Port

Flexible and stable data transmission, strong automation expandability. Supports remote upgrade and maintenance, and allows machine control and file calling within a local area network.

Integrated Circuit Controller

High-performance integrated circuit controller (not a computer motherboard plug-in card). Can be connected to any ordinary computer (including laptops) – no need for a dedicated high-spec PC. If the computer fails, it can be easily replaced with an ordinary computer to operate the machine.

Safety Protection

Simple and elegant safety anti-collision design. Built-in infrared light curtain device with sensitive response, ensuring operator safety and reliable machine operation.

Aviation-grade Honeycomb Aluminum Plate + Porous PVC Worktable

Industry-first use of aviation-grade honeycomb aluminum plate: sturdy, weather-resistant, high flatness, not easily deformed under heavy load. Smooth air circulation through internal honeycomb structure. Optional zonal vacuum suction – strong airflow and high holding force. Porous PVC worktable gives better creasing results.

Touch Screen

Digital fine-tuning and preset storage for knife depth and pressure via touch screen. Set various cutting parameters for convenient machine control.

Air Pump Module

Powerful vacuum air pump module holds material firmly on the worktable, enabling personalized product processing via the motion control system.

Laser Positioning Module

Dual-cursor positioning module allows fast and accurate cutting of printed materials using manual two-point positioning.

Worktable Detection

Automatic sensing of worktable flatness data via the worktable detection module. Feedback to control center for platform precision compensation, achieving consistent flatness.


Name

Introduction

Grey Board Grooving Tool

Specifically designed for grooving grey board. Multi-angle adjustable: 0°~135° freely adjustable.

Paperboard Grooving Tool

Designed for grooving paperboard. Self-adaptive to worktable, with anti-penetration design. Easily achieves high-precision grooving for paperboard.

V-CUT Grooving Tool

Supports grooving for honeycomb board, KT board, and many other materials, with adjustable angle 0°~120°

Picture Frame Grooving Tool

Fixed 90° grooving, specifically for picture frames, flexible plates, sound-absorbing boards, etc. for 90° angle grooving.

Kiss-cut Tool

Designed for kiss-cutting (partial penetration) of self-adhesive materials, advertising backlit film, etc. When used with precision camera registration system, complex irregular shapes can be cut easily.

2mm Vibration Tool

Foam vibration cutting tool with 2mm vibration stroke, specially designed for cutting foam materials up to 50mm thick, such as EPE pearl foam, EVA foam, sponge, etc.

Camera Registration System

Fast and accurate cutting of printed materials via the camera registration system. Integrated QR task sorting module enables automated job setup for small-batch production of different product batches.

Separate Operation Table

An independent operation table for convenient placement of a computer.
