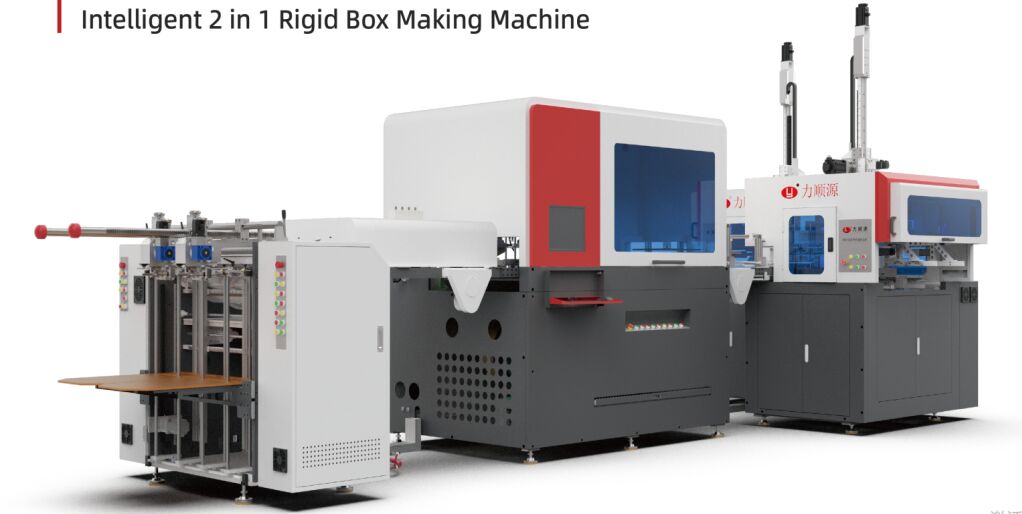

LY- HB3000A Intelligent 2 in 1 Rigid Box Making Machine (within bubble pressing functions)

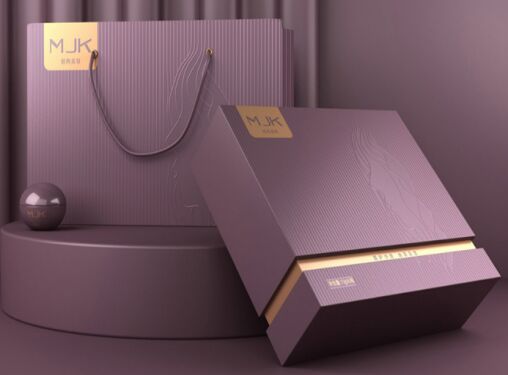

The LY-HB3000A is an intelligent 2-in-1 high-speed rigid box making machine with an integrated online bubble pressing function. It achieves a production speed of up to 40 pcs/min (for double-sheet operation), positioning accuracy of ±0.05mm, and a change-over-time as short as 30 minutes. It is suitable for producing a wide range of rigid boxes, including smartphone boxes, cosmetic boxes, jewelry boxes, wine box lids, and other premium packaging boxes, fully meeting the demands of today’s diversified packaging market.
This machine adopts a servo control system and a vision positioning system, featuring a 10-megapixel camera tracking system and a YAMAHA robot arm for precise gray board positioning. It automatically completes paper feeding, gluing, cardboard feeding, corner pasting, positioning, box forming, edge wrapping, and in-line bubble pressing. The dual forming stations are servo-controlled and equipped with a virtual cam driving system, ensuring high output and stable operation. With a wide forming range (min. 45×45×15mm, max. 550×400×130mm), collision detection alarm, and scratch-resistant design, the LY-HB3000A offers excellent reliability and ease of operation.
Key Features
- Shortest Change-over-time, thereby saving precious machine time
- Uses highly accurate Visual Robot arm positioning with camera system
- Dual Forming stations control by servo and digital setup.
- Includes in-line Bubble pressing module
- Production speed up to 40 pcs/min
- Positioning accuracy ±0.05mm
- Change-over-time (job transfer time) in 30 Minutes

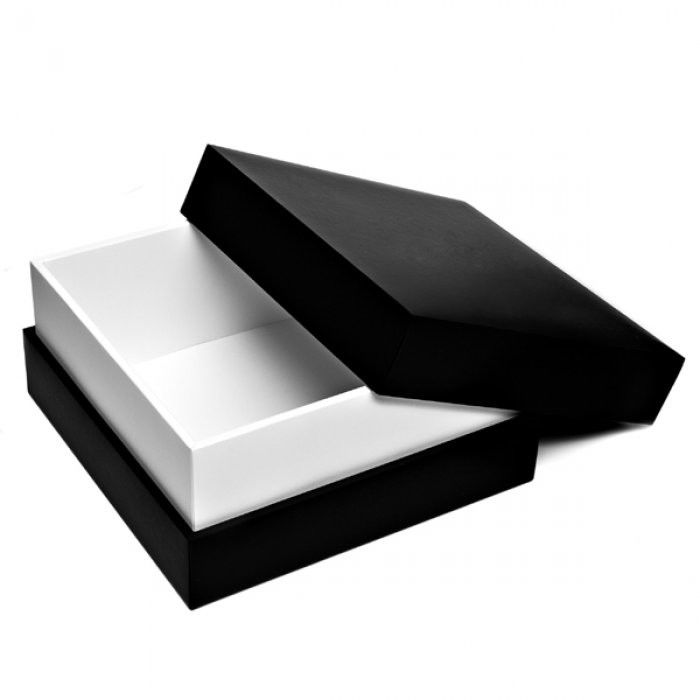

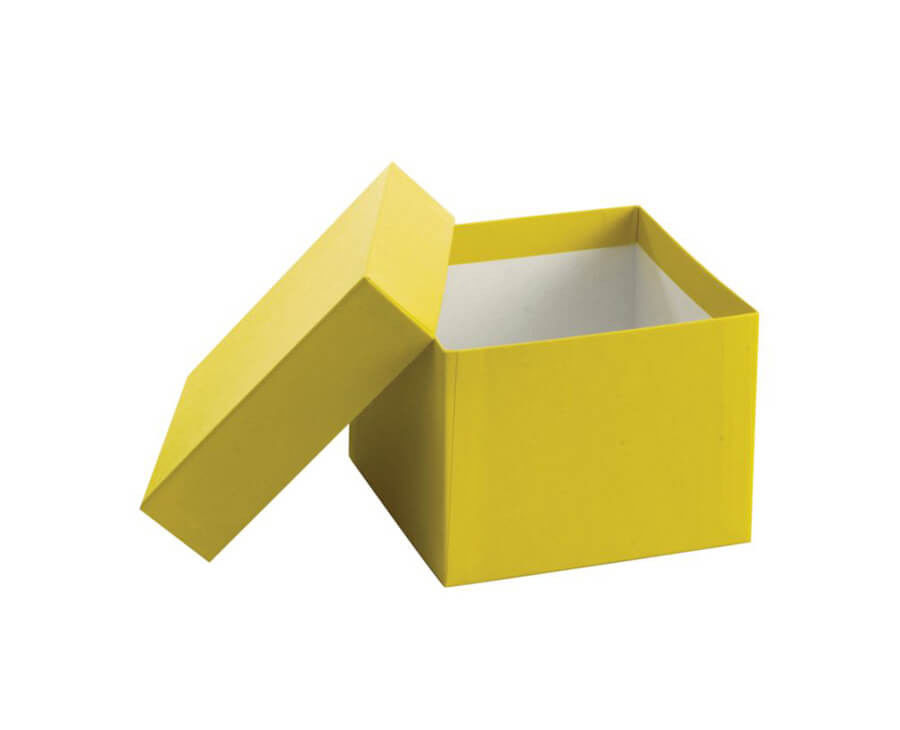

- Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Excel cut consists of following sections:
| Feeder |
- Paper-feed-in overturn function.
- Big diameter pneumatic vacuum control valves.
- The rubber pressure roller for the feeding-in paper.
- The automatic lifting function for feeding stack.
- Feeding stack auto stop when top paper in position .
- Independent controlled paper feeding table and independently controlled sheet roller.
- Avoid the inconsistency of the length of the paper between the two sheets.
|
|
Positioning
|
- Robot Arm for spotting the box.
- Camera with in 10 million Pixel tracing system,positioning accuracy can reach 0.05mm.
- Two Cameras with robots arms working XY Spool for positioning.
|
|
Corner pasting
|
- Adopt bottom suction after the box is formed:secure it with a downward-pull suction nozzle, allowing the tray to stable fall onto the conveyor belt.
- A dual-station belt feeding system simultaneously transports two matching boxes of different sizes to the positioning section.
- Easy to set up, tape width in 19mm.
|
|
Forming Part (within online bubble pressing function )
|
- Automatic setting by servo motors, it is compatible with different brands of 950mm-high positioning machines.
- Dual Station smart wrapper for increased production.
- With a bubble pressing function, eliminating the need for a separate bubble pressing machine.
- Virtual cam servo driving system.
- Alarm device for collision detection.
- Lift the box by holding the side of the box.
- Scratch resistant for the paper.
- The minimum forming dimensions is 45*45*15mm.
The maximum forming dimensions is 550*400*130mm,
multiple to do big size box without corner pasting machine.
|
Technical Specifications
| Paper size |
single sheet |
double sheet |
| W :30-800mm |
W :30-375mm |
| L :60-1000mm |
L :60-900mm |
| Paper thickness |
80-300g/m2 |
| Cardboard thickness |
＞1mm |
| Finished box size |
L: 65-450mm |
L :65-450mm |
| W:65-420mm |
W :65-350mm |
| H:15-130mm |
H :15-130mm |
| Precision accuracy |
±0.05mm |
| Ear overlapping size |
7-100mm |
| Ear cross ear folding size |
120mm |
| Max power |
11KW |
| Capacity of production |
20-25 PCS/MIN |
40-50 PCS/MIN |
| Power Supply |
380V/50Hz |
| Glue tank volume |
50KG |
| Machine dimension |
L7415×W4500×H2000mm |
| Machine weight |
7200kg |
Process Flow
