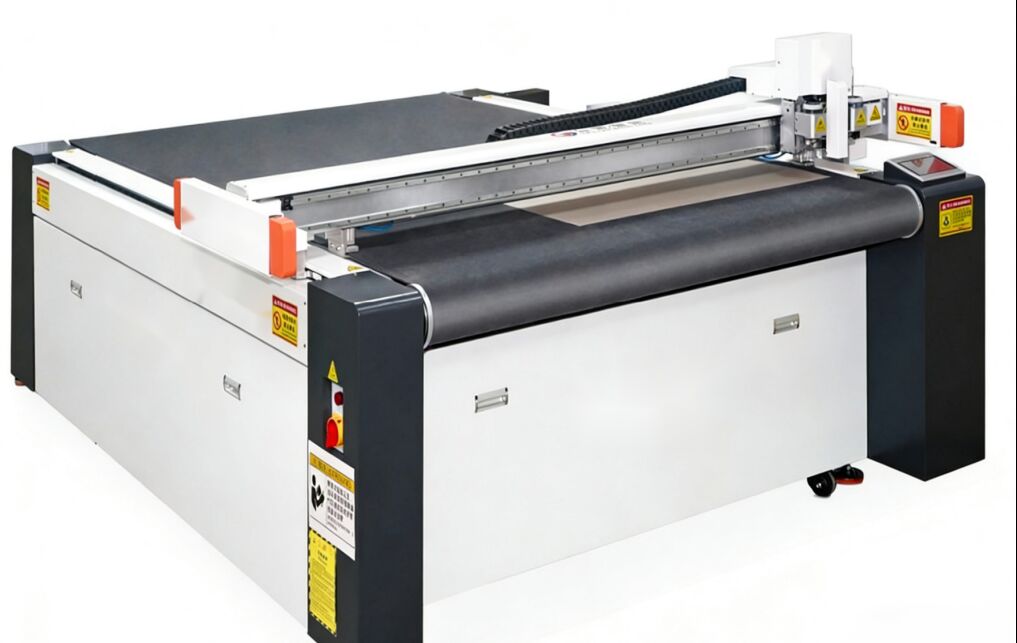

LY-PK-1816RM No-die Non-metal Flexible Material Cutting Machine(Sample maker machine)
LY-PK-1816RM is a no-die, non-metal flexible material cutting machine designed specifically for sample making and small-batch customized production in the packaging industry. It supports a wide range of materials including greyboard, paperboard, corrugated cardboard, EVA, and more, with a maximum cutting thickness of 50mm and working accuracy of ±0.05mm. Maximum cutting speed reaches 1200mm/s with working speed up to 1500mm/s, fully meeting today‘s diversified and fast-turnaround packaging market. Suitable for packaging box and paper sample making, as well as small-batch production.
This machine adopts a high-end servo control system and requires no die-cutting mold. The multi-function design integrates cutting, creasing, grooving, and half-cut processes into one machine. Two independently driven work heads allow multiple tools to operate continuously, with interchangeable tool modules between stations. Thus, one machine handles cutting, creasing, grooving, and plotting without manual recalibration. Built-in automatic tool setting system enables one-touch calibration and length compensation after tool change, ensuring fast changeover with high precision.
The high-precision servo-driven transmission system delivers clean, burr-free edges with positioning accuracy up to ±0.05mm. You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve. Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer requests. Key components are dust-protected, resulting in low failure rates and simple maintenance. The integrated steel frame ensures no deformation under long-term high-speed operation.
Mechanical introduction
- Designed specifically for sample making and small-batch customized production in the packaging and printing industry.
- This machine features a high-end servo control system and requires no die-cutting mold.
-
It is compatible with a wide range of materials, including greyboard, paperboard, corrugated cardboard, EVA, and more.
-
The multi-function design integrates cutting, creasing, grooving, half-cut, making one machine suitable for multiple applications. It is ideal for packaging box and paper sample making, and also supports small-batch production.
Features
|
|
The integrated steel frame is welded from thickened high-carbon steel, ensuring no deformation or vibration under long-term high-speed operation. It provides stable mechanical performance, guaranteeing cutting accuracy and machine longevity.
|
|
|
Built-in suction system that intelligently activates vacuum zones based on material size, delivering stronger and more uniform hold-down and significantly improving sheet flatness. It prevents edge lifting and shifting, and is suitable for both thin and thick boards.
|
|
|
Two independently driven work heads allow multiple tools to operate continuously, and tools are interchangeable between modules. Thus, one machine handles cutting, creasing, grooving, and plotting.With a maximum cutting thickness of 50mm, the machine is compatible with corrugated board, grey board, paperboard, thin foam, leather, and other sheet materials, meeting daily sample-making needs.
|
|
|
The built-in automatic tool setting system enables one-touch auto-setting and length compensation after a tool change, requiring no manual calibration. This ensures fast changeover with high precision.The high-precision servo-driven transmission system delivers cutting accuracy up to ±0.05mm and produces clean, burr-free edges.
|
|
|
You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve.
|
|
|
Key components are protected against dust and debris, resulting in low failure rates and simple routine maintenance. Additionally, low energy consumption ensures environmentally friendly and cost-effective operation.Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer sample requests.
|
Function examples
|
|
1.Grooving (V/U-Groove)

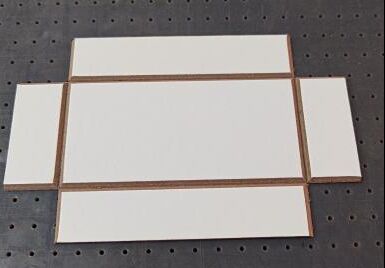

V/U grooving switchable, one-step forming for rigid & soft materials.
|
|
|
2.Half-Cut Die Cutting
Half-cut die cutting, cuts top layer only for easy-tear & connecting parts.
|
|
|
3.Creasing
Uniform creasing, no cracking or wrinkling when folding.
|
|
|
4.Full-Cut Die Cutting

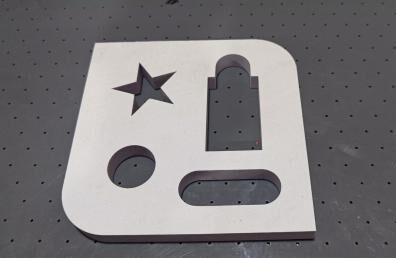

No mold required, precise full-through cutting, suit for small-batch sampling. High-precision cutting with no wrinkling on thin paper and no edge bursting on thick paper.
|
|
|
5.EVA Cutting
Special non-stick cutter, smooth and clean EVA cutting.
|
|
|
6.Corrugated Board Cutting

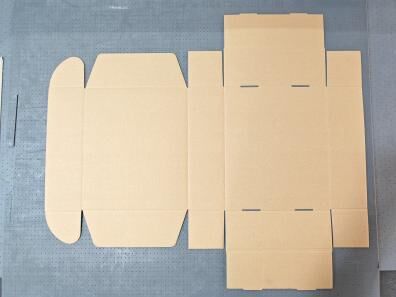

Integrated cutting, creasing, and slotting for accurate reproduction of carton structures.
|
|
|
7.Adhesive Label Cutting
Precision-controlled depth die-cutting that cuts through only the face paper and adhesive layer while leaving the liner intact.
|
|
|
8.Foam Cutting
Capable of high-precision cutting of complex contour shapes, suit for various packaging insert processing.
|
Technical Specifications
|
MAX working speed
|
1500mm/s
|
|
MAX cutting speed
|
1200mm/s
|
|
Working accuracy
|
±0.05mm
|
|
Thickness of work piece
|
50mm
|
|
Effective working size
|
L1800mm*W1600mm
|
|
Power supply
|
380V±10%
|
|
Total power
|
7.5KW
|
|
Machine dimension
|
L2770*W2580*H1330mm
|
Configuration Checklist Selection
1,Standard Configuration
|
|
Name
|
Introduction
|
|
|
Motion Control System
|
High-end 6-axis high-speed motion control system: proprietary intellectual property, precise cutting head movement, smooth curve motion.
|
|
|
High-frequency Electric Oscillating Knife
|
Built-in high-frequency Maxon motor, speed up to 18,000 RPM, equipped with specially hardened tungsten steel blade. Easily cuts various hard and thick materials (e.g., corrugated cardboard, honeycomb cardboard, KT board, PVC foam board) with fast speed, smooth and neat edges.
|
|
|
Drag Knife Tool
|
Suitable for materials with thickness ≤5mm. Faster cutting speed compared to the oscillating knife.
|
|
|
Creasing Wheel Set
|
Four creasing wheels of different widths available. Creates perfect creases on various corrugated cardboard and paperboard. Optional PVC creasing wheel for PVC creasing.
|
|
|
Plotter Pen
|
One neutral pen and one oil-based pen. Used for drawing on paper/cardboard materials, and for machine precision debugging.
|
|
|
Ethernet Transmission Port
|
Flexible and stable data transmission, strong automation expandability. Supports remote upgrade and maintenance, and allows machine control and file calling within a local area network.
|
|
|
Integrated Circuit Controller
|
High-performance integrated circuit controller (not a computer motherboard plug-in card). Can be connected to any ordinary computer (including laptops) – no need for a dedicated high-spec PC. If the computer fails, it can be easily replaced with an ordinary computer to operate the machine.
|
|
|
Safety Protection
|
Simple and elegant safety anti-collision design. Built-in infrared light curtain device with sensitive response, ensuring operator safety and reliable machine operation.
|
|
|
Aviation-grade Honeycomb Aluminum Plate + Porous PVC Worktable
|
Industry-first use of aviation-grade honeycomb aluminum plate: sturdy, weather-resistant, high flatness, not easily deformed under heavy load. Smooth air circulation through internal honeycomb structure. Optional zonal vacuum suction – strong airflow and high holding force. Porous PVC worktable gives better creasing results.
|
|
|
Touch Screen
|
Digital fine-tuning and preset storage for knife depth and pressure via touch screen. Set various cutting parameters for convenient machine control.
|
|
|
Air Pump Module
|
Powerful vacuum air pump module holds material firmly on the worktable, enabling personalized product processing via the motion control system.
|
|
|
Laser Positioning Module
|
Dual-cursor positioning module allows fast and accurate cutting of printed materials using manual two-point positioning.
|
|
|
Worktable Detection
|
Automatic sensing of worktable flatness data via the worktable detection module. Feedback to control center for platform precision compensation, achieving consistent flatness.
|
2.Standard Configuration
|
|
Name
|
Introduction
|
|
|
Grey Board Grooving Tool
|
Specifically designed for grooving grey board. Multi-angle adjustable: 0°~135° freely adjustable.
|
|
|
Paperboard Grooving Tool
|
Designed for grooving paperboard. Self-adaptive to worktable, with anti-penetration design. Easily achieves high-precision grooving for paperboard.
|
|
|
V-CUT Grooving Tool
|
Supports grooving for honeycomb board, KT board, and many other materials, with adjustable angle 0°~120°
|
|
|
Picture Frame Grooving Tool
|
Fixed 90° grooving, specifically for picture frames, flexible plates, sound-absorbing boards, etc. for 90° angle grooving.
|
|
|
Kiss-cut Tool
|
Designed for kiss-cutting (partial penetration) of self-adhesive materials, advertising backlit film, etc. When used with precision camera registration system, complex irregular shapes can be cut easily.
|
|
|
2mm Vibration Tool
|
Foam vibration cutting tool with 2mm vibration stroke, specially designed for cutting foam materials up to 50mm thick, such as EPE pearl foam, EVA foam, sponge, etc.
|
|
|
Camera Registration System
|
Fast and accurate cutting of printed materials via the camera registration system. Integrated QR task sorting module enables automated job setup for small-batch production of different product batches.
|
|
|
Separate Operation Table
|
An independent operation table for convenient placement of a computer.
|
