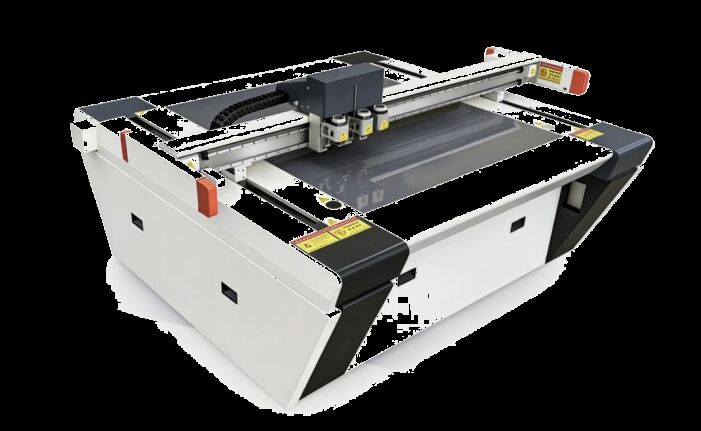

LY-RK03-1113 CNC No-Die Box Cutting Machine(Sample maker machine)
The LY-RK03-1113 is a no-die cutting machine for non-metal flexible materials, designed for packaging and printing sample making and small-batch production. It integrates cutting, creasing, grooving, and half-cut functions. With a servo control system, ±0.05mm accuracy, and 50mm cutting thickness, it supports materials like greyboard, corrugated board, EVA, and foam. It features automatic tool setting, CAD/AI/DXF file support, and a built-in vacuum system.
Key Features
l Designed specifically for sample making and small-batch customized production in the packaging and printing industry.
l This machine features a high-end servo control system and requires no die-cutting mold.
l It is compatible with a wide range of materials, including greyboard, paperboard, corrugated cardboard, EVA, and more.
l The multi-function design integrates cutting, creasing, grooving, half-cut, making one machine suitable for multiple applications. It is ideal for packaging box and paper sample making, and also supports small-batch production.
Mechanical Details
|
|
The integrated steel frame is welded from thickened high-carbon steel, ensuring no deformation or vibration under long-term high-speed operation. It provides stable mechanical performance, guaranteeing cutting accuracy and machine longevity.
|
|
|
Built-in suction system that intelligently activates vacuum zones based on material size, delivering stronger and more uniform hold-down and significantly improving sheet flatness. It prevents edge lifting and shifting, and is suitable for both thin and thick boards.
|
|
|
Three independently driven work heads allow multiple tools to operate continuously, and tools are interchangeable between modules. Thus, one machine handles cutting, creasing, grooving, and plotting.With a maximum cutting thickness of 50mm, the machine is compatible with corrugated board, grey board, paperboard, thin foam, leather, and other sheet materials, meeting daily sample-making needs.
|
|
|
The built-in automatic tool setting system enables one-touch auto-setting and length compensation after a tool change, requiring no manual calibration. This ensures fast changeover with high precision.The high-precision servo-driven transmission system delivers cutting accuracy up to ±0.05mm and produces clean, burr-free edges.
|
|
|
You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve.
|
|
|
Key components are protected against dust and debris, resulting in low failure rates and simple routine maintenance. Additionally, low energy consumption ensures environmentally friendly and cost-effective operation.Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer sample requests.
|
Function Examples
|
|
1.Grooving (V/U-Groove)
V/U grooving switchable, one-step forming for rigid & soft materials.
|
|
|
2.Half-Cut Die Cutting
Half-cut die cutting, cuts top layer only for easy-tear & connecting parts.
|
|
|
3.Creasing
Uniform creasing, no cracking or wrinkling when folding.
|
|
|
4.Full-Cut Die Cutting
No mold required, precise full-through cutting, suit for small-batch sampling. High-precision cutting with no wrinkling on thin paper and no edge bursting on thick paper.
|
|
|
5.EVA Cutting
Special non-stick cutter, smooth and clean EVA cutting.
|
|
|
6.Corrugated Board Cutting

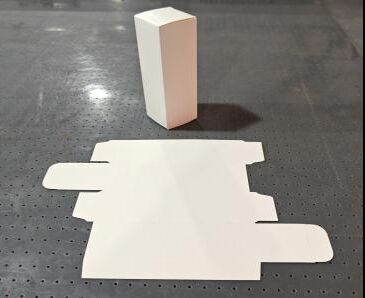

Integrated cutting, creasing, and slotting for accurate reproduction of carton structures.
|
|
|
7.Adhesive Label Cutting
Precision-controlled depth die-cutting that cuts through only the face paper and adhesive layer while leaving the liner intact.
|
|
|
8.Foam Cutting
Capable of high-precision cutting of complex contour shapes, suit for various packaging insert processing.
|
Technical Specifications
|
Specifications
|
|
|
MAX working speed
|
1500mm/s
|
|
MAX cutting speed
|
1200mm/s
|
|
Working accuracy
|
±0.05mm
|
|
Thinkness of work piece
|
50mm
|
|
Effective working size
|
L1100mm*W1300mm
|
|
Power supply
|
380V±10%
|
|
Total power
|
5.5KW
|
|
Machine dimension
|
L2100*W2480*H1200mm
|
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
