LY-720TJ 3D Gilding Automatic Hot Foil Stamping Machine
Intelligent High Speed Automatic Hot Foil Stamping Machine
Full Automatic Hot Foiling Stamping Machine is extensively used in all kinds of packaging applications. It works with various packaging papers including special paper, art paper, fancy paper, and more.
Key Features
Dual Channel System
Double channels system for paper picking and laying, enabling simultaneous two-color stamping as well as sammeld ruck. Supports flat stamping, 3D stamping and embossing with different molds.
High Precision Positioning
Equipped with front stop, double side gauge and laser sensor to achieve high-precision positioning of ±0.02mm. Features large hot stamping area with maximum size of 720mm × 460mm.
Advanced Stamping Technology
Fully automatic hot foil stamping with pressure driven by servo, reaching approximately 4.2T/cm² and being adjustable. Mismatched design of closing table and pressure table enables quick plate replacement (within 20 minutes).
Temperature Control
Equipped with four independently adjustable temperature zones (60-150°C), catering to the stamping requirements of various materials.
Paper Handling System
Conveyor belt supports variable-frequency suction adjustment for different paper weights. Sensors detect double feeding or no feeding of paper. Minimum applicable paper thickness is 80 grams.
Automated Operation
CAM paper feeding with maximum stacking height of 300mm and production speed of 15-25 pieces per minute. Automatic paper collection after stamping completion.
Technical Specifications
| Model |
LY-720TJ |
| Paper Size (L×W) |
Max: 720×500mm | Min: 260×120mm |
| Stamping Size (L×W) |
Max: 720×460mm | Min: unlimited |
| Production Rate |
15-25 pcs/min |
| Stamping Working Area |
720×460mm |
| Paper Stacking Height |
300mm |
| Stamping Pressure |
4.2T |
| Precision |
±0.02mm |
| Maximum Stamping Rolls |
2 rolls |
| Maximum Diameter for Stamping |
100mm |
| Power Supply |
380V |
| Constant Power |
13kw |
| Machine Size |
L3000×W1550×H1000mm |
| Machine Weight |
4000kg |
Machine Details
Machine appearance drawing

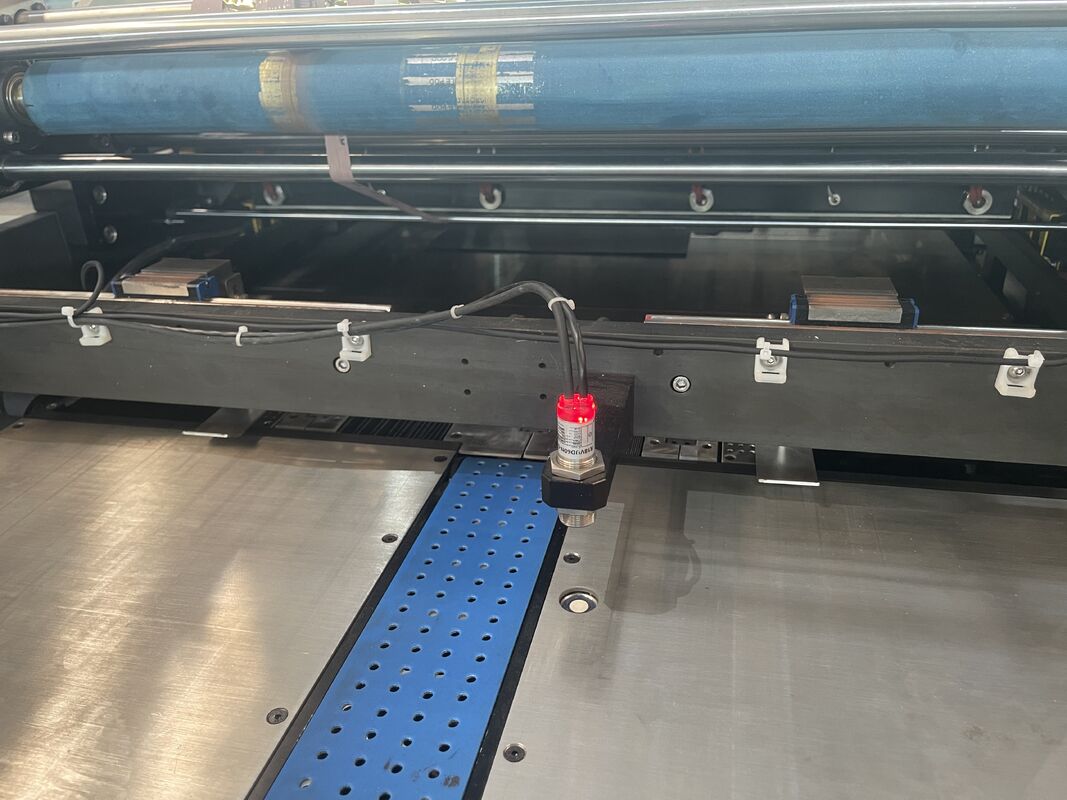

The conveyor belt implements variable frequency suction adjustment for different grams of paper to meet all kinds of package paper hot stamping needs. Configured with sensor to detect double or no feed paper.

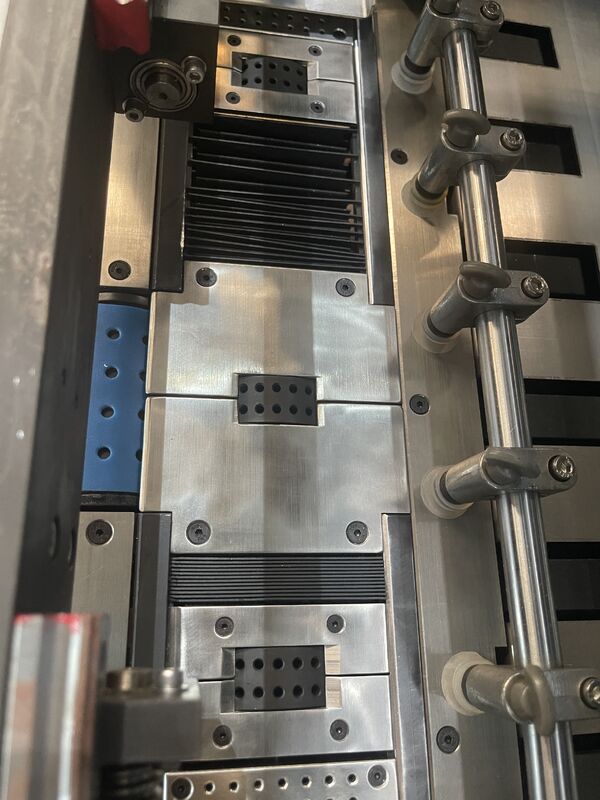

The machine with front stop, double side gauge and laser sensor for high precision positioning of ±0.02mm. Large hot stamping area of 720mm×460mm.

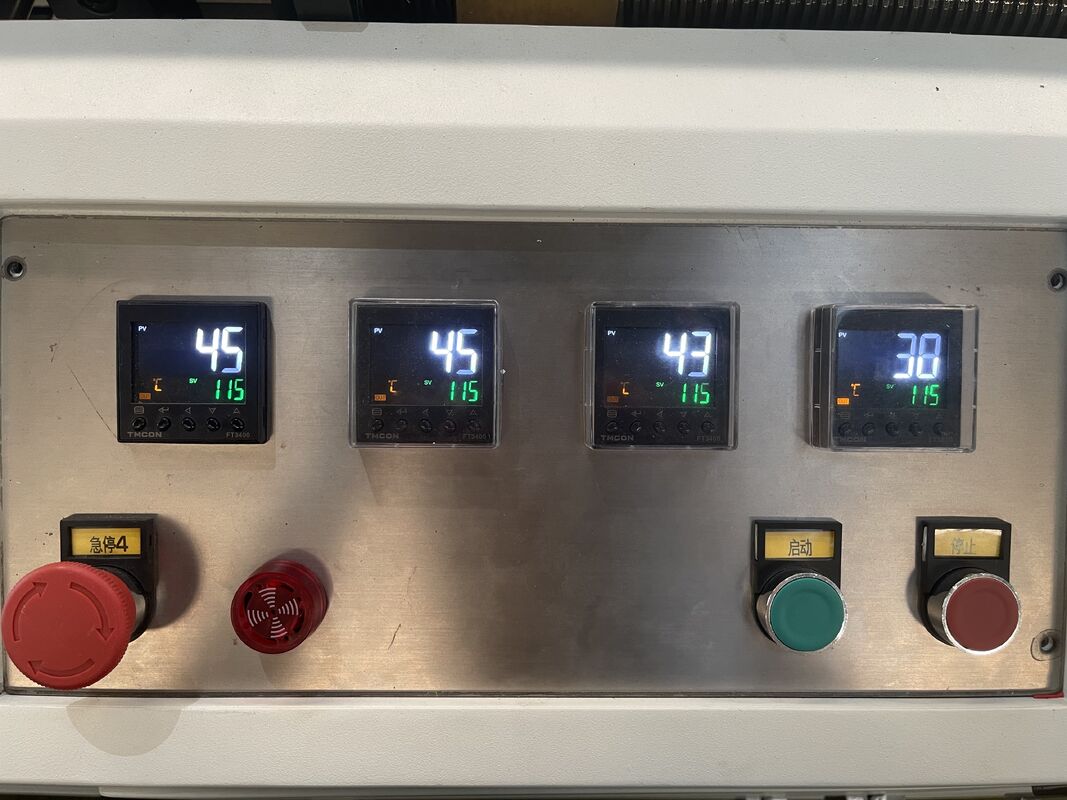

Four temperature zones, all adjustable to meet different materials' stamping needs (60-150°C).
Stamping Effects
3D hot foiling stamping effect picture
3D embossment effect picture
Flat hot foiling stamping effect picture
Color register system
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, with modern standard workshops of 20,000 square meters. After 20 years of development, the company has formed a complete sales network and after-sales service system. Products are sold throughout China and exported to Europe, the United States, Southeast Asia, South America, Middle East, Africa and more than 40 countries and regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series, widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes, and other boutique boxes.
Workshop
Package & Delivery
Quality After-sales Service
- Before delivery, customer can arrange personnel to train in our company
- We will send our engineer to the buyer's factory (buyer bears all charges: air tickets, food, visa and local charges)
- We provide 15 days of training service free of charge
- 24 hours service online
Certificates
Trade Show
Frequently Asked Questions
What about machine warranty?
1 year warranty including free machine parts replacement (consumables are not included).
When the machine breaks down, how do you help us solve the problem?
- We have local service team
- 24 hours service online, we will provide you the online support
What machines are used to make rigid boxes?
Necessary equipment: Grooving machine, Die Cutter, Printing Machine, Paper feeding and gluing machine, Box corner pasting machine, Box positioning machine, Box wrapping machine, Lining machine.
