Fully Automated Machine Vision Case Wrapping System for mobile phone boxes, moon cake boxes, tea boxes
Positioning For Box Making Machine In The Packaging Machines

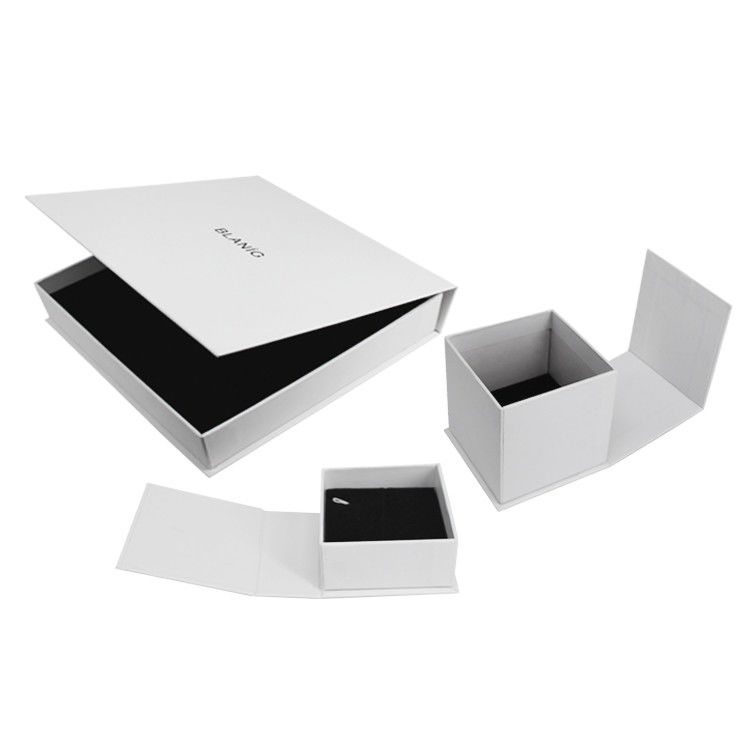

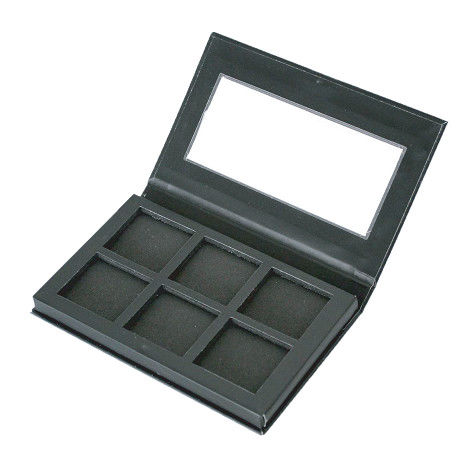

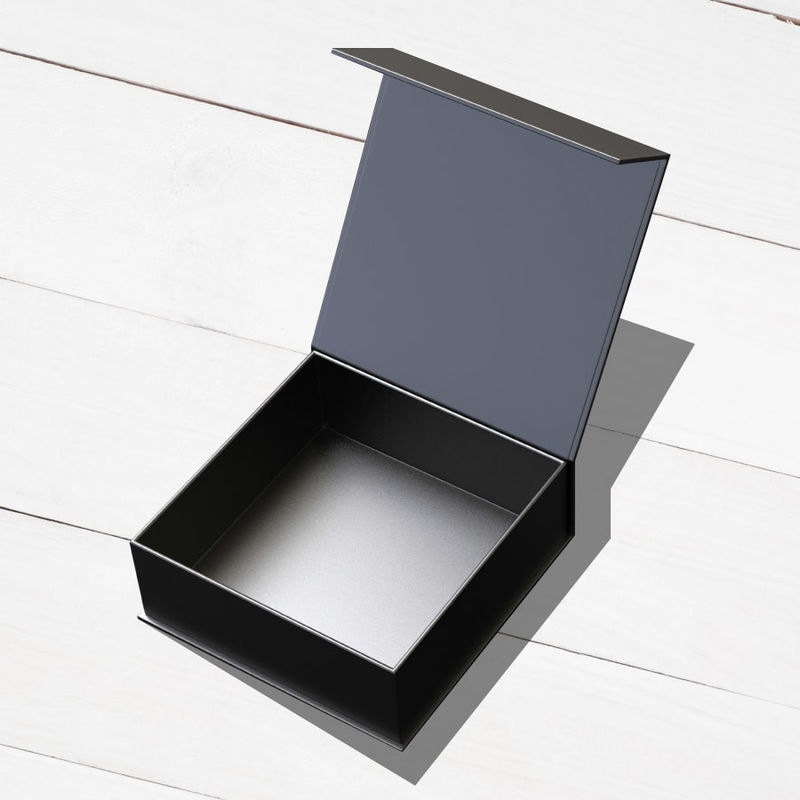

The LY-485C-PK Fully Automatic Case Making Machine features visual positioning and four-side wrapping modules in one. It suits manufacturing all types of book-style cases (mobile phone boxes, mooncake boxes, tea boxes, cosmetic boxes, etc.), along with hardcover book cases, notebook covers, desk calendars, file folders and other related products.
Product features:
- Equipped with two 5-megapixel industrial cameras and a YAMAHA robotic arm for positioning, boasting a high positioning accuracy of ±0.1mm.
- Delivers a high production efficiency, with the case forming and laminating speed reaching 20-30 pieces per minute. Adopting an independent human-machine control system, it features short machine changeover time and fast pattern switching.
- The independent automatic control system enables quick machine adjustment and rapid mold replacement.
- The mainframe module is adjustable for rigid box positioning with an accuracy of ±0.1mm and a working speed of 20-30 pieces per minute. It can be optionally equipped with a corner pasting machine, a splicing board case making machine or a pneumatic machine, and supports future expansion for the production of various other products.
Consists of following sections:
1 . Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Anti-static platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
Positioning
1 . SCARA (Selective Compliance YAMAHA Robot Arm) for spotting the grey board box
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.
Forming Part & Bubble Pressing
1. Automatic Setting By servos.
2. Double wrapper increase production
3. Virtual cam servo driving system
4. Alarm device for colliding
5. Lift the box by holding the side of the box
6. Scratch resistant for the paper
7. Box-pressing down-side device
Electric Control System
1. Automatic control By servos with stable.
2.Transfer mold fast, quick adjust machine.
Company Introduction
Founded in 2001, LiShunYuan is situated in Nanya Industrial Zone, Daojiao Town, Dongguan City, Guangdong Province, with a modernized standard workshop spanning 20,000 square meters. After 17 years of steady development, the company has built a comprehensive sales network and after-sales service system across China. Its products are not only sold nationwide but also exported to more than 40 countries and regions, including Europe, the United States, Southeast Asia, South America, the Middle East and Africa.
Innovation stands as the core competitiveness of LiShunYuan. The company holds independent intellectual property rights for its product portfolio, which covers the rigid box series and clamshell box series. These products are widely applied in the production of various premium gift boxes, such as mobile phone boxes, cosmetic boxes, wine and liquor boxes, and other types of boutique packaging boxes.
Workshop
Package & Delivery
Certification
