LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

Intelligent rigid box production line

2 in 1 rigid box machine

70 pieces per minute box maker

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

CE

Model Number:

LY-HB3000CZ

Contact Us
Request A Quote
LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute
LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute
Product Details
Model:
LY-HB3000CZ
Name:
Intelligent Integrated Top-Bottom Box Production Line
Total Power:
25KW
Weight:
8200kg
Positioning Accuracy:
0.05mm
Speed:
50-70pcs/min
Highlight:

Intelligent rigid box production line

,

2 in 1 rigid box machine

,

70 pieces per minute box maker

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Film and plywood crate
Delivery Time
20days
Payment Terms
L/C,T/T
Supply Ability
30 sets/month
RELATED PRODUCTS
Good price LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute online Video

LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

Get Best Price
Good price LY-1500CZ Rigid Box Making Machine High Production Rate 32 Pieces Per Minute online Video

LY-1500CZ Rigid Box Making Machine High Production Rate 32 Pieces Per Minute

Get Best Price
Good price LY-HB3000CQ Speed 50pcs/Min Rigid Box Production Line Produce The Top And Bottom Boxes At The Same Time online Video

LY-HB3000CQ Speed 50pcs/Min Rigid Box Production Line Produce The Top And Bottom Boxes At The Same Time

Get Best Price
Good price LY-2500CK Automatic Rigid Box Making Machine with Positioning Accuracy ±0.05mm Delivering Packaging and Stable Automated Operation online Video

LY-2500CK Automatic Rigid Box Making Machine with Positioning Accuracy ±0.05mm Delivering Packaging and Stable Automated Operation

Get Best Price
Contact Us
Contact Now
Product Description
LY-3000CZ Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute
Intelligent 2 in 1 Rigid Box Production Line with production rate of 70 pieces per minute

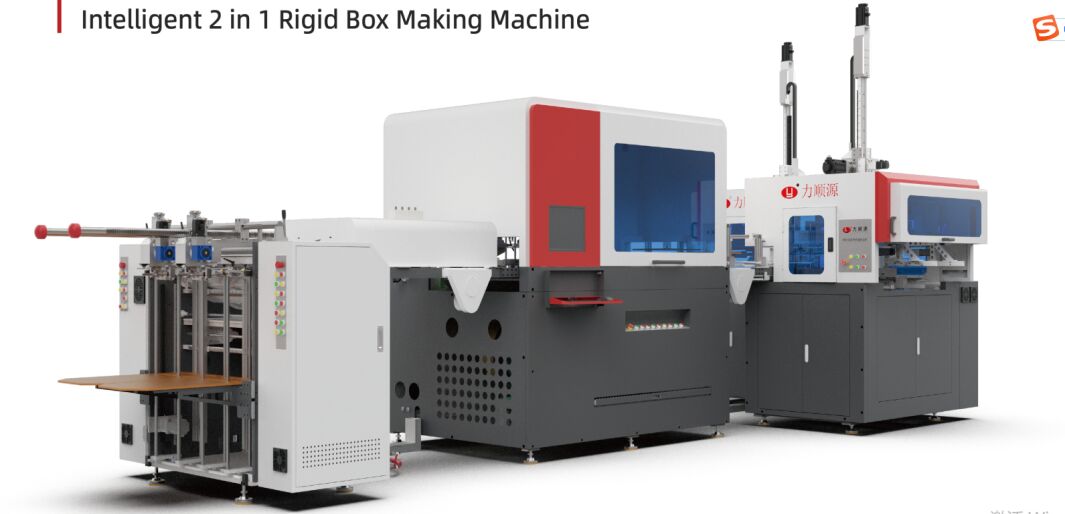

LY-3000CZ Intelligent Rigid Box Production Line overview
Key Features
  • Shortest change-over time, saving precious machine time
  • Highly accurate visual robot arm positioning with German multiple camera system
  • Dual forming stations for high output
  • Includes in-line bubble pressing module
  • Production speed up to 66 pcs/min for single size production
  • Positioning accuracy ±0.05mm
  • Change-over time (job transfer time) in 30 minutes

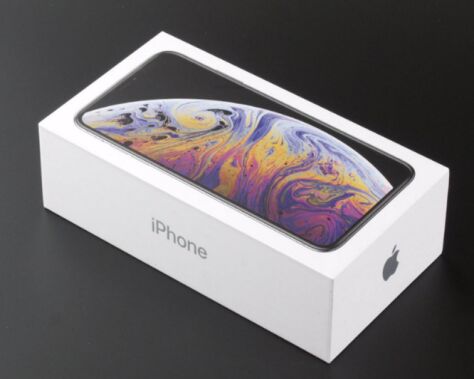

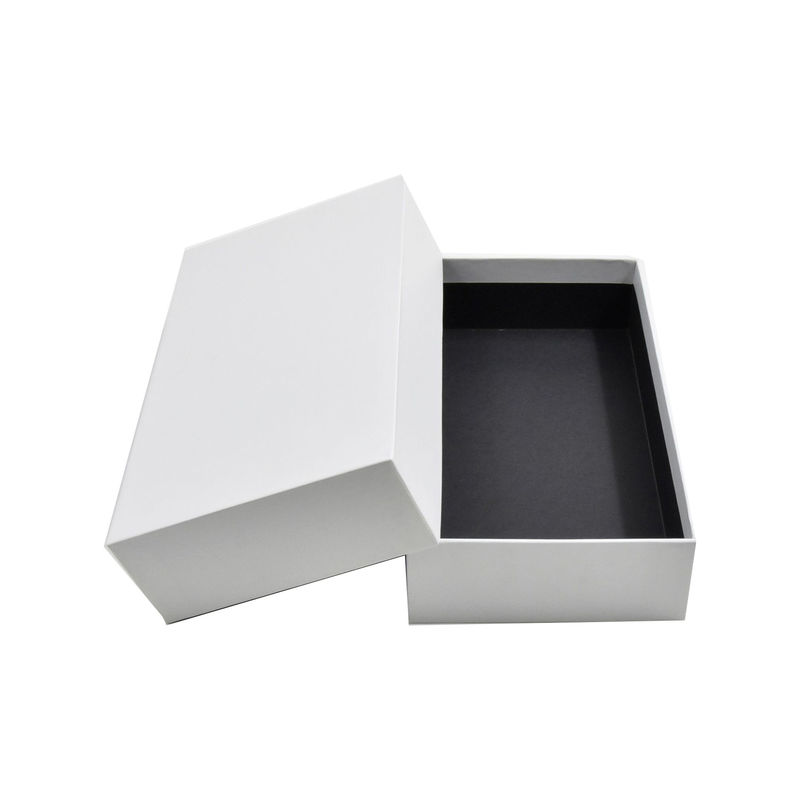

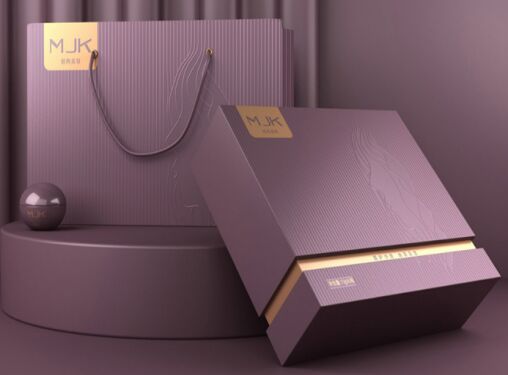

  • Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes

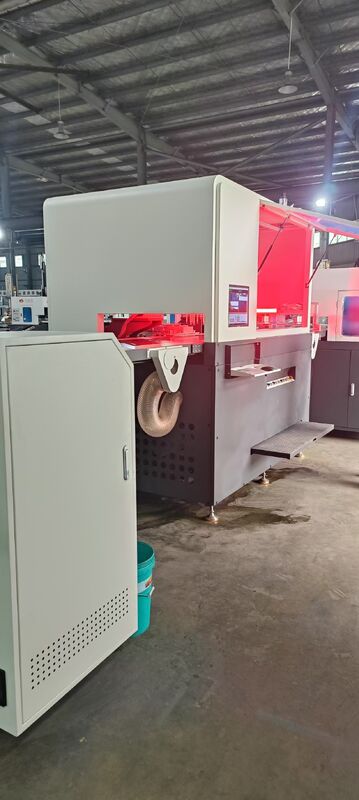

Production line close-up view Excel cut system overview
Excel Cut System Components
Feeder Section

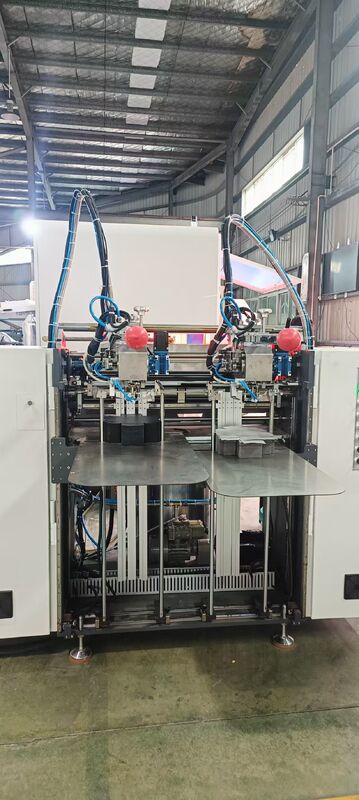

Feeder section detail Feeder mechanism
  • Feeder controlled by servo motor
  • Paper-feed-in overturn function
  • Big diameter pneumatic vacuum control valves
  • Rubber pressure roller for feeding-in paper
  • Antistatic platform for paper
  • Automatic lifting function for feeding stack
  • Feeding stack auto stop when top paper in position
  • Independent controlled paper feeding table and independently controlled sheet roller
  • Avoids inconsistency of paper length between sheets
Positioning System
Positioning system overview Robot arm positioning Camera system detail
  • YAMAHA Robot Arm for spotting the box
  • German Balser camera with Japanese Lens in 10 million pixel tracing system
  • 4 cameras with double robot arms working XY Spool for positioning
Technical Specifications
Parameter Specification
Paper Size W: 95-600mm, L: 120-880mm
Paper Thickness 80-350g/m²
Max Paper Stacking Height 800mm
Cardboard Thickness 1-3mm
Finished Box Size (L×W×H) L: 55-400mm, W: 35-350mm, H: 8-140mm
Ear Overlapping Size 10-120mm
Production Capacity 56-66 pcs/min
Setting Time 40-50 minutes
Precision ±0.05mm
Power Supply 380V/50Hz
Max Power 39kW
Air Pressure 0.5-0.7 MPa / 320 NL/min
Glue Tank Volume 50kg
Machine Weight 8100kg
Machine Size L8900 × W5600 × H3300mm
Technological Process
Technological process diagram
About LiShunYuan
LiShunYuan manufacturing facility Company overview
LiShunYuan, founded in 2001, specializes in developing machines for automating the rigid box making process. By 2009, the company developed its first fully automatic line, which changed industry standards. This innovation earned the company "Excellent Enterprise" & "Best Creativity Award" at the International Industrial Automation Design Seminar.
Over the years, LiShunYuan has secured over 200 process patents and more than 100 product quality attestations. The current machine version represents the 5th generation of innovation.
  • More than 20,000 m² manufacturing base coverage
  • Machining and R&D advantage
  • Machines integrated with world-class brands
  • Certifications, Patents, Software Copyright
Manufacturing process Production facility Quality control process Finished product examples
Guarantee
1. Quality guarantee: The Seller shall guarantee that the machine hereof is brand-new and in compliance in all respects with the quality, specifications and performance stipulated in this contract.
2. Guarantee period: The guarantee period is 12 months from the date of installation. If installation is not requested within 30 days of machine reaching the customer port, the warranty time will begin from the B/L date.
3. The Seller guarantees normal operation of the machine within the guarantee period, providing that such malfunction or defective part is not caused by negligence on the part of the Buyer.
