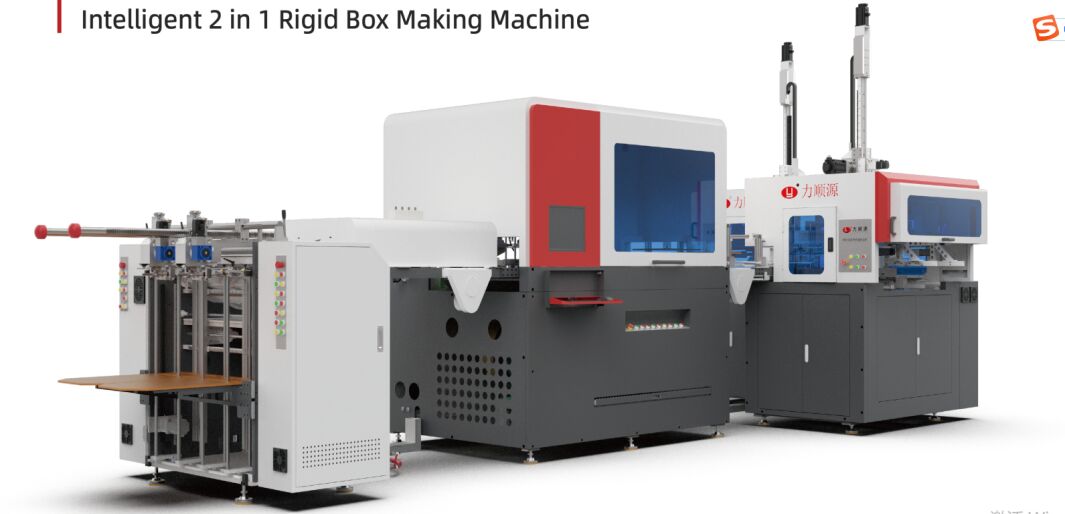

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute
1.Shortest Change-over-time, thereby saving precious machine time
2.Uses highly accurate Visual Robot arm positioning with German multiple camera system
3.Dual Forming stations for high output
4.Includes in-line Bubble pressing module
5.Production speed upto 66 pcs/min for do one size production
6.Positioning accuracy ±0.05mm
7.Change-over-time (job transfer time) in 30 Minutes

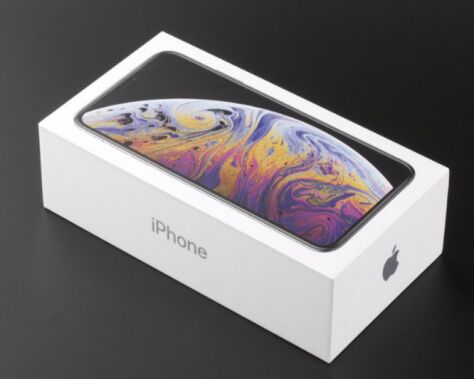

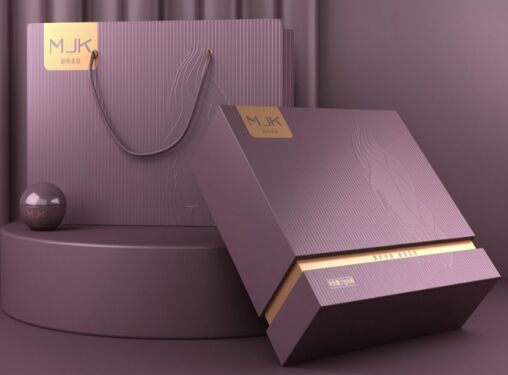

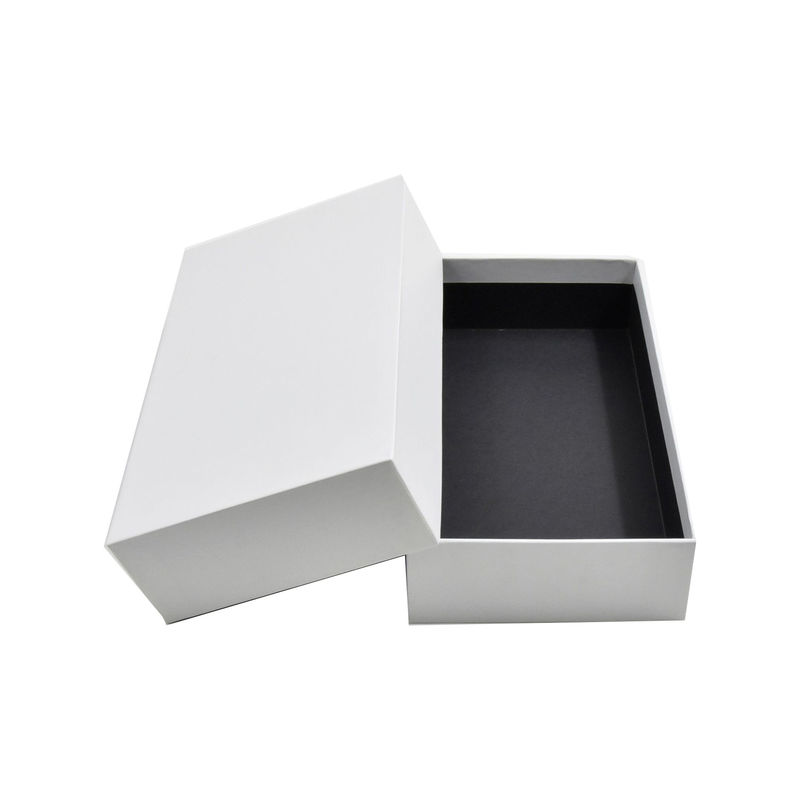

8.Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Excel cut consists of following sections:

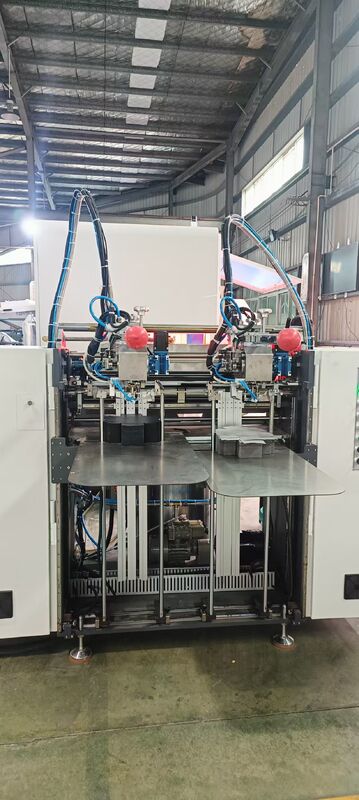

Feeder
1.Feeder is controlled by a servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
8.Independent controlled paper feeding table and independently controlled sheet roller.
9.Avoid the inconsistency of the length of the paper between the two sheets
Positioning
1 . YAMAHA Robot Arm for spotting the box
2. German Balser camera with Japanese Lens in 10 million Pixel tracing system
3. 4 Cameras with double robots arms working XY Spool for positioning.
| Specifications: |
| Paper Size |
W:95 - 600mm |
| L: 120-880mm |
| Paper thickness |
80-350g/m2 |
| Max.paper stacking height |
800mm |
| Cardboard thickness |
1-3mm |
| Finished box size W*L*H |
L:55-400mm |
| W:35-350mm |
| H:8-140mm |
| Ear overlapping size |
10-120mm |
| Production Capacity |
56-66pcs/min |
| Setting time |
40-50mins |
| Precision |
±0.05mm |
| Power Supply |
380V/50Hz |
| Max power |
39kw |
| Air pressure |
0.5-0.7mpa/320NL/min |
| Glue tank volume |
50kg |
| Machine weight |
8100kg |
| Machine size |
L8900*W5600*H3300mm |
Technological Process
About us
LiShunYuan, founded in 2001, with the aim of developing machines for automating the Rigid Box making process. By 2009 Lishunyuan developed the its first fully automatic line which changed the industry standards. For this innovation the company won the “Excellent Enterprise” & “Best Creativity Award” at the International Industrial Automation Design Seminar.
Over the years, Lishunyuan has a claim to over 200 process patents and over 100 product quality attestations.
The current version of the machine is in its 5th generation
1.More than 20000 m2 coverage of manufacturing base
2.Machining and R&D advantage
3.Machine integrated with world class brand
4.Certifications, Patents, Software Copyright
GUARANTEE
1 Quality guarantee: The Seller shall guarantee that the machine hereof is brand-new and in compliance in all respects with the quality, specifications and performance stipulated in this contract.
2 Guarantee period: The guarantee period is 12 months from the date of installation.
If the installation is not requested within 30 days of machine reaching the customer port, the warranty time will begin from the B/L date.
3 The Seller guarantees normal operation of the machine within the guarantee period, providing that such malfunction or defective part is not caused by negligence on the part of the Buyer.
