Place of Origin:
China
Brand Name:
Lishunyuan
Certification:
CE
Model Number:
LY-2012

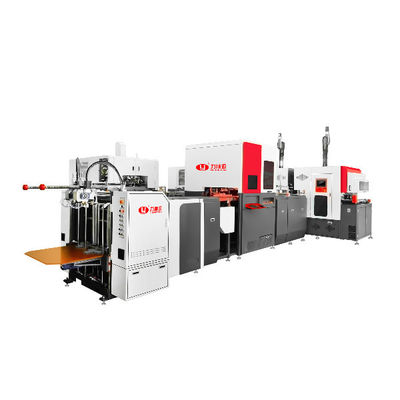

Intelligent Automatic Rigid Box Making Machine like bubble, scratch, low turn-in depth
Description
To meet the demand of the market, LISHUNYUAN based on the decades of packaging machine design and manufacture experience, after more than two years independent R&D, developed intelligent automatic rigid box making machine in 2012, greatly solved common faults of the rigid box making machines on current market, like bubble, scratch, loose side, low turn-in depth, uneven gluing, inaccuracy positioning, time-consuming mold change, etc.
Features
1. Intelligent adjusting, quick mold changing. Suitable for produce various model of rigid boxes in one day.
2. Adopt servo optical fiber positioning system, high positioning accuracy (±0.2mm)
3. With memory function, can recall previously produced box parameters to start producing reducing adjustment time.
4. When forming, the robot arm holds the box up; ensure not to scratch the wrapping paper.
5. Can make ear-to-ear and ear-cross-ear folding box, like iPhone boxes etc.
6. Can make some irregular shape boxes, like high-low boxes bevel boxes, trapezoidal boxes, etc.
7. Max turn in depth is high to 100mm.
8. Optional device: Glue viscosity tester, Splicing board box making machine, Automatic bubble pressing machine,
Notched cardboard glue spraying machine.
Parameters
| Specifications: | |
| Paper size | W: 95 - 600mm |
| L: 120 - 880mm | |
| Paper thickness | 80-300g/m2 |
| Max. ear cross ear folding size | 120mm |
| Cardboard thickness | 1 - 3mm |
| Finished box size (W*L*H) | L: 100 - 400mm |
| W: 60 - 400mm | |
| H: 15 - 120mm | |
| Turn-in paper size | 7 - 110mm |
| Production speed | 1 time folding 20 - 30pcs/min |
| 2 time folding 16 - 25pcs/min | |
| 3 time folding 14 - 18pcs/min | |
| 4 time folding 12 - 16pcs/min | |
| Positioning accuracy | ±0.2mm |
| Power Supply | 380V/50Hz/3phases |
| Constant power | 30KW |
| Air pressure | 25m3, 0.6 - 0.8MPa |
| Glue tank volume | 50KG |
| Machine weight | 6500KG |
| Max. paper stacking height | 300mm |
| Max. cardboard stacking height | 900mm |
| Machine dimension | L7000 * W4200 * H3400mm |
Detailed Images
1. Feeder control by servo motor
2. Big diameter pneumatic vacuum control valves
3. The rubber pressure roller for the feeding-in paper
4. Antistatic platform for paper
5. The automatic lifting function for feeding stack
6. Feeding stack auto stop when top paper in position Feeder control by servo motor
