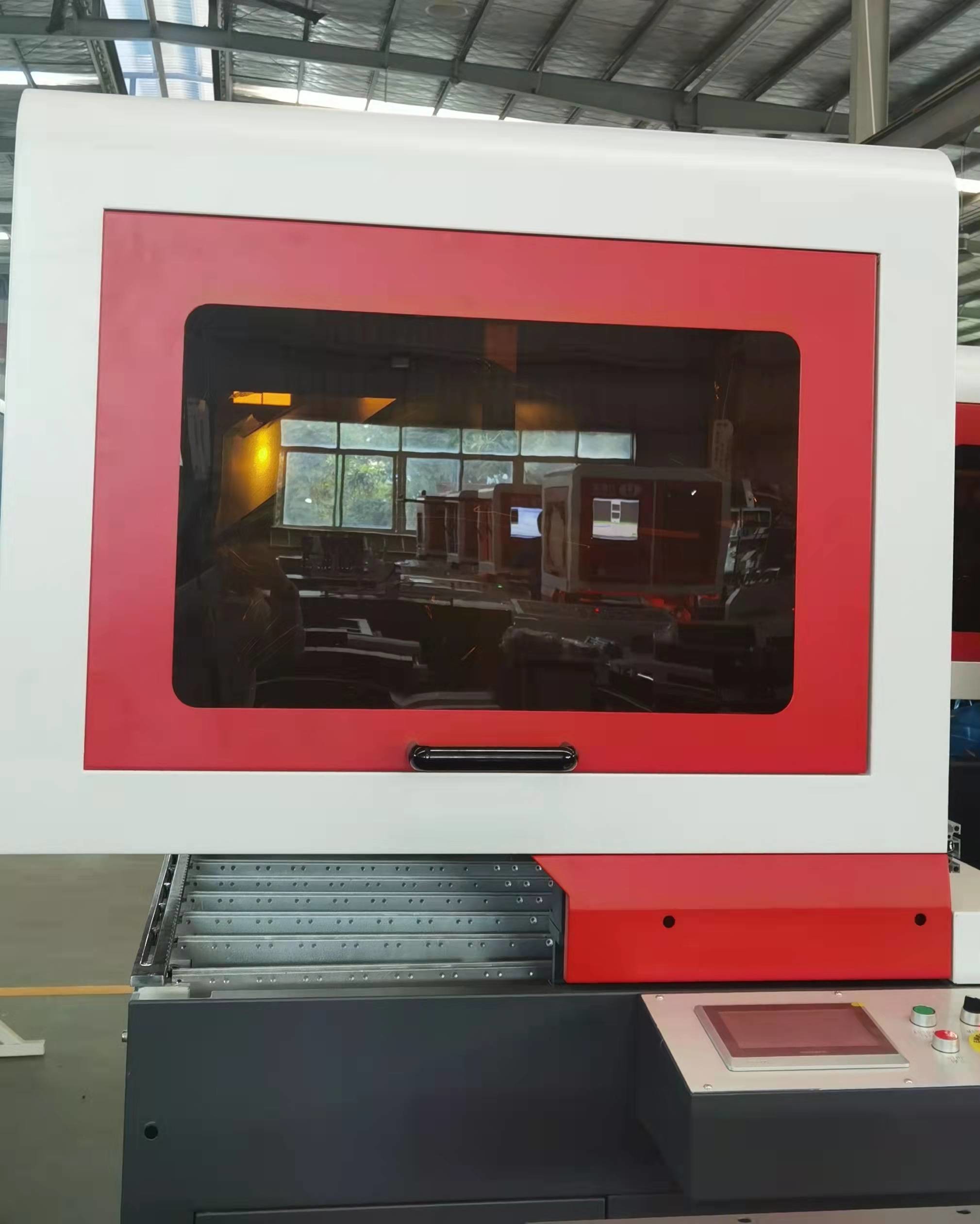

LY-485C Visual positioning machine for case making and luxury box making
A series of LY-485 products, The parts of Feida feeding, gluing and conveyor belt use independent servo drive. The positioning part adopts YAMAHA robot arm, and camera to visually position the inner box, which can realize high accuracy in the rigid box, bookcase , drawer box,irregular shape boxes. It is suitable for a variety of high-quality gift box which need gluing ,like phone box, cosmetic box, Jewelry box, watch box, wine box, cigarette box, etc.
1. It adopts high speed automatic paper feeding system, which is controlled pneumatically, and its structures simple and reasonable.
2. New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding, and the copper scraper is more durable.
3. Paper feeding and positioning system adopts imported high precision photoelectric control device to make the paper and cardboard location more accurate.
4. It adopts PLC control, simple operation, the troubles are displayed directly on the HMI which helps the operator easily solve the problem.
| specification | |
| paper size | L: 180-850mm |
| W:95-600mm | |
| Finished box size | L:45-600mm |
| W:45-400mm | |
| H:10-120mm | |
| Case maker finished box size | L:100-800mm |
| W:80-400mm | |
| Paper thickness | 80-300g/m2 |
| Positioning Accuracy | ±0.1mm |
| Production Capacity | 25-35pcs /min |
| Max paper stacking height | 400mm |
| Fold depth | 10-100mm |
| Lash length | 15-120mm |
| Paper thickness | 1-3mm |
| Air Pressure | 0.6-0.8MPa |
| Glue tank volume | 50kg |
| power supply | 380V/50Hz/3Phases |
| Constant power | 24KW |
| Machine weight | 1500kgs |
| Machine size | L8000*W3800*H2400mm |
