Place of Origin:
China
Brand Name:
Lishunyuan
Model Number:
LY-800C

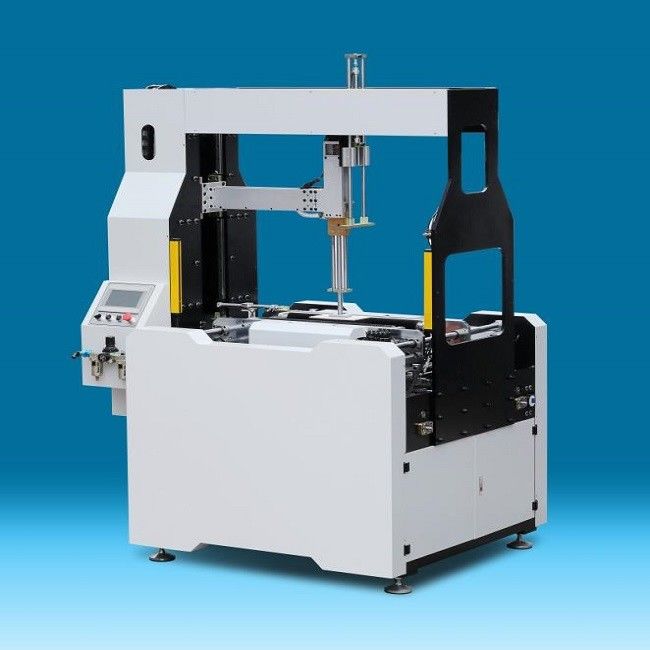

2020 Year Popular Intelligent Fully Automatic rigid box forming machine for paper products and the gift box
This machine adopts PLC programming technology, touch screen man-machine interface, parameter setting, fault display and fault stopping function, which adopts pneumatic double servo and step control. This machine is different from the traditional molding machine: the length, width and height of the products can be input without changing the molding board and the spatula. The machine can adjust the mold automatically, which greatly saves the molding time and reduces the failure rate. Applicable to all kinds of gift boxes, boxes and other boxes into the molding of blisters, mobile phone boxes, shoes boxes and other boxes of the best choice.
This machine is different from the traditional molding machine is: don’t have to change in the process of operating pressure foam board, shovel knife input dimensions size machine can automatically, greatly save the time of the mould, reduce the failure rate can be fold side, folding and molding pressure in tandem.
Semi forming machine for rigid box. This machine is the programming technology of PLC, touch screen man-machine interface, parameter setting and fault display, fault stop function, to use pneumatic double servo and stepper control, low failure rate, high precision.
Suitable for all kinds of gift box, packing box and so on box type pressure molding fold into the bubble, the phone box, shoe box, etc. All kinds of heaven and earth cover box of the best choice. Has small volume, easy to operate, fast speed, less artificial,etc.
Features:
1, Production speed:16-22pcs/min
2, Small size, easy to operate, fast speed, less artificial features.
3, All control parts of this machine adopt international high-end brand, low fault rate, high precision and complete automation of production process.
4, Don’t need to change the molding board and spatula, greatly saves the molding time and reduces the failure rate.
| Technical Parameters | |
| Voltage | 220V |
| Power | 1.5KW |
| Speed | 16-22pcs/min |
| Max box size(L*W*H) | 400*400*90mm |
| Min box size(L*W*H) | 45*45*12mm |
| Machine Weight | 900kg |
| Machine Dimension | 1100*1400*1951mm |
