Automatic Positioning Module For Packing Rigid Boxes Rigid Box, Cylindrical Box, Drawer Box

Automatic Positioning Module For Packing Rigid Boxes Rigid Box, Cylindrical Box, Drawer Box

18KW Automatic Positioning Machine

35pcs/min Automatic Positioning Machine

Place of Origin:

China

Brand Name:

Lishunyuan

Model Number:

LY-600CCD

Contact Us
Request A Quote
Product Details
Applicable Industrial:
Manufacturing Plant,Printing Shops
Local Service:
India,Malasia,Korea
Condition:
New
Processing Type:
Positioning Machine
Brand Name:
Lishunyuan
Power(W):
18KW
After-sales Service:
Free Sparts,Video Technical Support,Field Installation
Marketing Type:
New
Core Component:
PLC,Motor
Highlight:

18KW Automatic Positioning Machine

,

35pcs/min Automatic Positioning Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiate
Packaging Details
Pack in Film and wooden case
Delivery Time
15-20days
Payment Terms
L/C, T/T
Supply Ability
20 sets per month
Product Description

Automatic Positioning Module For Packing Rigid Boxes

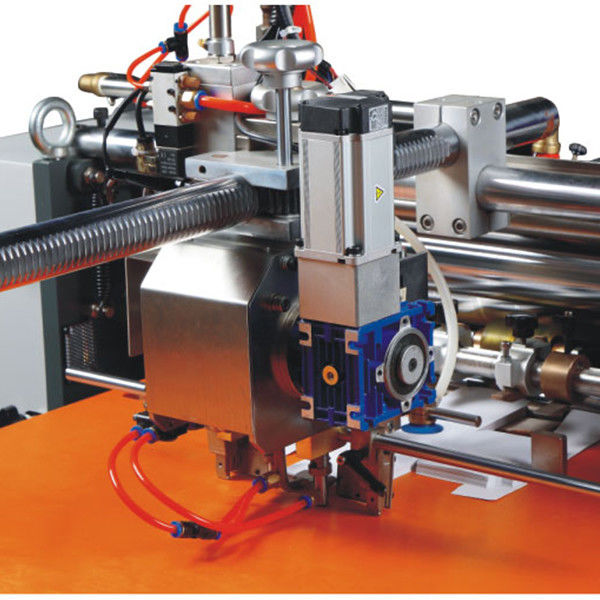

Automatic positioning module for packing box of heaven and earth cover in 2020, the parts of Feida feeding, gluing and conveyor belt use independent servo drive. The positioning part adopts YAMAHA robot arm and Japanese camera to visually position the inner box which can realize high-accuracy in different kind of box ( rigid box, cylindrical box,octagon box, drawer box etc.). It is suitable for making high quality boxes.



Specifications:
Paper Size L: 180-880mm
W:95-600mm
Production Capacity ≤35pcs/min
Second time positioning accuracy ±0.1mm
Paper thickness 80-300g/m2
Max.paper stacking height 400mm
Cardboard thickness 1-3mm
Glue tank volume 50kg
Machine weight 1500kg
Air pressure 0.6-0.8MPa
Power Supply 380V/50Hz/3phases
Constant power 18KW
Machine dimension L7500*W1500*H2000mm



Product features:

  • Using two industrial cameras with five mega pixels, and YAMAHA robot arm to position, high positioning accuracy±0.1mm
  • High-speed production, rigid box production rate ≤35pcs/min.Forming speed up to 25-35pcs / min.
  • Using independent automatic control system, transfer machine time is short and fast transfer version.
  • Feeding stably, not easy to feed double sheets, reduce the product rejection rate.
  • The independent gluing & positioning module, can optionally match with edge mounting machine, splicing board box making machine, pneumatic machine, etc.
  • The independent gluing & positioning module, can optionally match with edge mounting machine, splicing board box making machine, pneumatic machine, etc.According to the product features & cost-effective,you can choose the most suitable configuration,it's entirely up to you to use either LY-600A fiber servo positioning system or LY-600B Visual robot arm positioning system.

Packing And Delivery:



Automatic Positioning Module For Packing Rigid Boxes  Rigid Box, Cylindrical Box, Drawer Box 0Automatic Positioning Module For Packing Rigid Boxes  Rigid Box, Cylindrical Box, Drawer Box 1



Company Introduction:


LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province, and has a modern standard workshops of 20000 square meters, after 18 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.

Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.

Automatic Positioning Module For Packing Rigid Boxes  Rigid Box, Cylindrical Box, Drawer Box 2




Automatic Positioning Module For Packing Rigid Boxes  Rigid Box, Cylindrical Box, Drawer Box 3


Our Services & Strength

We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the box machine and providing extensive after sales service.Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each individual client’s requirements.
