Automatic Visual Positioning Machine For Rigid Boxes Speed up to 25-35pcs / min.

35pcs/Min Automatic Visual Positioning Machine

PLC Control Automatic Visual Positioning Machine

Place of Origin:

China

Brand Name:

Lishunyuan

Model Number:

LY-600CCD

Request A Quote

Automatic Visual Positioning Machine For Rigid Boxes Speed up to 25-35pcs / min.

Product Details

Condition:

New

Core Components:

PLC

Marketing Type:

Hot Product 2019

Speed:

≤35pcs/min

Warranty:

1 Year

Function:

Positioning Rigid Boxes

Voltage:

380V

Weight:

1500KGS

Dimentions:

L7500*W1500*H2000mm

Highlight:

35pcs/Min Automatic Visual Positioning Machine

PLC Control Automatic Visual Positioning Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 38000 per set

Packaging Details

Film and plywood crate.

Delivery Time

10days

Payment Terms

T/T, L/C

Supply Ability

20sets/month

Multifunctional Double Visual automatic positioning machine Speed 30-40 Pcs

Get Best Price

Video

Visual Positioning Machine For Case Making Book Cover Box Lining Package Box Maker Mchine

Get Best Price

Video

Visual Automatic Positioning Machine With Double Positioning speed 20-40 pcs/min

Get Best Price

Electric Automatic Visual Positioning Machine 11KW Power 50Hz

Get Best Price

13798714062

vanessa@dglyjx.com

86-769-23174590

Contact Now

Product Description

Rigid Box Visual Positioning Module is suitable for making high-quality boxes

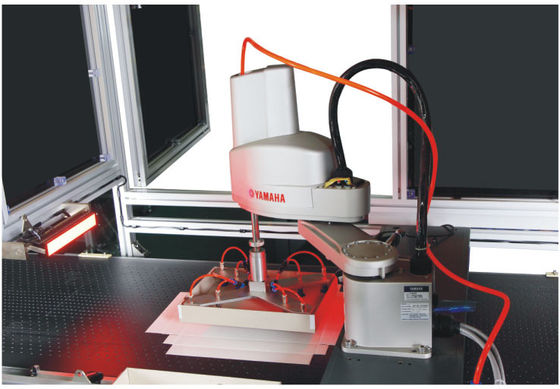

LY-600CCD visual positioning module can adopts LY-2012 automatic intelligent box machine structure design. The feeder feeding,
gluing and conveyor belt use independent servo drive. The positioning partadoptsYAMAHArobotarm,andcameraimagingtoposition,thatcan
realize high-accuracy in different kind of box(like rigid box,cylindrical box,Octagonal box,folding box,wine box,etc.).It is suitable for making
high-qualitygiftbox.

Specification

Paper size	L 180-880mm
Paper size	W 95-600mm
Production speed	≤35pcs/min
Second time positioning accuracy	±0.1mm
Paper thickness	80-300g/m2
Max.paper stacking height	400mm
Cardboard thickness	1-3mm
Glue tank capability	50KG
Machine weight	1500KG
Air pressure	0.6-0.8MPa
Constant power	18KW
Machine dimension	L7500W1500H2000mm

Product Features

1, High-speed production , rigid box speed up to 25-35pcs / min.

2, Using independent man-machine control system, transfer machine time is short, fast transfer version.
3, Feeding stably, not easy to feed double sheets, reduce product rejection rate.
4, the independent gluing & positioning module ,can optionally match with edge mounting machine, splicing board box making machine ,pneumatic machine,etc.

Automatic Visual Positioning Machine For Rigid Boxes Speed up to 25-35pcs / min. 0
