27pcs/Min 24KW Paper Box Manufacturing Machine

Automatic High Speed Rigid Box Manufacturing Machine For Gift Box Making Machine In Paper Box Making Machinery

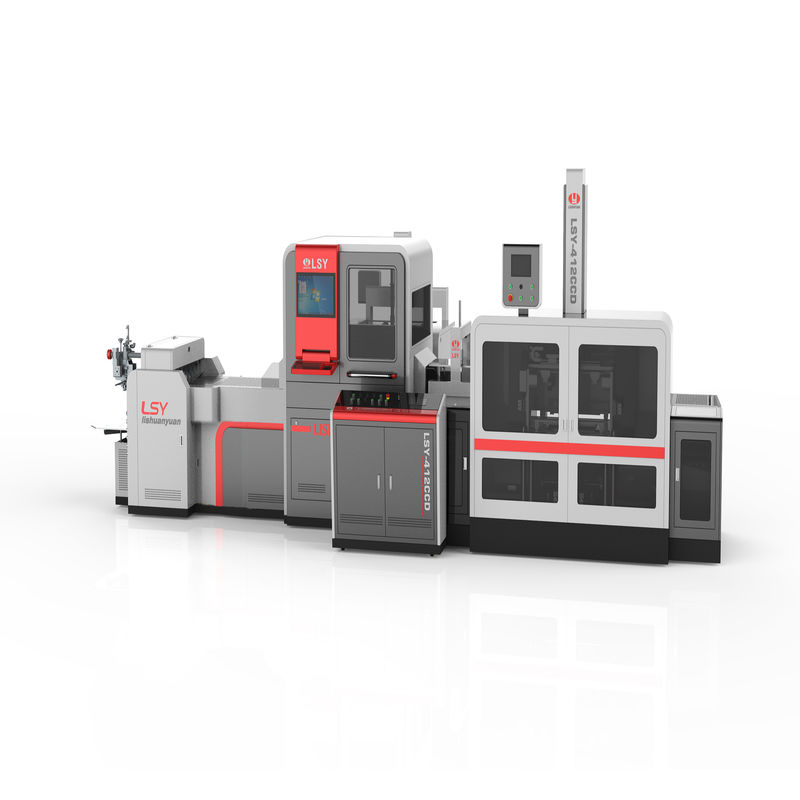

LY-412CCD Automatic Rigid Box Manufacturing Machine combines the technology of visual positioning system, automatic edge mounting, high-speed rigid box forming. All these functions consist the fully automatic visual positioning box machine. It adopts visual positioning technology for holding, wrapping, folding, and forming. This product has the advantage of high production rate, high accuracy, and high quality. It is suitable for making high requirement rigid boxes, such as cell phone boxes, jewelry boxes, cosmetic boxes, and gift boxes, etc.

The LY-412CCD has three independent modules, which can be flexibly disassembled and assembled to meet different product demands.

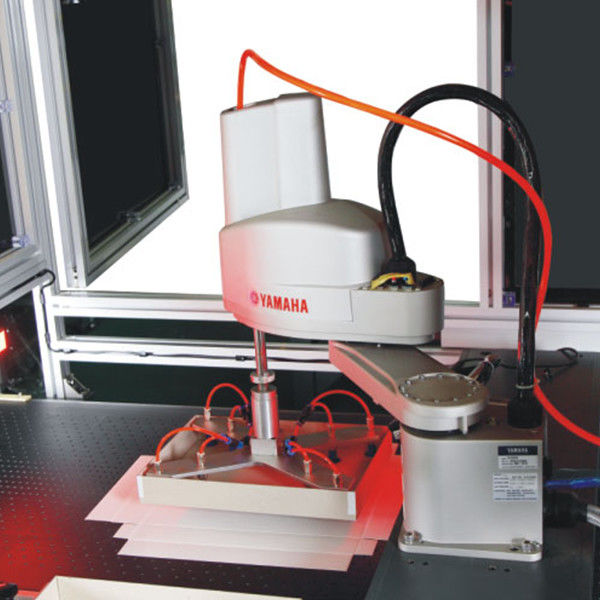

Adopt the technology of two industrial cameras with 5 megapixels, and YAMAHA robot arm to position, high positioning accuracy (±0.1mm).

High-speed and efficient forming, speed up to 25-35pcs / min.

Deep folding, max turn-in depth is up to 100mm.

Combine independent man-machine control system, less time consuming on machine adjustment, fast transfer version.

Can be infinitely extended to produce different products, and reduce the investment waste on new machine purchasing.

Product features:

1. Flexibly disassembled function.

2. Two industrial cameras with 5 megapixels,high positioning accuracy (±0.1mm)

3. Forming speed up to 25-35pcs / min.

4. Max turn-in depth is up to 100mm.

5. Independent man-machine control system.

6. Infinitely extended function.

Specifications:
Paper Size L: 120-760mm
W:95-600mm
Finished box size L:70-400mm
W:60-350mm
H:15-110mm
Positioning accuracy ±0.1mm
Production Capacity 25-30pcs/min
Max.paper stacking height 430mm
Fold depth 10-100mm
Lash length 15-120mm
Paper thickness 80-300g/m2
Cardboard thickness 1-3mm
Air pressure 0.6-0.8MPa
Glue tank volume 50kg
Power Supply 380V/50Hz/3phases
Constant power 24KW
Machine size L8000*W3800*H2400mm
