Guangdong Lishunyuan Intelligent Automation Co., Ltd.
New Product ：Double Feeding and Prositioning Machine
Intelligent High Speed Fully Automatic 2 In 1 Rigid Box Making Machine
Contact person: Aureal Wei Phone: +8613702379158 WhatsAPP: +8613480434844
| Place of Origin: | China |
|---|---|
| Brand Name: | Lishunyuan |
| Certification: | CE |
| Model Number: | LY- 412CCD |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiated price |
| Packaging Details: | Plywood crate |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
| Condition: | New | Automation: | Automatic |
|---|---|---|---|
| Machine Type: | Automatic Positioning Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | ||
| High Light: | automatic visual positioning machine,box making equipment,Advanced Automatic Positioning Machine |
||
Hot-selling Automatic visual positioning box Production Line
Description
Hot-selling Automatic visual positioning box Production Line is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as jewelry boxes, gift boxes, cosmetic boxes, and other rigid high-end boxes. the maximum length 400mm, maximum width 350mm which covers a larger range compared to the previous machines and meets better the market.
Features
1. Three independent modules can be flexibly split and combined to meet different product requirements.
2. Two 5-megapixel industrial cameras and YAMAHA manipulator are adopted for positioning, with positioning accuracy of ±0.1mm;
3, high speed molding, speed up to 25-35 PCS /min.
4. The folding depth is deep and can be folded into 100mm
5, the use of an independent man-machine control system, the machine adjustment time is short, fast version.
6, the positioning machine can be infinitely extended to do a variety of different products, reducing the risk of repeated investment of users to buy the machine.
Parameters
| Specifications: | |
| Paper Size | W:95 - 600mm |
| L: 180-835mm | |
| Paper thickness | 80-300g/m2 |
| Max.paper stacking height | 800mm |
| Cardboard thickness | 1-3mm |
| Finished box size W*L*H | L:70-400mm |
| W:60-350mm | |
| H:15-120mm | |
| Ear overlapping size | 7-100mm |
| Production Capacity | 20-30pcs/min |
| Precision | ±0.1mm |
| Power Supply | 380V/50Hz |
| Max power | 15kw/380v |
| Air pressure | 0.5-0.7mpa/320NL/min |
| Glue tank volume | 30kg |
| Machine weight | 7500kg |
| Machine size | L8000*W3800*H2400mm |
1. Feeder control by servo motor
2. Big diameter pneumatic vacuum control valves
3. The rubber pressure roller for the feeding-in paper
4. Antistatic platform for paper
5. The automatic lifting function for feeding stack
6. Feeding stack auto stop when top paper in position Feeder control by servo motor
1. Japan Yamaha Robot Arm for spotting the grey board box
2. Germany camera with Japan Lens in 10 million Pixel tracing system

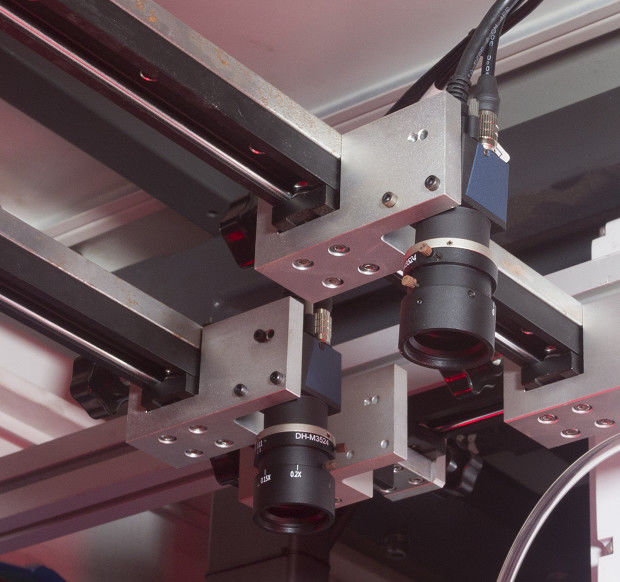

3. Double Camera with XY Spool for positioning.
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
