LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function

LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function

box making equipment

industrial box making machine

Two Forming Heads Box Making Equipment

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

CE

Model Number:

LY- 412CCD

Contact Us
Request A Quote
Product Details
Condition:
New
Automation:
Automatic
Machine Type:
Automatic Positioning Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Highlight:

box making equipment

,

industrial box making machine

,

Two Forming Heads Box Making Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
US Dollar 120000-138000 per set
Packaging Details
Plywood crate
Delivery Time
30 days
Payment Terms
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 sets per month
Product Description

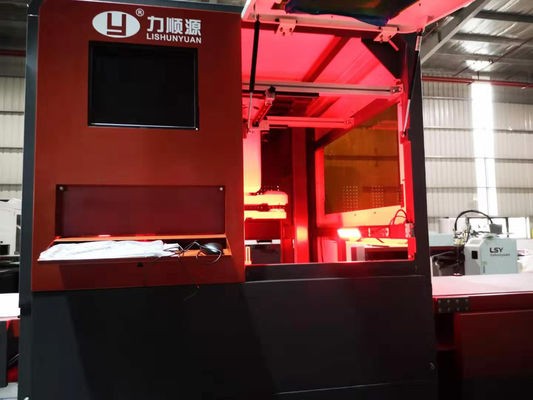

LY-412CCD Automatic visual positioning box making machine





Description



      LY-412CCD Automatic High Speed Rigid Box Making Machine is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as jewelry boxes, gift boxes, cosmetic boxes, and other rigid high-end boxes. the maximum length 400mm, maximum width 350mm which covers a larger range compared to the previous machines and meets better the market.



LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function 0



Features



1. Three independent modules can be flexibly split and combined to meet different product requirements.

2. Two 5-megapixel industrial cameras and YAMAHA manipulator are adopted for positioning, with positioning accuracy of ±0.1mm;

3, high speed molding, speed up to 25-35 PCS /min.

4. The folding depth is deep and can be folded into 100mm

5, the use of an independent man-machine control system, the machine adjustment time is short, fast version.

6, the positioning machine can be infinitely extended to do a variety of different products, reducing the risk of repeated investment of users to buy the machine.





Parameters

Specifications:
Paper Size W:95 - 600mm
  L: 180-835mm
Paper thickness 80-300g/m2
Max.paper stacking height 800mm
Cardboard thickness 1-3mm
Finished box size W*L*H L:70-400mm
  W:60-350mm
  H:15-120mm
Ear overlapping size 7-100mm
Production Capacity 20-30pcs/min
Precision ±0.1mm
Power Supply 380V/50Hz
Max power 15kw/380v
Air pressure 0.5-0.7mpa/320NL/min
Glue tank volume 30kg
Machine weight 7500kg
Machine size L8000*W3800*H2400mm


Sample Boxes

LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function 1
Detailed Images

Feeder
    LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function 2  LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function 3

1. Feeder control by servo motor
2. Big diameter pneumatic vacuum control valves
3. The rubber pressure roller for the feeding-in paper
4. Antistatic platform for paper
5. The automatic lifting function for feeding stack
6. Feeding stack auto stop when top paper in position Feeder control by servo motor



LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function 4   LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function 5

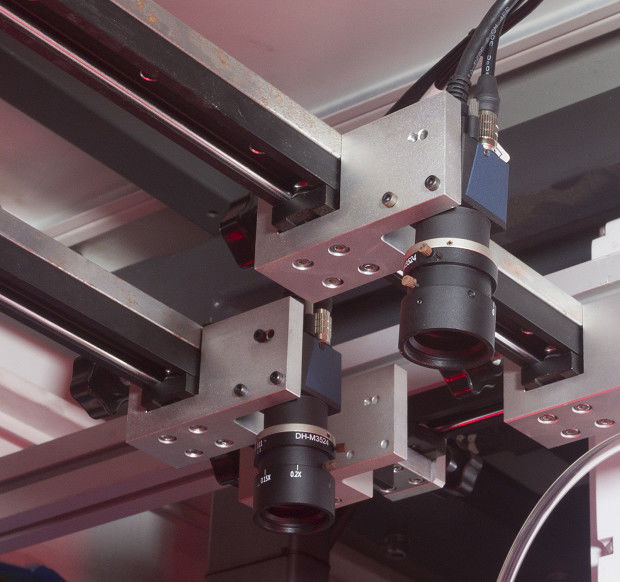

1. Japan Yamaha Robot Arm for spotting the grey board box

2. Germany camera with Japan Lens in 10 million Pixel tracing system

3. Double Camera with XY Spool for positioning.
