Place of Origin:
China
Brand Name:
Lishunyuan
Certification:
CE
Model Number:
LY- 412CCD

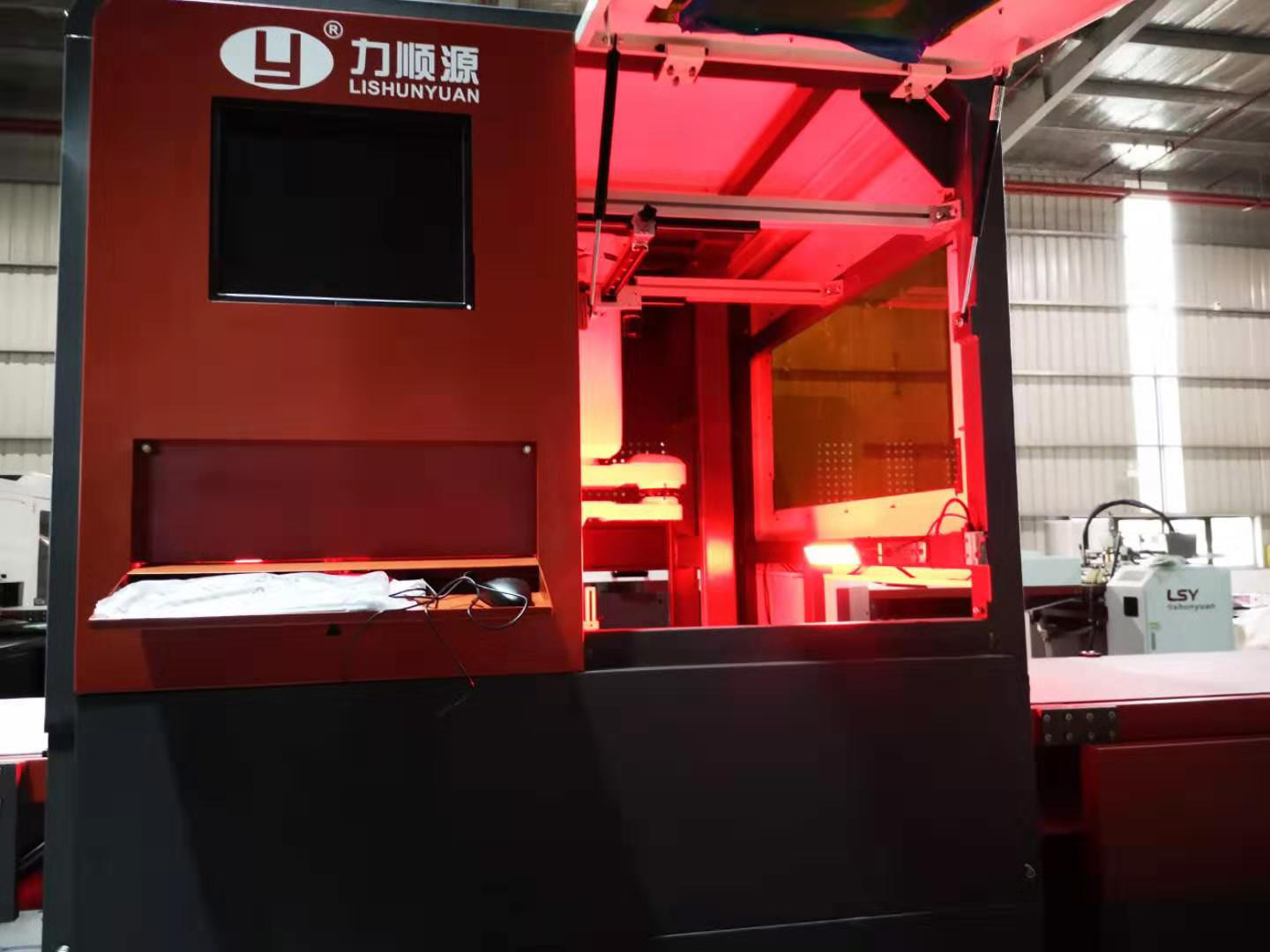

Automatic visual positioning box making machine
Description
LY-412CCD Automatic visual positioning box making machine, the use of visual positioning mainframe, automatic corner sticking machine, rigid box high-speed molding unit synthesis automatic visual positioning box making machine. The machine adopts visual position system, touch screen man-machine interface, realize feeding, gluing, embryo box molding, positioning, boxes, fold the side, and fold into the forming operation is completed a one-time, is a high speed, high precision, high quality and box system box machine, can be applied to mobile phone boxes, jewelry boxes, cosmetics boxes, gift boxes.
Features
1. Three independent modules can be flexibly split and combined to meet different product requirements.
2. Two 5-megapixel industrial cameras and YAMAHA manipulator are adopted for positioning, with positioning accuracy of ±0.1mm;
3, high speed molding, speed up to 25-35 PCS /min.
4. The folding depth is deep and can be folded into 100mm
5, the use of an independent man-machine control system, the machine adjustment time is short, fast version.
6, the positioning machine can be infinitely extended to do a variety of different products, reducing the risk of repeated investment of users to buy the machine.
Parameters
| Paper Size(L*W) |
L 120-835 mm W 95-600 mm |
| Cardboard Size(L*W*H) |
L 55-400 mm W 55-350 mm H 10-120 mm |
| Finished Box Size(L*W*H) |
L 55-400 mm W 55-350 mm H 10-120 mm |
| Production speed | 25-35pcs/min |
| Positioning accuracy | ±0.05mm |
| Folding depth | 7-100mm |
| Paper thickness | 80-300g/㎡ |
| Paper stacking height | 430mm |
| Grey board thickness | 1-3mm |
| Paper supply | 380V/50Hz/3phases |
| Glue tank volume | 50KW |
| Rated Power | 10KW |
| Overall size of equipment | L8000xW4000xH3300mm |
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
