A
The dual-channel system handles paper picking and laying, supports simultaneous two-color stamping and sammeld ruck operations. Flat, 3D stamping and embossing can all be realized using interchangeable molds.
B
This machine integrates front stop, dual side gauges and laser sensors to deliver high-precision positioning within ±0.02mm. It offers a large hot stamping area, with a maximum format of 720mm×460mm.
C
Fully automatic hot foil stamping is servo-driven, providing a pressure of approximately 4.2T/cm² with stepless adjustment. The offset design between the closing table and pressure table allows for fast and simple plate changes, completed in under 20 minutes.
D
Four independently controllable temperature zones are provided, adjustable within 60–150°C to accommodate the stamping requirements of various materials.
E
The conveyor belt features variable-frequency suction control to suit different paper grammages, fulfilling the hot stamping needs of diverse packaging papers. It is widely used for gift boxes, wine boxes, cosmetic boxes, apparel boxes, jewelry boxes and similar products. The minimum applicable paper weight is 80 grams.
F
Sensors are fitted to detect double feeding or missing paper feeding. Finished stamped sheets are automatically collected by the machine.
G
CAM-based paper feeding is employed, supporting a maximum stacking height of 300mm and an operating speed of around 15–25 pieces per minute.
H
The closing table utilizes a jack-up, crankshaft and dual-force linkage mechanism.





Specification of Hot Foiling Stamping Machine



Details:



Machine appearance drawing




The conveyor belt implements variable frequency suction adjustment for different grams of paper to meet all kinds of package paper hot stamping needs. And configure sensor to test feed double or no feed paper.




The machine with front stop, double side gauge and laser sensor for a high precision positioning,±0.02mm. Large hot stamping area, 720mm*460mm.



Four temperature zones, all can be adjusted, so that can meet different materials' stamping needs. (60-150 degrees)



3D hot foiling stamping effect picture

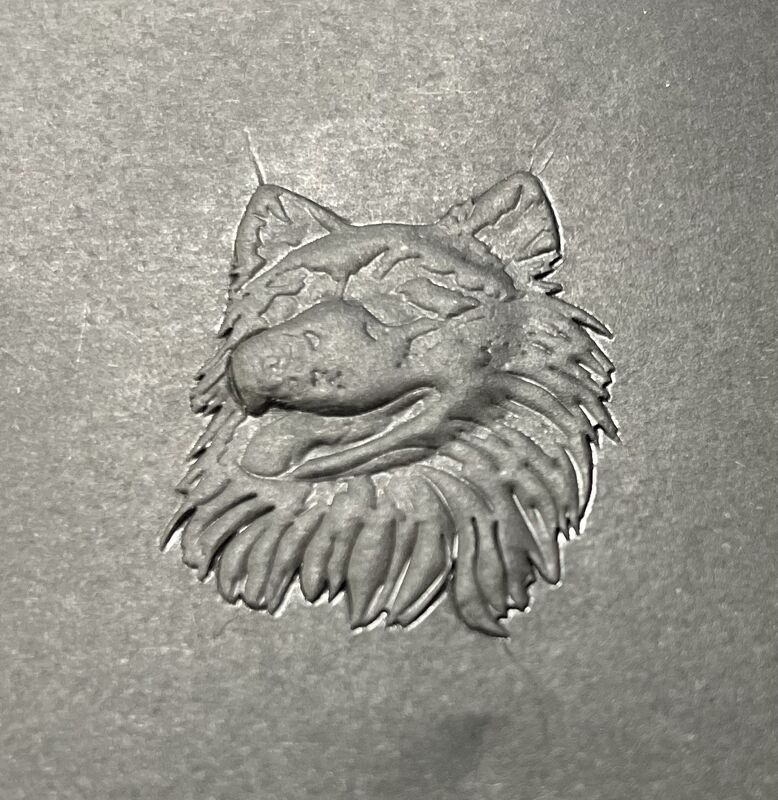

3D embossment effect picture



Flat hot foiling stamping effect picture



Color register


Company Introduction



Quality After-sales Service



1. Before delivery, customer can arrange personnel to train in our company.



2. We will send our engineer to the buyer's factory, but the buyer should bear all the charges, like the air tickets, food,visa and all local charges.



3. We provide 15 days of training service for free of charge.



4. 24 hours service online!



Certificate
