Place of Origin:
China
Brand Name:
Lishunyuan
Model Number:
LY-HB3000CQ
Video
Video
|
Paper size (A*B) |
L: 120-700mm
|
L: 120-700mm
|
|
W: 60-370mm
|
W: 60-600mm
|
|
|
Paper thickness
|
80-300g/m2
|
|
|
Grey board thickness
|
1-3mm
|
|
|
Finished box size(W*L*H) |
L: 45-350mm
|
L: 45-350mm
|
|
W: 45-250mm
|
W: 45-250mm
|
|
|
H: 12-120mm
|
H: 12-120mm
|
|
|
The box size shall be within the dimensions of the paper & the grey board
|
||
|
Positioning accuracy
|
±0.05mm
|
|
|
Production speed
|
50 pcs/min(double)
|
25pcs/min(single)
|
|
Power
|
26KW
|
|
|
Paper stacking Height
|
800mm
|
|
|
Air pressure
|
0.5-0.7MPa
|
|
|
Power Supply
|
380V/50Hz
|
|
|
Machine weight
|
6200kg
|
|
|
Machine size
|
L10000*W6000*H3500mm
|
|

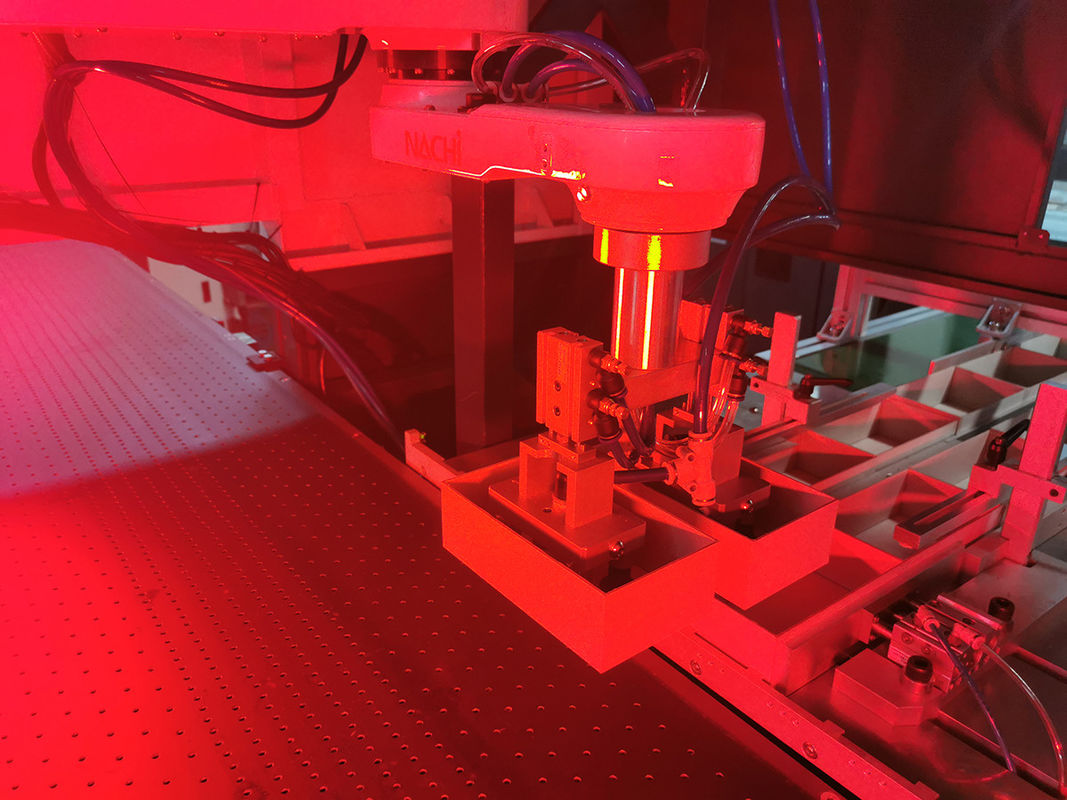

1.The equipment adopts high-precision visual positioning parts with the accuracy of ±0.05mm.
2.The whole equipment uses intelligent PLC control and features in simple operation and friendly human-machine interface.
3.This equipment is suitable for the production of mobile phone boxes,cosmetics boxes,jewelry boxes,moon cake boxes,tea boxes and other boxes.
4.The equipment can produce lid and tray at the same time,saving space.The production balance rate of rigid boxes reaches 100%.
5.When one of the handpiece fails,the other side can produce normally.
