Place of Origin:
China
Brand Name:
Lishunyuan
Model Number:
LY-HB1500CJ

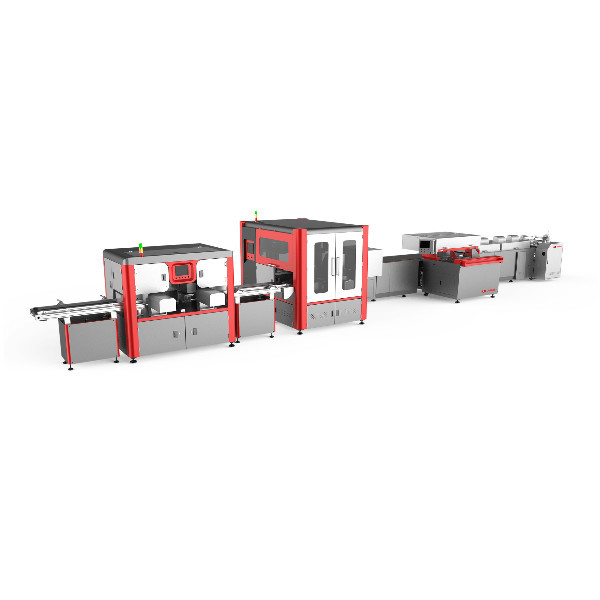

Intelligent High-Speed Wine Box Making Line Easy Operation
New Design Full Automatic High Speed Intelligent Wine Drawer Box Making Machine is suitable for the production of wine boxes & drawer boxes and so on. Besides, Its appearance is new design which is safer and more beautiful.
|
Paper size
|
W:240-360mm
|
|
L:380-660mm
|
|
|
Paper thickness
|
157-300g/m2
|
|
Grey board thickness
|
1-3mm
|
|
Cardboard size |
W:200-320mm
|
|
L:360-640mm
|
|
|
Finished box size W*L*H |
W:90-160mm
|
|
L:90-160mm
|
|
|
H:200-320mm
|
|
|
Edge-wrapping size
|
15-30mm
|
|
Positioning accuracy |
Visual positioning accuracy:±0.1mm
|
|
optical fiber positioning accuracy:±0.3mm
|
|
|
Aligning accuracy
|
±0.5mm
|
|
Production speed
|
20-25sheets/min
|
|
Max power
|
24KW
|
|
Max power(with bubble pressing machine)
|
28.5KW
|
|
Air pressure
|
0.5-0.7mpa
|
|
Power Supply
|
380V/50Hz
|
|
Machine weight
|
6200kg
|
|
Machine weight (with bubble pressing machine)
|
8000kg
|
|
Overall size of equipment
|
L10000*W2500*H2100mm
|
|
Overall size of equipment(with bubble pressing machine)
|
L11820*W2500*H2100mm
|
Automation & Informatization & Intelligentization
Q1:How does your factory do regarding quality control?
A2: All machines are doing 24 hours running test to ensure quality.
Q2: How about the payment term?
A3: 30% downpayment and pay the balance before shipment after testing the machine in our factory.
Q3:What about warranty and do the engineers available to overseas?
A4: one year for mechnical parts,half year for electrical parts. if you need our enginner to go to your factory,you need to bear his all costs. such as visa,hotels,eating and lodging at your side.
Q4:What about the service after sale?
A5: we can provide video online service or send enginner to go to your factory to do the trainning if you need.and we have English.
Q5: Do you need agent for overseas?
A6: yes,we need you to be our agent. welcome to contact us.
