Place of Origin:
China
Brand Name:
Lishunyuan
Certification:
CE
Model Number:
LY-HB2500CK
2020 Hot Selling High Speed Intelligent Jewelry Rigid Box Making Line is widely suitable for the production of all kinds of rigid boxes,
including cosmetic boxes, jewelry boxes,etc. It's double-head forming, and the production speed is fast, greatly increase the production output, which meets the needs of customers.
|
Paper Size |
W:95 - 600mm
|
|
L: 120-880mm
|
|
|
Paper thickness
|
80-300g/m2
|
|
Max.paper stacking height
|
800mm
|
|
Cardboard thickness
|
1-3mm
|
|
Finished box size W*L*H
|
L:45-350mm
|
|
W:45-250mm
|
|
|
H:15-120mm
|
|
|
Ear overlapping size
|
15-120mm
|
|
Folding size
|
7-100mm
|
|
Production speed
|
35-45pcs/min
|
|
Setting time
|
10-15mins
|
|
Precision
|
±0.1mm
|
|
Power Supply
|
380V/50Hz
|
|
Max power
|
37KW
|
|
Max power(with bubble pressing machine)
|
43KW
|
|
Air pressure
|
0.5-0.7mpa/320NL/min
|
|
Glue tank volume
|
30kg
|
|
Machine weight
|
7500kg
|
|
Machine weight (with bubble pressing machine)
|
9100kg
|
|
Machine size
|
L8000*W4000*H3300mm
|
|
Machine size (with bubble pressing machine)
|
L11600*W4000*H3300mm
|
Product Features
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
Feeder
1. Feeder control by servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
Positioning

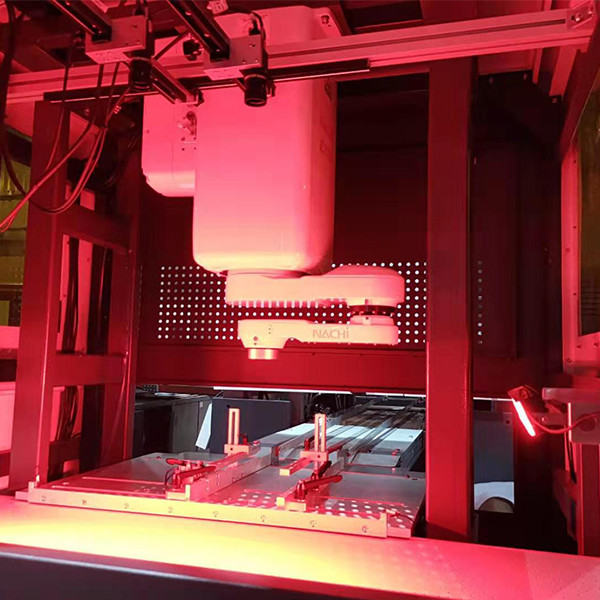

1 . SCARA (Selective Compliance Nachi Robot Arm) for spotting the grey board box
2. Germany Balser camera with Japan Kowa Lens in 10 million Pixel tracing system
3. Double Camera with XY Spool for positioning.
Forming Part & Bubble Pressing
